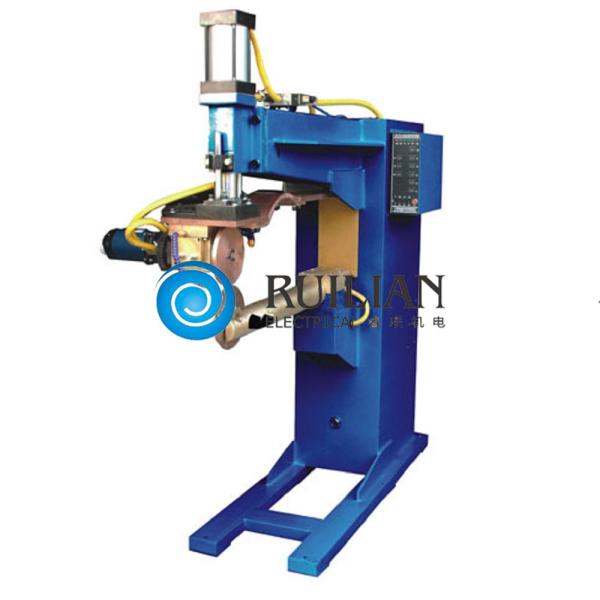

5m-10m/Min Straight Seam Welding Machine
5m-10m/Min Straight Seam Welding Machine
Specifications
Brand Name :
RUILIAN
Model Number :
RFB-100B
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Semi-automatic longitudinal seam welding machine for steel drum Straight Seam Welding Machine
Welding diameter :
Ø300~Ø500mm
Types of Welded Sheets :
Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet
Welding height :
≤1000mm
Weld thickness :
Galvanized sheet steel:0.3~1.0mm/Stainless steel sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm
Welding beat :
5~8/min
Welding speed :
5~10m/min
Welding copper wire diameter :
Ø2.0mm
Overlap :
3~6mm
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
Welding power :
100KVA
Description

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum

Welding diameter Ø300~Ø500mm
Types of Welded Sheets

Galvanized sheet steel

Low carbon sheet steel

Stainless steel sheet
Welding height ≤1000mm
Weld thickness Galvanized sheet steel:0.3~1.0mm
　 Stainless steel sheet:0.3~1.0mm
　 Tin Plated Sheet:0.3~1.0mm
Welding beat 5~8/min
Welding speed 5~10m/min
Welding copper wire diameter Ø2.0mm
Overlap 3~6mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
Welding power 100KVA
Net weight 1.5T

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Key words:

Semi-automatic longitudinal seam welding machine for steel drum

Resistance welding

Seam welding

Barrel welding

Sheet metal welding

Resistance welding

Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Semi-automatic longitudinal seam welding machine for steel drum

The RFB-100B semi-automatic quick sewing machine has completely updated the load capacity of the RF-100B-based welding energy and added a number of heavy components. The improved RFB-100B welding machine can make the welding speed more stable when welding thick-walled steel drums over 50 liters and has more prominent features for stainless steel products with high hardness. The RFB-100B semi-automatic air welding machine is used for high-speed welding of 50~200-liter corrugated steel drums in the chemical industry, upgrading to a fully automated platform has enabled the target with heavy components and structures.

5m-10m/Min Straight Seam Welding Machine
