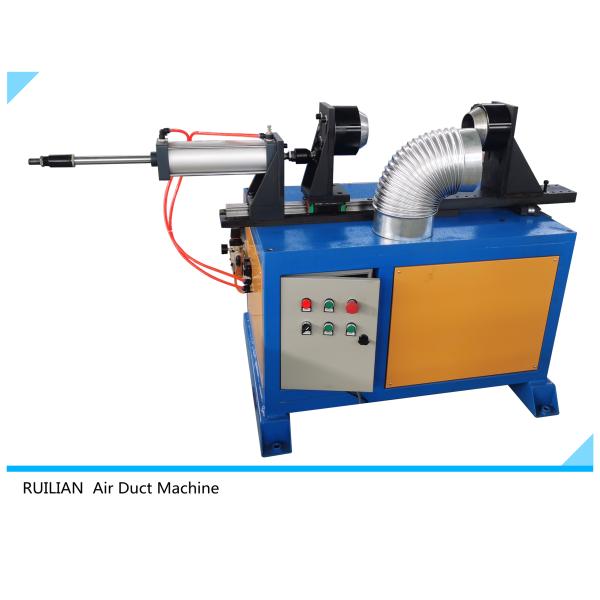

2KVA Bellows Elbow Air Duct Machine
2KVA Bellows Elbow Air Duct Machine
Specifications
Brand Name :
RUILIAN
Model Number :
Corrugated air elbow machine Bellows elbow
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Air Duct Machine Corrugated air elbow machine Bellows elbow
Processing diameter :
Ø100~Ø400mm
Processingplate type :
Galvanized sheet steel/Stainless steel sheet
Processing height :
≤1000mm
Processing thickness :
Galvanized sheet steel:0.2~0.8mm/Stainless steel sheet:0.2~0.8mm
Processingbeat :
5~8/min
Overlap :
0.5~2mm
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
power :
2KVA
Description

Air Duct Machine Corrugated air elbow machine Bellows elbow

Processing diameter Ø100~Ø400mm
Processingplate type

Galvanized sheet steel

Stainless steel sheet
Processing height ≤1000mm
Processing thickness Galvanized sheet steel:0.2~0.8mm
　 Stainless steel sheet:0.2~0.8mm
Processingbeat 5~8/min
Overlap 0.5~2mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
power 2KVA
Net weight 0.5T

Air Duct Machine Corrugated air elbow machine Bellows elbow

Key words

Automatic apron coughing machine

Curved ventilation duct

Plug-in air duct

Metal cold bending

Bellows elbow

Air Duct Machine of Corrugated air elbow machine Bellows elbow

Corrugated air elbow machine

The corrugated air duct elbow machine is a metal sheet cold bending machine for processing angle corrugated air ducts. It is mainly used in conjunction with the corrugated air duct machine. Mainly used in air duct and kitchen appliance manufacturing industry, used in conjunction with straight air duct. With the popularization of lightweight air ducts in the home decoration industry, corrugated air ducts, as an important part of lightweight ventilation ducts, have gradually been recognized and applied by the majority of users, especially in modern kitchen decoration, it has become an indispensable application product.
