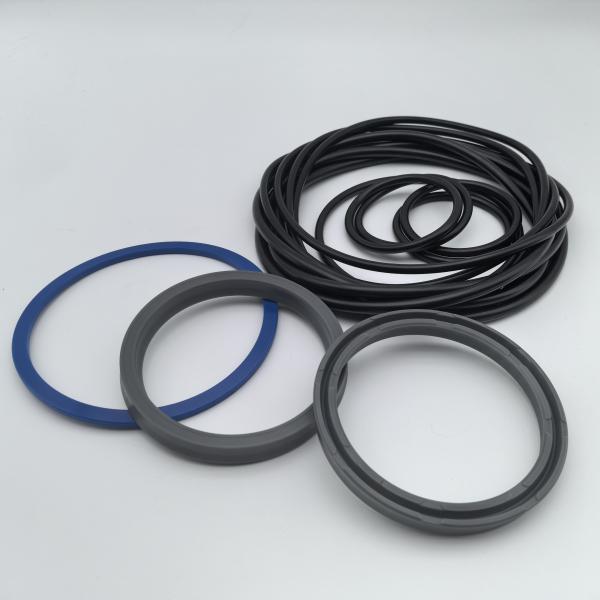

100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
Specifications
Brand Name :
GUKE
Model Number :
Montabert BRH 501
Certification :
ISO90001
Place of Origin :
CN
MOQ :
1 kit
Price :
Negtiation
Payment Terms :
T/T,Western Union,Paypal,Xtransfer
Supply Ability :
200 Kits Per Week
Delivery Time :
3-7 days after payment
Packaging Details :
PP bag inside Carton box outside
Part No :
Montabert BRH 501
Part Name :
Hydrualic Breaker
Material :
PU+PTFE+NBR+NY
Condition :
100% New
OEM :
Accpetable
ODM :
Accpetable
Feature :
High cost performance Heat Resistance Oil Resistance Presure Resistance
Appliion :
Montabert BRH 501 Hydrualic Breaker
Description

Montabert BRH 501 Hydrualic Breaker Seal Kit

The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.

We use high quanlity raw materials from Gemany and Japen.

We also sell other brand of seals such as Parker,SKF,Hallite,PET ,YCC,NAK and so on .

Product Overview
Name: Montabert BRH 501 Hydrualic Breaker Seal Kit
Condition 100% New
Material: PU + PTFE + NY + NBR
Machine Model: Montabert BRH 501
Part Number: Montabert BRH 501
Size: Standard Size Custom Size
Hardness: 92degree
Temparature: -30 Degree To 120 Degree
Feature: Oil Resistance,Heat Resisitance,Pressure resisitant
Certifiion: ISO 9001
Raw Material: HUNTSMAN of German + ZEON of Japan
OEM: Accpetable
vailablity: In Stock
Shipping: Express,By Air,By Sea

100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit

BRH 501 PARTS LIST
Rep Qty Desiqnation Part number
Back Head ass'y,composed of:
1 1 -Back head 53221
3 1 -Nylon washer 18652
4 1 -O'ring 33616
2 1 -Accumulator 22848
5 2 -O'ring to s/n 20214 19856
5 2 -O'ring from s/n 20236 36579
6 8 -Screw 51/2" 24658
8 8 -Spring guide 22894
9 8 -Washer 22573
HP rotating connection ass'y,composed of:
10 1 -Knee part (1"1/4 NPTF) 56047
11 1 -Threaded plug 21292
12 1 -O'ring 6711
13 2 -O'ring 5346
LP rotating connection ass'y,composed of:
10 1 -Knee piece(1"1/4 NPTF) 56047
11 1 -Threaded plug 21292
12 1 -O'ring 6711
13 2 -O'ring 5346
14 1 -Slide BRH 501B&501SB 22974
or 1 -Slide BRH 501C&501SC 22975
17 12-20 -Pressure adjustment shims 21291
15 1 -Spring slide 21289
16 1 -Barrel 21290
18 1 -Spring 18083
Distribution ass'y,composed of:
104 1 -Distribution box 19708
107 1 -Distributor 17678
106 3 -Piston 23062
105 1 -Distribution cover 23061
102 2 -Centering pin 19867
Cylinder ass'y,composed of:
100 1 -Cylinder 28362
108 2 -Lip seal 19698
103 1 -O'ring 19856
Striker ass'y,composed of:
150 1 -Piston BRH 501B&501SB 19703
101 1 -Plunger 19171
150 1 -Piston BRH 501C&501SC 19704
101 1 -Plunger 19170
Front guide ass'y,composed of:
250250 11 Front-Guide (square retaining pins)
Front Guide (round retaining pins)		 2920938939
259 1 O'ring 19856
255 1 Chuck bushing 20944
256 1 Pin 20948
257 2 Split pin 7046
254 4 Plug 7076
252 2 Bolt 22680
251 2 Retaining pin(square) 26130
