BQ5020F Rear Axle Drive Seal For Wheel Loader KOMATSU WA380-3 WA380-6
BQ5020F Rear Axle Drive Seal For Wheel Loader KOMATSU WA380-3 WA380-6
BQ5020F Rear Axle Drive Seal For Wheel Loader KOMATSU WA380-3 WA380-6
BQ5020F Rear Axle Drive Seal For Wheel Loader KOMATSU WA380-3 WA380-6
BQ5020F Rear Axle Drive Seal For Wheel Loader KOMATSU WA380-3 WA380-6
BQ5020F Rear Axle Drive Seal For Wheel Loader KOMATSU WA380-3 WA380-6
Specifications
Brand Name :
SUNCAR
Model Number :
BQ5020F Oil seal
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Sets Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Brand :
SUNCAR
Type :
Oil seal; wheel loader oil seal
OEM number :
BQ5020F
Working medium :
Hydraulic oil, gas,water, etc
Material :
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Features :
Oil resistance;Sealing oil,water-proof; heat-proof
Feature :
High efficiency, Long life;Seal performance
Fits models :
Excavator KOMATSU WA380-3 WA380-6
Fits brand :
KOMATSU
Condition :
100%new, brandnew
Description

BQ5020F Rear Axle Drive Seal for Wheel Loader KOMATSU WA380-3 WA380-6

Description: Rear Axle Drive oil seal for wheel loader

Product name BQ5020F Rear Axle Drive Seal for Wheel Loader KOMATSU WA380-3 WA380-6
Brand SUNCAR
Fit brand KOMATSU
OEM number BQ5020F
AppliC-A-Ted models WA350-3A ; WA380-3 ; WA350-3 KOMATSU
Fit Brand KOMATSU
MOQ Accept trial order
Compatible equipment Wheel loader KOMATSU
Temperature -40°C ~ 250 °C.
Material PU
Material VMQ
Material ACM
Material NBR
Material Rubber
Material PTFE
Material HNBR
Function Dust proof, Shaft seal,high and low temperature resistance
Consist of Dust seal,back-up ring,wear ring,buffer ring,O-ring
Medium Hydraulic oil, anti-fire fluid, water, gas etc
Transport mode By Air, by Sea, by Express ( FedEx , UPS,DHL,TNT etc.), your forwarder
CertifiC-A-Tion ISO9001
Market Those in need

Availability

 In stock
AppliC-A-Tion

KOMATSU excavators;Consturction machinery repair store;Resell store
Color Standard color
Style

Komatsu oil seal
Notes Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity.

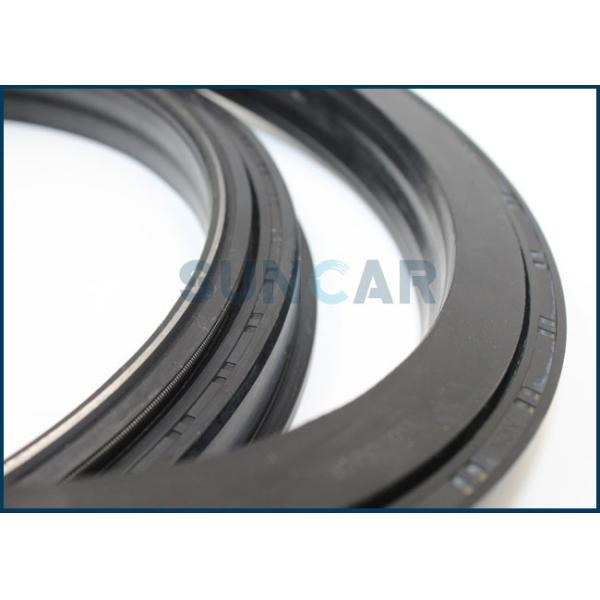

Also known as an oil seal, shaftseal, or lip seal. Its function is to exclude dust, dirt, water or any other contaminant on one side whilst

retaining lubricant on the other. Generally it has been developed as a means of protecting the bearings of rotating shafts.

The basic operation of a shaft seal has the flexible lip held against the rotating part (usually the shaft) whilst the casing (or O.D.) is

pressed into the housing or bore holding the seal in place. The sealing lip needs some form of lubriC-A-Tion to avoid overheating and are usually

energized by means of a garter spring.

Features of Oil Seals:

1). Excellent durability and flexibility of use.

2). The specially designed rope enhances durability and length stability.

3). Excellent heat resistance, oil resistance and abrasion resistance.

4). The display is stable during high-speed rotation.

5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.

6). High power, fast speed, long service life, low distortion and less space.

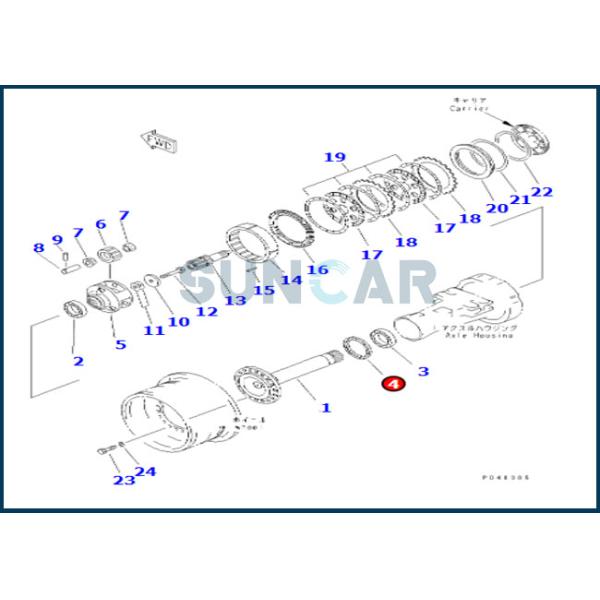

Material Detail:

Nos. Part number Name Qty
423-22-20001 AXLE ASS'Y,FRONT 1
423-22-20000 AXLE ASS'Y,FRONT 1
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3121.
423-22-22001 • FINAL DRIVE ASS'Y 1
1 423-22-22410 •• SHAFT 2
2 421-22-11860 •• BEARING 2
3 423-22-22850 •• BEARING 2
4 423-22-22461 •• SEAL,OIL 2
423-22-22460 •• SEAL,OIL 2
5 423-22-22610 •• CARRIER 2
6 423-22-22530 •• GEAR 6
7 423-22-22810 •• BEARING 12
8 423-22-22510 •• SHAFT 6
9 419-22-12570 •• PIN 6
10 423-22-22350 •• WASHER 2
11 423-22-22260 •• SHIM¤ 0.05MM 6
423-22-22270 •• SHIM¤ 0.2MM 3
423-22-22280 •• SHIM¤ 0.3MM 3
423-22-22290 •• SHIM¤ 0.8MM 2
12 01011-62420 •• BOLT 2
13 423-22-22420 •• SHAFT 2
14 423-22-22540 •• GEAR 2
15 419-22-12581 •• PIN 8
16 423-33-21261 • PLATE 2
423-33-21260 • PLATE 2
17 423-33-21240 • DISC 4
18 423-33-21251 • PLATE 4
423-33-21250 • PLATE 4
19 423-33-21620 • SPRING 8
20 423-33-21120 • PISTON 2
21 423-33-21410 • SEAL 2
22 423-33-21420 • SEAL 2
23 419-22-12870 BOLT 36
24 01643-32460 WASHER 36

BQ5020F Rear Axle Drive Seal For Wheel Loader KOMATSU WA380-3 WA380-6

BQ5020F Rear Axle Drive Seal For Wheel Loader KOMATSU WA380-3 WA380-6
