707-98-14610 7079814610 Arm Cylinder Service Kit for PC10-7 PC25R-8
707-98-14610 7079814610 Arm Cylinder Service Kit for PC10-7 PC25R-8
707-98-14610 7079814610 Arm Cylinder Service Kit for PC10-7 PC25R-8
707-98-14610 7079814610 Arm Cylinder Service Kit for PC10-7 PC25R-8
Specifications
Brand Name :
SUNCAR
Model Number :
Arm cylinder seal kit 707-98-14610 7079814610
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Sets Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Brand :
SUNCAR
Seal type :
Arm cylinder seal kit
Featrure :
Sealing oil;Heat resistance
Color :
Standard color/As per customer required
Part number :
707-98-14610 7079814610
Compatible equipment :
KOMATSU excavators
Model :
EXCAVATORS PC10 PC10N PC15 PC20 PC20MR PC20MRX PC25R PC27MR PC27MRX PC27R PC28UU PC30 PC30MR PC30R PC30UU PC35MR PC38UU PC38UUM Komatsu
Condition :
New, 100%new, brandnew
Consist of :
Dust seal,O-ring,piston rod,wear ring;back-up ring
Description

707-98-14610 7079814610 Arm Cylinder Service Kit for PC10-7 PC25R-8

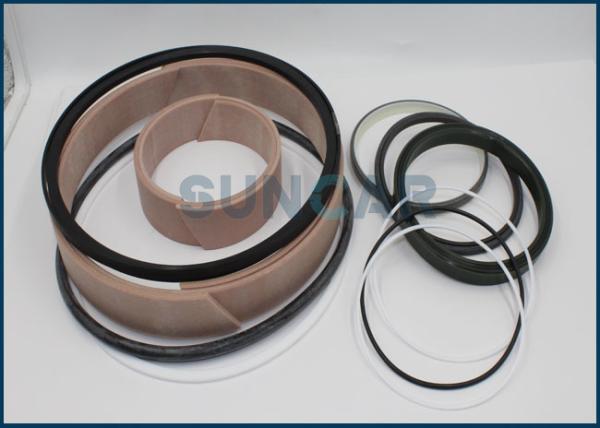

Description: This is a set of arm cylinder seal kit for Excavator KOMATSU PC10-7 PC30MR-1 PC30UU-3 etc.

Product name 707-98-14610 7079814610 Arm Cylinder Service Kit for PC10-7 PC25R-8
Brand name SUNCAR
Part numbers 707-98-14610 7079814610
MOQ Accept trial order
Feuture

Excellent durability and flexibility in using.
Payment Paypal,T/T, Western Union, ,Bank Transfer
Paking details PP bag inside,carton box outside.
Loading Port Huangpu port,China
Shopping mode

By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)

CertifiC-A-Tion

 ISO9001
Consist of Dust seal,O-ring,piston rod,wear ring;back-up ring

Availability

 In stock
Fits equipment KOMATSU

Compatible Models:

PC10-7 PC25R-8 PC30MR-1
PC10N-7 PC27MR-1 PC30R-7
PC15-3 PC27MRX-1 PC30UU-3
PC20-7 PC27R-8 PC35MR-1
PC20MR-1 PC28UU-3 PC38UU-3
PC20MRX-1 PC38UU-2 PC38UUM-2

Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of

hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to

maintain its power.


Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.


There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.


Arm cylinder is the top one, and it's usually be called as top cylinder;


The bucket cylinder is the one that connects and controls the bucket.


Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger

excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some

particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician

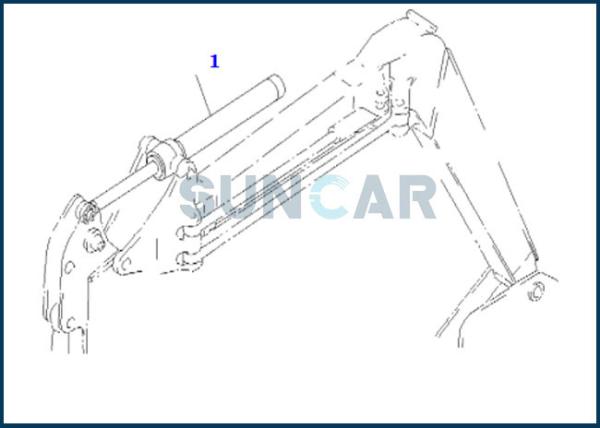

Parts on Group Arm Cylinder:

K-1 707-98-25520 SERVICE KIT,BOOM CYLINDER 1
K-1 707-98-25600 SERVICE KIT 1
07145-00050 • SEAL,DUST 2
707-51-50211 • PACKING,ROD 1
176-63-92240 • SEAL,DUST 1
07000-12085 • O-RING 1
07000-12085 • O-RING 2
07146-02086 • RING 1
07146-02086 • RING,BACK-UP 2
707-35-52690 • RING,BACK-UP 1
07000-02090 • O-RING 1
07145-00050 • SEAL,DUST 2
707-44-90180 • RING,PISTON 1
07156-00912 • RING,WEAR 1
K-2 707-98-25190 SERVICE KIT,ARM CYLINDER 1
07145-00045 • SEAL,DUST 2
707-51-50211 • PACKING,ROD 1
176-63-92240 • SEAL,DUST 1
07000-12075 • O-RING 1
07146-02076 • RING,BACK-UP 2
07000-12075 • O-RING 1
707-35-52750 • RING,BACK-UP 1
07000-02080 • O-RING 1
07145-00045 • SEAL,DUST 2
707-44-80180 • RING,PISTON 1
07156-00810 • RING,WEAR 1
K-3 707-98-24180 SERVICE KIT,OFFSET CYLINDER 1
07145-00040 • SEAL,DUST 2
707-51-45210 • PACKING,ROD 1
112-63-15370 • SEAL,DUST 1
07000-12075 • O-RING 1
07146-02076 • RING,BACK-UP 1
07000-02080 • O-RING 1
07145-00040 • SEAL,DUST 2
707-44-80180 • RING,PISTON 1
07156-00810 • RING,WEAR 1
K-4 707-98-14610 SERVICE KIT,BUCKET CYLINDER 1
07145-00035 • SEAL,DUST 2
707-51-40210 • PACKING,ROD 1
198-63-75190 • SEAL,DUST 1
07000-12065 • O-RING 1
07146-02066 • RING,BACK-UP 1
07000-02070 • O-RING 1
07145-00035 • SEAL,DUST 2
707-44-70180 • RING,PISTON 1
07156-00710 • RING,WEAR 1
K-5 707-98-24570 SERVICE KIT,BLADE CYLINDER 1
07145-00050 • SEAL,DUST 2
707-51-45210 • PACKING,ROD 1
112-63-15370 • SEAL,DUST 1
07000-12085 • O-RING 1
07146-02086 • RING,BACK-UP 1
07000-02090 • O-RING 1
07145-00050 • SEAL,DUST 2
707-44-90180 • RING,PISTON 1
07156-00912 • RING,WEAR 1
K-6 707-98-24550 SERVICE KIT,TILT CYLINDER 1
07000-03035 • O-RING 4
112-63-15370 • SEAL,DUST 1
707-51-45210 • PACKING,ROD 1
07000-02090 • O-RING 1
07000-12085 • O-RING 1
07146-02086 • RING,BACK-UP 1
707-44-90180 • RING,PISTON 1
07156-00912 • RING,WEAR 1
K-7 707-98-24610 SERVICE KIT,BLADE LIFT CYLINDER 1
07145-00050 • SEAL,DUST 4
707-51-45210 • PACKING,ROD 1
112-63-15370 • SEAL,DUST 1
07000-12090 • O-RING 1
707-35-52780 • RING,BACK-UP 1
07000-02095 • O-RING 1
707-44-95180 • RING,PISTON 1
707-39-95110 • RING,WEAR 1
K-8 BK301Z-SK SERVICE KIT,BREAKER 1
BKE1022065 • O-RING 1
BKE3110048 • U-PACKING 3
BKE3120053 • U-PACKING 3
BKE1022070 • O-RING 1
BKE1012020 • O-RING 2
BKE1022040 • O-RING 2
BKE2122040 • RING,BACK-UP 1
BKE1022040 • O-RING 4
BKE2122040 • RING,BACK-UP 5
BKE1012020 • O-RING 1
BKE1022085 • O-RING 1
BKR911101 • VALVE 1
BKE1022025 • O-RING

707-98-14610 7079814610 Arm Cylinder Service Kit for PC10-7 PC25R-8
