SPNO Rod Seal Leakproof
SPNO Rod Seal Leakproof
SPNO Rod Seal Leakproof
SPNO Rod Seal Leakproof
Specifications
Brand Name :
SUNCAR
Model Number :
SPNO Type Piston Rod Seal
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
Paypal ,T/T, Western Union,
Supply Ability :
550 Pcs Per Week.
Delivery Time :
3-7 days after payment received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Color :
Standard color/As Per Customer required
Brand :
SUNCAR
Place of origin :
GuangDong,China
MOQ :
100 pcs/Accept trail order
Transport :
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
Pressure range :
7250psl(500bar)
Surface speed :
＜3.3ft/s(1.0m/sec)
Keyword :
Mechanical Parts Hydraulic Cylinder Piston Rod, Hard Chrome Plated Piston Rod, chrome hydraulic cylinder rod
Hardness :
305 degree
Description

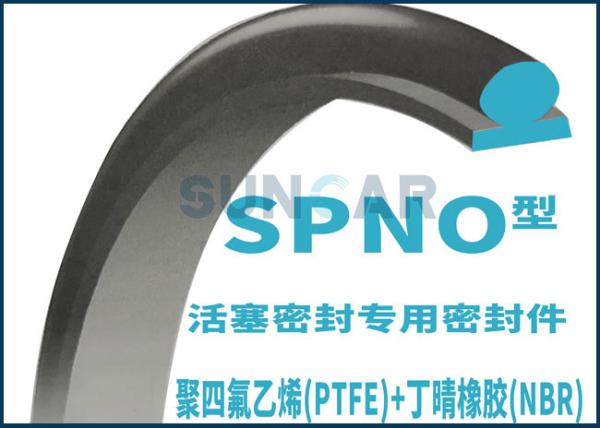

SPNO Rod Seal Leakproof

SPNO type hydraulic seal is a relatively soft, non-metallic ring that is captured in a groove or fixed in a combination of rings to form a seal assembly to prevent or separate fluids in reciproC-A-Ting appliC-A-Tions. Hydraulic sealing is essential in machinery. Their use is critical to providing a way to convert fluid dynamics into linear motion.

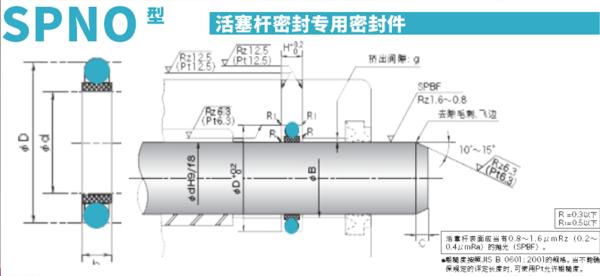

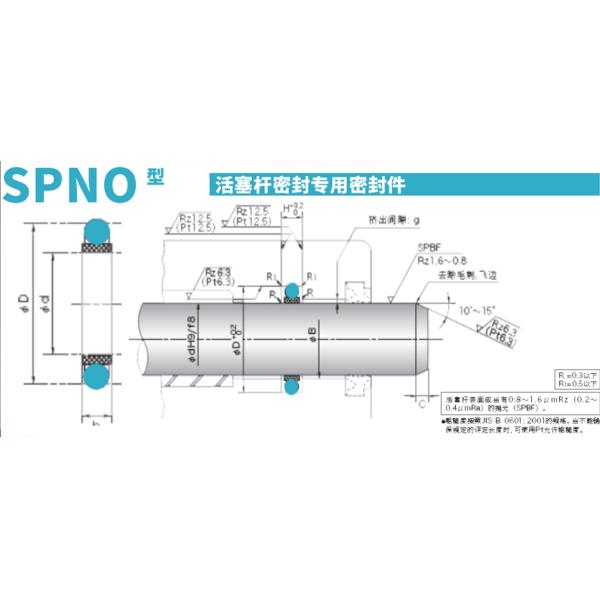

ID OD H ID OD H
12 18 3 130 145 6.3
14 20 3 135 150 6.3
16 22 3 140 155 6.3
18 24 3 145 160 6.3
20 26 3 150 170 9.8
22 31 3.8 160 180 9.8
25 34 3.8 170 190 9.8
28 37 3.8 180 200 9.8
30 39 3.8 190 210 9.8
32 41 3.8 200 220 9.8
36 45 3.8 210 230 9.8
40 49 3.8 220 240 9.8
45 54 3.8 224 244 9.8
50 65 6.3 230 250 9.8
56 71 6.3 240 260 9.8
60 75 6.3 250 270 9.8
63 78 6.3 260 280 9.8
70 85 6.3 270 290 9.8
70 90 6.3 280 300 9.8
80 95 6.3 290 310 9.8
85 100 6.3 300 320 9.8
90 105 6.3 310 350 9.8
95 110 6.3 320 340 9.8
100 115 6.3 330 350 9.8
105 120 6.3 340 360 9.8
110 125 6.3 350 370 9.8
115 130 6.3 360 380 9.8
120 135 6.3 370 390 9.8
125 140 6.3 380 400 9.8

Some Oem No. of SPNO For Your Reference:

GS2800V0 GS2812V0 GS2824V0 GS2836V0 GS2847V0
GS2801V0 GS2813V0 GS2825V0 GS2837V0 GS2848V0
GS2802V0 GS2814V0 GS2826V0 GS2838V0 GS2849V0
GS2803V0 GS2815V0 GS2827V0 GS2839V0 GS2850V0
GS2804V0 GS2816V0 GS2828V0 GS2840V0 GS2851V0
GS2805V0 GS2817V0 GS2829V0 GS2841V0 GS2852V0
GS2806V0 GS2818V0 GS2830V0 GS2842V0 GS2853V0
GS2807V0 GS2819V0 GS2831V0 GS2843V0 GS2854V0
GS2808V0 GS2820V0 GS2832V0 GS2844V0 GS2855V0
GS2809V0 GS2821V0 GS2833V0 GS2845V0 GS2856V0
GS2810V0 GS2822V0 GS2834V0 GS2846V0 GS2857V0
GS2811V0 GS2823V0 GS2835V0

Advantages:

  • Easy to install.

  • Low permanent compression.

  • Adapt to harsh working conditions.

  • High resistance to extrusion.

  • Excellent wear resistance.

  • Anti-impact load and pressure peak are not sensitive.

  • Airmail Economy:cheap method fo inexpensive items

◆◆ PTFE, nbr / fkm rubber

Material description

PTFE filled Bronze, PTFE filled carbon fiber and MoS2, PTFE filled Graphite, PTFE filled PI, PTFE filled Ekonol, and so on

Available Color

Black, green, coffee, gold and so on

Material Strength

This packing has low frictional resistance, which eliminates stick slip and assures high wear resistance. It’s a standard combination seal and can be used for a wide range of operations.

Temperature

-30~+160℃

Speed

≤1.50m/s

Pressure

≤35MPa

Applied device

Mobile Hydraulic equipment / standard cylinder / Presses/excavators
Data
Pressure Temperature Sliding speed Medium
Standard ≤35 MPa -30…+160 ℃ ≤1.5 m/s Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
Material
O ring slide ring
Standard NBR PTFE-Bronze
Standard
(on request)		 FKM PTFE-carbon
pressure 160bar 250bar 400bar
Max Gap E E≤0.6mm E≤0.4mm E≤0.2mm

SPNO Rod Seal Leakproof
