Specifications
Brand Name :
Kelong
Model Number :
KL41
Certification :
ISO9001 / IRIS
Place of Origin :
China
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
100,000 pcs /months
Delivery Time :
7-15 work days
Packaging Details :
Opp bags
Style :
KL41 Hydraulic Piston Seals
Material :
PA / NBR
Pressure (max) bar :
500
Temperature (max) °C :
-30/+105
Sliding Speed (max)- m/s :
1.0
Application :
Heavy Duty Cylinders
Description

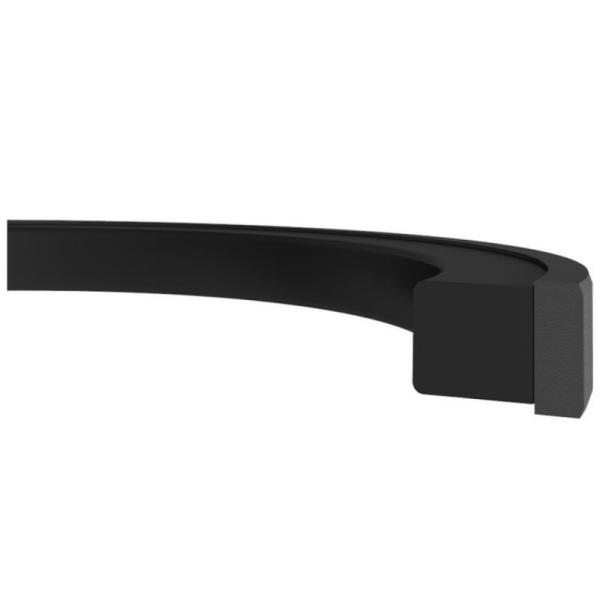

KL41 piston seal consists of «Z» cut thermoplastic sealing ring and rectangular shaped elastomer energizer ring. It has good sealing even at low pressures thanks to the rectangular formed elastomer. The «Z» cut ring provides a superior sealing without losing the contact with the tube surface at high and shock pressures. The ring can work at higher extrusion gaps in comparison with PTFE material and has high strength and wear resistance thanks to the glass filled thermoplastic material.

Advantages

• Designed for grooves according to ISO 7425/1
• Easy fit without installation tool
• Simple one piece piston head with small groove
• Higher extrusion gap in comparison with PTFE and PU piston seals
• High wear resistance, long service life
• Outstanding resistance to pressure shocks
• Operating in heavy duty conditions

Area of Application

• Construction machinery
• Forklifts
• Heavy duty cylinders
KL41 Hydraulic Piston Seals Wear Resistant For Heavy Duty Cylinders

D (H9) d (h9) L (+0.2/-0) r1 C MATERIAL
KL41-040 40 29 4.2 1 6 PA
KL41-050 50 39 4.2 1 6 PA
KL41-060 60 44.5 6.3 1.3 8 PA
KL41-060/1 60 49 4.2 1 6 PA
KL41-063 63 47.5 6.3 1.3 8 PA
KL41-063/1 63 42 8.1 1.8 10.5 PA
KL41-063/2 63 52 4.2 1 6 PA
KL41-070/1 70 59 4.2 1 6 PA
KL41-075 75 54 8.1 1.8 10.5 PA
KL41-080 80 64.5 6.3 1.3 6 PA
KL41-080/1 80 59 8.1 1.8 10.5 PA
KL41-085 85 69.5 6.3 1.3 6 PA
KL41-090 90 74.5 6.3 1.3 10.5 PA
KL41-090/1 90 69 8.1 1.8 6 PA
KL41-095 95 74 8.1 1.8 10.5 PA
KL41-100 100 84.5 6.3 1.3 6 PA
KL41-100/1 100 79 8.1 1.8 10.5 PA
KL41-105 105 84 8.1 1.8 10.5 PA
KL41-105/1 105 89.5 6.3 1.3 6 PA
KL41-110 110 94.5 6.3 1.3 6 PA
KL41-110/1 110 89 8.1 1.8 10.5 PA
KL41-115 115 94 8.1 1.8 10.5 PA
KL41-120 120 99 8.1 1.8 10.5 PA
KL41-125 125 104 8.1 1.8 10.5 PA
KL41-125/1 125 110 6.3 1.3 10.5 PA
KL41-126 126 105 8.1 1.8 10.5 PA
KL41-130 130 109 8.1 1.8 10.5 PA
KL41-135 135 114 8.1 1.8 10.5 PA
KL41-135/1 135 119.5 6.3 1.3 10.5 PA
KL41-140 140 119 8.1 1.8 10.5 PA
KL41-145 145 124 8.1 1.8 10.5 PA
KL41-147 147 126 8.1 1.8 10.5 PA
KL41-150 150 129 8.1 1.8 10.5 PA
KL41-160 160 139 8.1 1.8 10.5 PA
KL41-165 165 144 8.1 1.8 10.5 PA
KL41-170 170 149 8.1 1.8 10.5 PA
KL41-175 175 154 8.1 1.8 10.5 PA
KL41-180 180 159 8.1 1.8 10.5 PA
KL41-185 185 164 8.1 1.8 10.5 PA
KL41-190 190 169 8.1 1.8 10.5 PA
KL41-200 200 179 8.1 1.8 10.5 PA
KL41-210 210 189 8.1 1.8 10.5 PA
KL41-215 215 194 8.1 1.8 10.5 PA
KL41-220 220 199 8.1 1.8 10.5 PA
KL41-225 225 204 8.1 1.8 10.5 PA
KL41-230 230 209 8.1 1.8 10.5 PA
KL41-250 250 229 8.1 1.8 10.5 PA
KL41-280 280 255.5 8.1 1.8 10.5 PA
