Specifications
Brand Name :
Cologne
Model Number :
KL27
Certification :
ISO9001 / IRIS
Place of Origin :
China
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
100,000 pcs /months
Delivery Time :
7-15 work days
Packaging Details :
Opp bag
Style :
Double Acting Piston Seal Hydraulic
Material :
PU / NBR
Pressure (max) bar :
250
Temperature (max) °C :
-30/+100
Sliding Speed (max)- m/s :
0.5
Application :
Mobile machinery / Injection moulding machines / Forklifts / Agricultural machinery / Standard industrial cylinders
Description

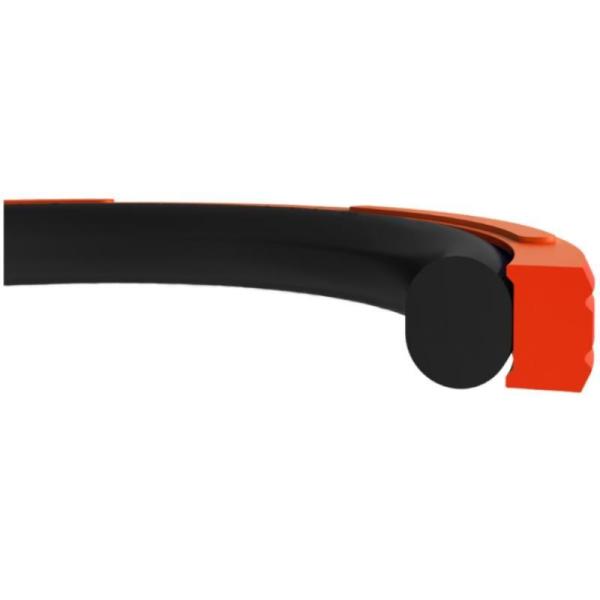

KL27 Double Acting Piston Seal Consists Of Polyurethane Special Formed Sealing Ring And Elastomer Oring Energizer Ring.

KL27 double acting piston seal consists of polyurethane special formed sealing ring and elastomer oring energizer ring. Preffered in light to medium duty applications, KL27 is an economic piston seal solution.

Advantages

• High static and dynamic sealing effect
• Simple and small groove design suitable with ISO 7425-1
• Economical sealing solution
• Easy installation

Area of Application

• Mobile machinery
• Injection moulding machines
• Forklifts
• Agricultural machinery
• Standard industrial cylinders
KL27 Double Acting Piston Seals PU / NBR Material For Hydraulic Cylinders
D (H9) d (h9) L (+0.2/-0) r1 C O-Ring MATERIAL
KL27 015-007.5 15 7.5 3.2 0.6 3 7.60x2.62 PU
KL27 016-008.5 16 8.5 3.2 0.6 3 7.60x2.62 PU
KL27 020-012.5 20 12.5 3.2 0.6 3 11.91x2.62 PU
KL27 022-014.5 22 14.5 3.2 0.6 3 13.95x2.62 PU
KL27 025-014 25 14 4.2 1 4.5 13.87x3x53 PU
KL27 025-017.5 25 17.5 3.2 0.6 3 17.13x2.62 PU
KL27 030-022.5 30 22.5 3.2 0.6 3 21.89x2.62 PU
KL27 032-021 32 21 4.2 1 4.5 20.22x3x53 PU
KL27 032-024.5 32 24.5 3.2 0.6 3 23.81x2.62 PU
KL27 035-027.5 35 27.5 3.2 0.6 3 26.64x2.62 PU
KL27 038-030.5 38 30.5 3.2 0.6 3 29.82x2.62 PU
KL27 040-024.5 40 24.5 6.3 1.3 6 23.17x5.33 PU
KL27 040-029 40 29 4.2 1 4.5 28.17x3.53 PU
KL27 040-032.5 40 32.5 3.2 0.6 3 31.42x2.62 PU
KL27 045-029.5 45 29.5 6.3 1.3 6 29.51x5.33 PU
KL27 045-034 45 34 4.2 1 4.5 32.92x3.53 PU
KL27 048-037 48 37 4.2 1 4.5 36.1x3.53 PU
KL27 049-038 49 38 4.2 1 4.5 37.69x3.53 PU
KL27 050-034.5 50 34.5 6.3 1.3 6 32.69x5.33 PU
KL27 050-039 50 39 4.2 1 4.5 37.69x3.53 PU
KL27 052-036.5 52 36.5 6.3 1.3 6 34.29x5.33 PU
KL27 054-043 54 43 4.2 1 4.5 42.86x3.53 PU
KL27 055-039.5 55 39.5 6.3 1.3 6 37.47x5.33 PU
KL27 055-044 55 44 4.2 1 4.5 42.86x3.53 PU
KL27 057.15-046.15 57.15 46.15 4.2 1 4.5 46.04x3.53 PU
KL27 060-044.5 60 44.5 6.3 1.3 6 43.82x5.33 PU
KL27 060-049 60 49 4.2 1 4.5 47.63x3.53 PU
KL27 063-047.5 63 47.5 6.3 1.3 6 47x5.33 PU
KL27 063-052 63 52 4.2 1 4.5 50.8x3.53 PU
KL27 063.5-052.5 63.5 52.5 4.2 1 4.5 50.8x3.53 PU
KL27 065-049.5 65 49.5 6.3 1.3 6 47x5.33 PU
KL27 065-054 65 54 4.2 1 4.5 52.39x3.53 PU
KL27 070-054.5 70 54.5 6.3 1.3 6 53.34x5.33 PU
KL27 070-059 70 59 4.2 1 4.5 57.15x3.53 PU
KL27 075-059.5 75 59.5 6.3 1.3 6 56.52x5.33 PU
KL27 075-064 75 64 4.2 1 4.5 63.09x3.53 PU
KL27 080-059 80 59 8.1 1.8 8 58x6.99 PU
KL27 080-064.5 80 64.5 6.3 1.3 6 62.87x5.33 PU
KL27 080-069 80 69 4.2 1 4.5 68.26x3.53 PU
KL27 085-069.5 85 69.5 6.3 1.3 6 69.22x5.33 PU
KL27 090-074.5 90 74.5 6.3 1.3 6 72.4x5.33 PU
KL27 095-079.5 95 79.5 6.3 1.3 6 78.74x5.33 PU
KL27 100-084.5 100 84.5 6.3 1.3 6 81.92x5.33 PU
KL27 100-089 100 89 4.2 1 4.5 85.32x3.53 PU
KL27 105-089.5 105 89.5 6.3 1.3 6 88.27x5.33 PU
KL27 110-094.5 110 94.5 6.3 1.3 6 91.44x5.33 PU
KL27 115-094 115 94 8.1 1.8 8 92x6.99 PU
KL27 115-099.5 115 99.5 6.3 1.3 6 97.80x5.33 PU
KL27 120-104.5 120 104.5 6.3 1.3 6 104.14x5.33 PU
KL27 125-104 125 104 8.1 1.8 8 102x6.99 PU
KL27 125-109.5 125 109.5 6.3 1.3 6 107.32x5.33 PU
KL27 130-114.5 130 114.5 6.3 1.3 6 110.49x5.33 PU
KL27 135-114 135 114 8.1 1.8 8 113.67x6.99 PU
KL27 140-119 140 119 8.1 1.8 8 116.84x6.99 PU
KL27 150-129 150 129 8.1 1.8 8 126.37x6.99 PU
KL27 160-139 160 139 8.1 1.8 8 135.9x6.99 PU
KL27 170-149 170 149 8.1 1.8 8 145.42x6.99 PU
KL27 180-159 180 159 8.1 1.8 8 155.6x6.99 PU
KL27 200-179 200 179 8.1 1.8 8 177.17x6.99 PU
KL27 250-229 250 229 8.1 1.8 8 227.97x6.99 PU
