Specifications
Place of Origin :
China(mainland)
Material :
NBR, FKM (brown)
Application :
Forestry, Construction, Agricultural, Presses
Type :
Wiper Seal
MOQ :
50
Specifications :
d 50 ~ 500mm
Model Number :
GSM K09 ASW
Name :
GSM Double Lip Wiper
Payment Terms :
T/T
Media :
Hydraulic Fluids, Grease, Water
Description

The GSM is a double-lip wiper seal used in hydraulic or pneumatic systems; it combines the wiping capability of a U-cup seal and effective protection against ingress of contaminants into the sealing system. The seal outer diameter is designed stepped for optimal contact force and good positioning. The GSM wiper is an ideal scraper which is suitable for a wide temperature range and can be used with various media.



Technical data

Pressure Speed Temperature Media
- 1m/s

NBR: -30℃ ~ 105℃

FKM: -20℃ ~ 220℃

 Hydraulic Oils, water, steam


Advantages

  • Effective wiping effect, able to remove even stubborn adhered dirt
  • Low-friction
  • Media compatibility
  • Outer diameter design for firm placement - Slight rotation or oscillation has no effect on performance
  • Basic groove design
  • Prevents oil film from sticking to piston rod
  • Easy to install & remove


Applications

  • Industrial equipment, machine tools, hydraulic presses
  • Agricultural machinery
  • Construction machinery
  • Cranes
  • Forklifts
  • Standard industrial cylinders
  • Mining industry

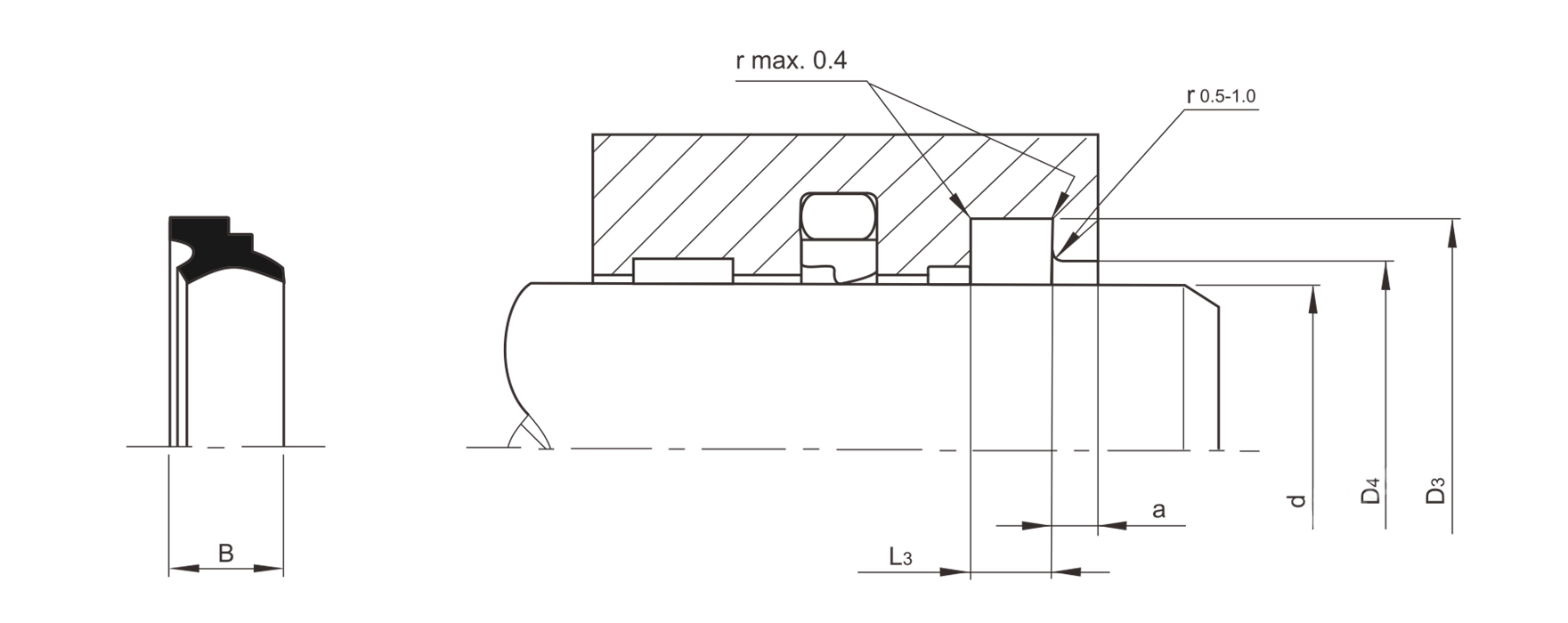

Specification

Part No. d f8/h9 D3 H9 L3+0.2 D4 H1 1 a min. B
GSM0200 20 28 6 23.5 2 8
GSM0220 22 30 6 25.5 2 8
GSM0240 24 32 6 27.5 2 8
GSM0250 25 33 6 28.5 2 8
GSM0280 28 36 6 31.5 2 8
GSM0300 30 38 6 33.5 2 8
GSM0320 32 40 6 35.5 2 8
GSM0350 35 43 6 38.5 2 8
GSM0360 36 44 6 39.5 2 8
GSM0370 37 45 6 40.5 2 8
GSM0380 38 46 6 41.5 2 8
GSM0400 40 48 6 43.5 2 8
GSM0420 42 50 6 45.5 2 8
GSM0450 45 53 6 48.5 2 8
GSM0460 46 54 6 49.5 2 8
GSM0480 48 56 6 51.5 2 8
GSM0500 50 58 6 53.5 2 8
GSM0520 52 60 6 55.5 2 8
GSM0550 55 63 6 58.5 2 8
GSM0560 56 64 6 59.5 2 8
GSM0600 60 68 6 63.5 2 8
GSM0630 63 71 6 66.5 2 8
GSM0650 65 73 6 68.5 2 8
GSM0680 68 76 6 71.5 2 8
GSM0700 70 78 6 73.5 2 8
GSM0750 75 83 6 78.5 2 8
GSM0800 80 88 6 83.5 2 8
GSM0850 85 93 6 88.5 2 8
GSM0900 90 98 6 93.5 2 8
GSM0950 95 103 6 98.5 2 8
GSM1000 100 108 6 103.5 2 8
GSM1050 105 117 8.2 110 3 11
GSM1100 110 122 8.2 115 3 11
GSM1150 115 127 8.2 120 3 11
GSM1200 120 132 8.2 125 3 11
GSM1250 125 137 8.2 130 3 11
GSM1300 130 142 8.2 135 3 11
GSM1350 135 147 8.2 140 3 11
GSM1400 140 152 8.2 145 3 11
GSM1450 145 157 8.2 150 3 11
GSM1500 150 162 8.2 155 3 11
GSM1550 155 167 8.2 160 3 11
GSM1600 160 172 8.2 165 3 11
GSM1650 165 177 8.2 170 3 11
GSM1700 170 182 8.2 175 3 11
GSM1800 180 192 8.2 185 3 11
GSM1850 185 197 8.2 190 3 11
GSM1900 190 202 8.2 195 3 11
GSM1950 195 207 8.2 200 3 11
GSM2000 200 212 8.2 205 3 11
GSM2050 205 220 9.5 212 3 13
GSM2100 210 225 9.5 217 3 13
GSM2200 220 235 9.5 227 3 13
GSM2250 225 240 9.5 232 3 13
GSM2400 240 255 9.5 247 3 13
GSM2500 250 265 9.5 257 3 13
GSM2600 260 275 9.5 267 3 13
GSM2750 275 290 9.5 282 3 13
GSM2800 280 295 9.5 287 3 13
GSM2900 290 305 9.5 297 3 13
GSM3000 300 315 9.5 307 3 13
GSM3100 310 325 9.5 317 3 13
GSM3200 320 335 9.5 327 3 13
GSM3500 350 365 9.5 357 3 13
GSM3600 360 375 9.5 367 3 13
GSM3700 370 385 9.5 377 3 13
GSM4000 400 415 9.5 407 3 13
GSM4400 440 455 9.5 447 3 13
  • For more or non-standard dimensions, please contact us directly. We also supply CNC turning seals.
