ODI Piston U-cup Seals Polyurethane Lip Seal For Hydraulic Sealing
ODI Piston U-cup Seals Polyurethane Lip Seal For Hydraulic Sealing
ODI Piston U-cup Seals Polyurethane Lip Seal For Hydraulic Sealing
ODI Piston U-cup Seals Polyurethane Lip Seal For Hydraulic Sealing
ODI Piston U-cup Seals Polyurethane Lip Seal For Hydraulic Sealing
ODI Piston U-cup Seals Polyurethane Lip Seal For Hydraulic Sealing
ODI Piston U-cup Seals Polyurethane Lip Seal For Hydraulic Sealing
ODI Piston U-cup Seals Polyurethane Lip Seal For Hydraulic Sealing
Specifications
Certification :
ISO9001, IATF16949, ISO14001, ISO45001
Diameter Range :
5mm~750mm
Price :
Negotiable
Type :
Piston Seal
Payment Terms :
T/T
Place of Origin :
China(mainland)
Temperature :
-30℃ ~ +110℃
Color :
Green, Blue, other colors upon request
Model Number :
ODI PUA
MOQ :
50pcs
Product Name :
Piston U Seal, Piston U-cup
Description

ODI is a U-shaped piston seal with an asymmetric sealing lip, a higher inner lip, and a lower outer lip. ODI is suitable for applications where standard rubber or fabric-reinforced rubber seals fail to meet performance requirements. It is primarily used for sealing pistons and plungers in heavy-duty mobile machinery or industrial hydraulic systems. We also supply low-temperature U-seals (-45℃~+100℃).


Technical data

Pressure Speed Temperature Media
0~35MPa 0.5m/s

–30° C / +110° C

 hydraulic mineral oils (HPU for water-based fluids)



Advantages

  • Suitable for static and dynamic sealing
  • Excellent wear resistance
  • Insensitive to impact loads and pressure peaks
  • High extrusion resistance
  • Low permanent compression set
  • Suitable for harsh operating conditions
  • Easy to install


Applications

  • Hydraulic cylinders
  • Mobile Machinery
  • Agricultural Machines
  • Industrial Hydraulic Equipment
  • Construction Machinery

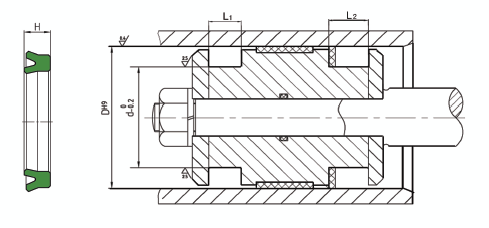

Specification

d D H L1 L2
5 15 8 9 11
6 15 8 9 11
8 14 4 4.7 6.7
11.2 19.2 5 5.7 7.7
14 22 5 5.7 7.7
17 25 10 11 13
19 34 8 9 12
20 30 5 5.7 7.7
25 40 12 13 16
27 35 5 5.7 7.7
30 40 6 7 9
30 40 6.5 7.5 9.5
30 40 8 9 11
30 45 6 7 10
30 45 12 13 16
33 45 9 10 13
35 45 6 7 9
35 45 8 9 11
35 48 10 11 14
35 50 12 13 16
35 55 12 13 16
40 50 6 7 9
40 50 6.5 7.5 9.5
40 50 8 9 11
40 50 9 10 12
45 55 6 7 9
45 56 7 8 10
45 60 10 11 14
45 65 12 13 16
46 56 6 7 9
48 63 9 10 13
50 60 6 7 9
50 60 8 9 11
50 63 14 15 18
50 65 9 10 13
50 70 9 10 13
50 70 12 13 16
53 63 6 7 9
53 63 6.5 7.5 9.5
55 70 9 10 13
55 70 10 11 14
55 70 12 13 16
55 75 12 13 16
58 72 12 13 16
60 70 6 7 9
60 70 8 9 11
60 75 13 14 17
61 71 6 7 9
64 80 12 13 16
65 75 6 7 9
65 80 10 11 14
70 80 6 7 9
70 80 8 9 11
70 86 12 13 16
71 80 6.5 7.5 9.5
75 88 9.5 10.5 13.5
75 90 9 10 13
75 90 10 11 14
75 100 18 19 22
80 90 6 7 9
80 95 12 10 13
85 100 9 10 13
85 100 9.5 10.5 13.5
95 110 9 10 13
100 115 9 10 13
100 120 13 14 17
100 130 12 13 16
106 120 8.5 9.5 12.5
110 120 6 7 9
110 125 9 10 13
110 125 10 11 14
110 130 12 13 16
112 125 9 10 13
115 130 9 10 13
118 133 9 10 13
120 140 13 14 17
125 140 9 10 13
135 150 9 10 13
135 160 19 20 23
140 160 13 14 17
145 160 9 10 13
155 170 9 10 13
165 180 9 10 13
175 190 9 10 13
190 210 12 13 16
195 220 16 17 21
200 220 12 13 16
215 240 16 17 21
225 250 19 20 24
230 250 12 13 16
230 250 12.5 13.5 16.5
270 300 19 20 24
280 310 19 20 24
290 320 19 20 24
300 330 19 20 24
370 400 22 23 27
  • Please contact us directly for more dimensions or other requests.
