Split Wear Rings For Rod POM PTFE Guide Rings FAI
Split Wear Rings For Rod POM PTFE Guide Rings FAI
Specifications
Media :
Mineral Oils, Emulsions, HFA, Air
Seal Type :
Guide Rings / Bearing Rings
Model Number :
FA
Design :
U-Shape, Split Angle-Cut
Material :
PA, POM (Std) / PTFE Bronze
Certification :
ISO9001, IATF16949, ISO14001, ISO45001
Speed :
3m/s
Application :
Hydraulic Cylinder, Mining, Construction
Payment Terms :
T/T
Temperature :
-200°C /+260°C (PTFE), -50°C /+120°C (POM / PA)
Features :
Easy Install, Dry Running, Fluid Compatible
Profile :
FA
Place of Origin :
China(mainland)
Diameter Range :
10mm~1800mm
MOQ :
10
Description

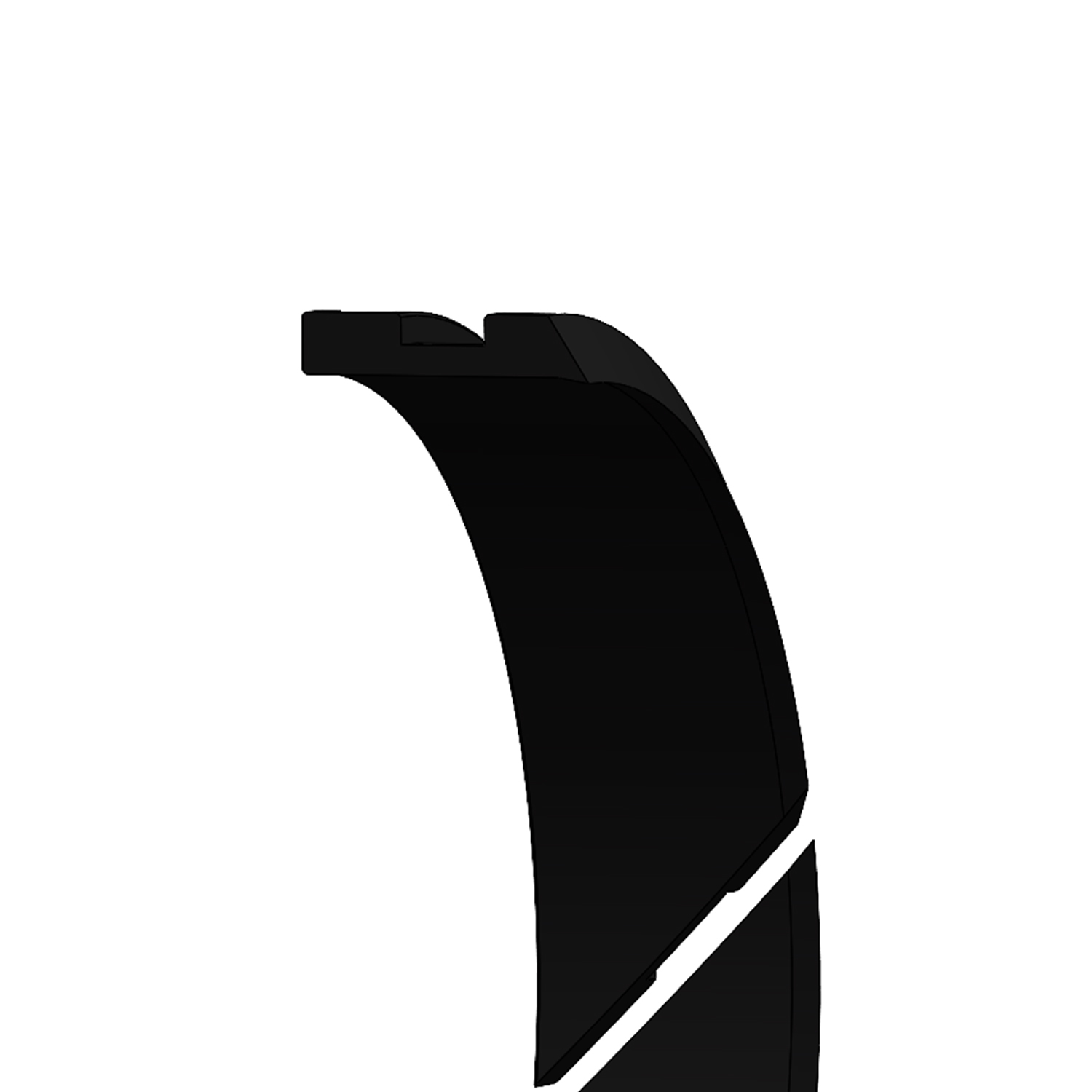

The FA guide ring is mainly used to guide and support the piston in the cylinder barrel. The inner diameter of the FA support ring has a special U-shaped profile that can be locked in the groove to prevent the guide ring displacement. The number of guide rings can be adapted to the size of the lateral loads inside cylinders. FA support rings are normally produced with an angled cut or a straight cut to facilitate installation. In the case of several rings installed in a single groove, the cuts should be staggered.


Technical data

Pressure Speed Temperature Media
- 3m/s

–40° C / +100° C (POM with glass fibre, Nylon)

-55° C / +260° C (PTFE+BRONZE)

 mineral-oil-based hydraulic fluids, water-oil emulsions, fire-resistant hydraulic fluids, and compressed air


Advantages

  • Helps reduce vibration and radial loads
  • Low friction
  • Prevents fretting and seizure
  • Stable and easy installation
  • Easy installation

Applications

  • Hydraulic Cylinder
  • Mining
  • Construction Machinery
  • Heavy-duty Construction Machinery

Specification

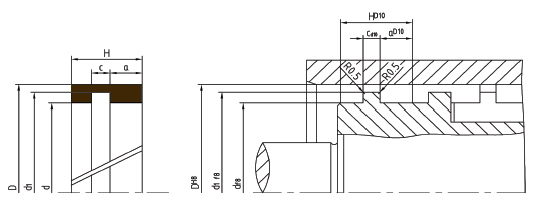

Part No. d D D1 H c a
FA0560 56 48 52 12 3 6.2
FA0630 63 55 59 12 3 6.2
FA0650 65 57 61 12 3 6.2
FA0700 70 62 66 12 3 6.2
FA0750 75 67 71 12 3 6.2
FA0800 80 72 76 14 3 7.2
FA0850 85 77 81 14 3 7.2
FA0900 90 82 86 14 3 7.2
FA0950 95 87 91 14 3 7.2
FA1000 100 92 96 14 3 7.2
FA1050 105 97 101 14 3 7.2
FA1100 110 102 106 14 3 7.2
FA1150 115 107 111 14 3 7.2
FA1200 120 112 116 14 3 7.2
FA1250 125 115 121 17.5 4 9.2
FA1300 130 120 126 17.5 4 9.2
FA1350 135 125 131 17.5 4 9.2
FA1400 140 130 136 17.5 4 9.2
FA1450 145 135 141 17.5 4 9.2
FA1500 150 140 146 17.5 4 9.2
FA1550 155 145 151 17.5 4 9.2
FA1600 160 150 156 17.5 4 9.2
FA1700 170 160 166 20 6 9.2
FA1800 180 170 176 20 6 9.2
FA1900 190 180 186 20 4.5 11.7
FA2000 200 190 196 20 4.5 11.7
FA2100 210 200 206 25 8 11.7
FA2200 220 210 216 25 8 11.7
FA2250 225 215 221 25 8 11.7
FA2300 230 220 226 25 8 11.7
FA2350 235 225 231 33 15 11.7
FA2400 240 230 236 33 15 11.7
FA2500 250 240 246 33 15 11.7
FA2650 265 255 261 33 15 11.7
FA2750 275 265 271 33 15 11.7
FA2800 280 270 276 33 15 11.7
FA2900 290 280 286 33 15 11.7
FA3000 300 290 296 33 15 11.7
FA3100 310 298 304 35 8.5 13.25
FA3200 320 308 314 35 8.5 13.25
FA3400 340 328 334 35 8.5 13.25
FA3500 350 338 344 35 8.5 13.25
FA3600 360 348 354 35 8.5 13.25
FA3800 380 368 374 35 8.5 13.25
FA4000 400 388 394 35 8.5 13.25
FA4200 420 408 414 35 8.5 13.25
FA4250 425 413 419 35 8.5 13.25
FA4500 450 438 444 35 8.5 13.25
FA4800 480 468 474 35 8.5 13.25
FA5000 500 488 494 35 8.5 13.25
FA5600 560 548 554 35 8.5 13.25
FA6000 600 588 594 35 8.5 13.25
FA6300 630 618 624 35 8.5 13.25
FA6500 650 638 644 35 8.5 13.25
FA7000 700 688 694 35 8.5 13.25
FA7500 750 738 744 35 8.5 13.25
FA7800 780 768 774 35 8.5 13.25
FA8000 800 788 794 35 8.5 13.25


  • Customized and special sizes on request.
