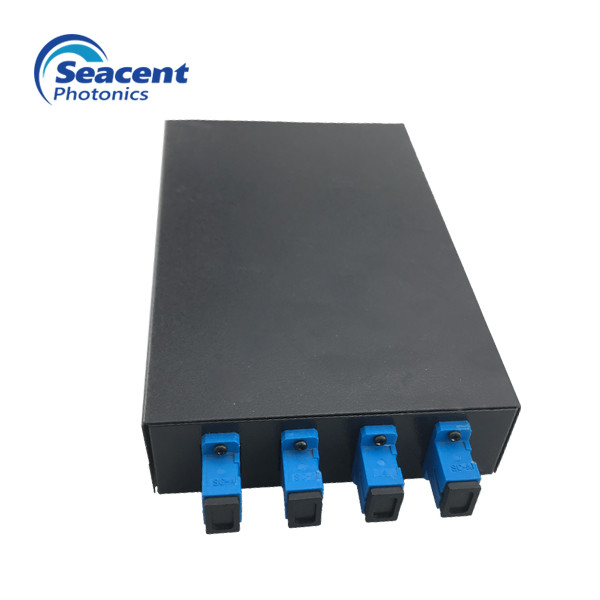

Rack type CWDM Mux Demux 4 / 6 / 8 Channels
Rack type CWDM Mux Demux 4 / 6 / 8 Channels
Rack type CWDM Mux Demux 4 / 6 / 8 Channels
Rack type CWDM Mux Demux 4 / 6 / 8 Channels
Rack type CWDM Mux Demux 4 / 6 / 8 Channels
Rack type CWDM Mux Demux 4 / 6 / 8 Channels
Specifications
Brand Name :
Seacent
Model Number :
Rack type CWDM
Certification :
CE RoHS FCC,ISO9001,CE,FCC,RoHS
Place of Origin :
Guangdong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Product Name: :
Mux orDemux or Mux&Demux
Type :
Rack type CWDM
Channel wavelength :
1270~1610nm
Center wavelength accuracy :
±0.5nm
Channel spacing :
20nm
Warranty :
3 Years
Channel passband（@ -0.5dbbandwidth) :
>14nm
Connector :
LC/APC or customized
Operating temperature :
-20 ~+70°C
Description

Rack type CWDM Mux Demux 4/6/8 Channels

product description

CWDM technology efficiently expands fiber capacity by multiplexing multiple optical wavelengths onto a single fiber. Seacent’s Mux/Demux modules ensure precise signal separation at the receiving end, directing each wavelength to its designated device with high reliability.

feature

Low insertion loss

Compact design

High isolation

Low Polarization Dependent Loss (PDL)

Good channel-to-channel consistency

Wide operating wavelength: 1270-1610nm

Wide working temperature: -20 ° C ~ 70 ° C

Built for Harsh Environments

Application field

CWDM system

PON network

Cable chain

technical parameter

parameter 4 channels 6 channels 8 channels
Center wavelength(nm) ITU or ITU+1(Customizable starting wavelength)
Product Features Mux orDemux or Mux&Demux
Channel wavelength (nm) 1270~1610
Center wavelength accuracy (nm) ±0.5
Channel spacing (nm) 20
Channel passband(@ -0.5dbbandwidth(nm) >14
Insertion loss(dB) ≤1.4 ≤2.6 ≤3.0
Channel uniformity(dB) ≤0.5 ≤0.5 ≤0.5
Channel ripple(dB) 0.3
Isolation(dB) Adjacent >30 >30 >30
Isolation (dB) Non adjacent >40 >40 >40
Polarization dependent loss(dB) <0.2
Polarization mode dispersion(PS) <0.1
Directionality(dB) >50
Return loss(dB) >45
Connector type LC/APC or customized
Maximum power(mW) 500
Operating temperature(℃) -20~70
Storage temperature(℃) -40~85
Package type(mm) LGX,Box, rack or customer designation
Package size(mm)

LGX:201x256x44 or 155x100x29

Box:100x80x10 or 120x80x18 or 141x120x28

rack :1U: 484x260x44 or 2U: 482x260x88

Details

Rack type CWDM Mux Demux 4 / 6 / 8 Channels

Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners

Technology:

(1) Professionally engaged in high-precision packaging production of optical devices for 15 years

(2) 15 years of technical team

(3) Have their own core technology

Detailed parameters
