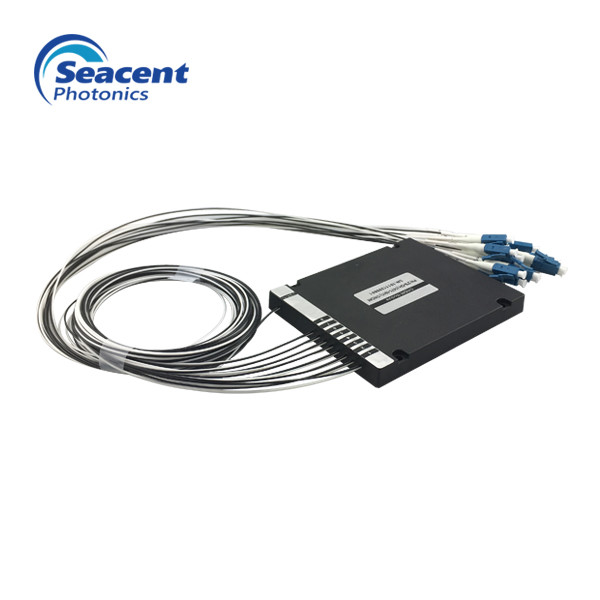

Box Type CWDM Mux Demux With LC / APC Connector​
Box Type CWDM Mux Demux With LC / APC Connector​
Box Type CWDM Mux Demux With LC / APC Connector​
Box Type CWDM Mux Demux With LC / APC Connector​
Box Type CWDM Mux Demux With LC / APC Connector​
Box Type CWDM Mux Demux With LC / APC Connector​
Specifications
Brand Name :
Seacent
Model Number :
16 CHANNEL CWDM Cassette type
Certification :
CE RoHS FCC,ISO9001,CE,FCC,RoHS
Place of Origin :
Guangdong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Product Name: :
CWDM Mux Demux
Type :
16 CHANNEL CWDM Cassette type
OEM :
Yes
Center wavelength accuracy :
±0.5nm
Channel spacing :
20nm
Warranty :
3 Years
Operating temperature :
-20 ~+70°C
Description

Box Type CWDM Mux Demux With LC / APC Connector​

CWDM Mux Demux description

A CWDM Mux/Demux combines multiple optical signals of different wavelengths onto a single fiber for transmission. At the receiving end, it separates the combined signal back into individual wavelengths, each directed to its corresponding receiving device.

CWDM Mux Demux feature

Low PDL

High Stability

Low Insertion Loss

Good channel-to-channel consistency

Wide operating wavelength: 1270-1610nm

Wide working temperature: -20 ° C ~ 70 ° C

Telcordia GR-1209/GR-1221 Compliant

CWDM Mux Demuxtechnical parameter

parameter 6 channels 8 channels
Center wavelength(nm) ITU or ITU+1(Customizable starting wavelength)
Product Features Mux orDemux or Mux&Demux
Channel wavelength (nm) 1270~1610
Center wavelength accuracy (nm) ±0.5
Channel spacing (nm) 20
Channel passband(@ -0.5dbbandwidth(nm) >14
Insertion loss(dB) ≤2.6 ≤3.0
Channel uniformity(dB) ≤0.5 ≤0.5
Channel ripple(dB) 0.3
Isolation(dB) Adjacent >30 >30
Isolation (dB) Non adjacent >40 >40
Polarization dependent loss(dB) <0.2
Polarization mode dispersion(PS) <0.1
Directionality(dB) >50
Return loss(dB) >45
Connector type LC/APC or customized
Maximum power(mW) 500
Operating temperature(℃) -20~70
Storage temperature(℃) -40~85
Package type(mm) LGX,Box, rack or customer designation
Package size(mm)

LGX:201x256x44 or 155x100x29

Box:100x80x10 or 120x80x18 or 141x120x28

rack :1U: 484x260x44 or 2U: 482x260x88

CWDM Mux Demux Details

Box Type CWDM Mux Demux With LC / APC Connector​

Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners

Technology:

(1) Professionally engaged in high-precision packaging production of optical devices for 15 years

(2) 15 years of technical team

(3) Have their own core technology

Detailed parameters

CWDM-Seacent Photonics.pdf
