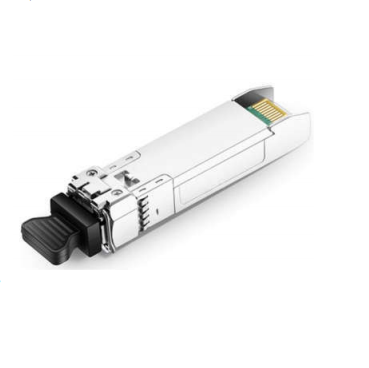

10Gb/s Duplex LC 10km Optical Transceiver Module
10Gb/s Duplex LC 10km Optical Transceiver Module
Specifications
Brand Name :
Seacent
Model Number :
SP-CS-4XX10
Certification :
CE FCC RoHS
Place of Origin :
shenzhen China
MOQ :
10 pcs
Price :
USD
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pcs
Packaging Details :
Electrostatic bag vacuum packaging
Description
10Gb/s Duplex LC 10km Optical Transceiver Module
Product Overview

Secant Photonics SP-CS-4XX10 transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 10km on G.652 single mode fiber. These high-performance modules feature a metal enclosure, low EMI performance, bail latch, and connector latch for reliable operation.

Key Features
  • Support multi-protocol from 9.9 Gb/s to 11.3Gb/s
  • Hot-Pluggable SFP+ footprint
  • 1271~1611nm, CWDM DFB laser transmitter
  • Duplex LC connector
  • 10km on 9/125μm SMF
  • Single +3.3V Power Supply
  • Compliant with SFF-8431, SFF-8432, SFF-8472, IEEE 802.3ae
  • Low power dissipation < 1.5W typically
  • Commercial operating temperature range: 0°C to 70°C
  • RoHS compliant
Applications
  • 10GBASE-LR/LW Ethernet (10km)
  • 10G Fiber channel
  • SONET OC-192/SDH STM-64
  • CWDM Networks, 3G/4G/5G
Technical Specifications
Absolute Maximum Ratings
Parameter Symbol Min. Typical Max. Unit
Storage Temperature Ts -40
85 ℃
Supply Voltage VCC -0.5
4 V
Relative Humidity RH 0
85 %
Electrical Characteristics (Top = Tc, VCC = 3.135 to 3.465 Volts)
Parameter Symbol Min. Typical Max. Unit Note
Supply Voltage Vcc 3.135 3.3 3.465 V
Supply Current Icc

350 mA
Inrush Current Isurge

Icc+30 mA
Maximum Power Pmax

1.5 W
Transmitter Section
Input differential impedance Rin
100
Ω 1
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) V -0.3
4 V
Single ended data input swing Vin PP 180
700 mV 2
Transmit Disable Voltage VD 2
Vcc V 3
Transmit Enable Voltage VEN Vee
Vee+0.8 V
Transmit Disable Assert Time Tdessert

10 us
Receiver Section
Rx Output Diff Voltage Vo 300
850 mV 3
Data output rise time tr

30 ps 4
Data output fall time tf

30 ps 4
LOS Fault Vlosfault 2
Vcc_host V 5
LOS Normal Vlos norm Vee
Vee+0.8 V 5
Notes:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Per SFF-8431 Rev 3.0.
3. Into 100 ohms differential termination.
4. 20% ~ 80%.
5. LOS is an open collector output. Should be pulled up with 4.7k-10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V.
Mechanical Dimensions
10Gb/s Duplex LC 10km Optical Transceiver Module
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business. Our company mainly produces optical fiber products.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: Please contact our sales team for payment terms and conditions.
