All Steel Fume Hood
All Steel Fume Hood
All Steel Fume Hood
All Steel Fume Hood
All Steel Fume Hood
All Steel Fume Hood
Specifications
MOQ :
2
Payment Terms :
T/T
Brand Name :
Yun wei
Certification :
ISO
Place of Origin :
Made in china
Model Number :
YV-T(G)-1500
Price :
100
Supply Ability :
1000pcs
Delivery Time :
40-50
Packaging Details :
pallet
Material :
All steel /Stainless steel /customuzation
MOQ :
2PCS
Color :
Customization yellow /green /blue /red
type :
walk in /table / floor model
Size :
1200/1500/1800 Customization
Description

size (customization): Laboratory local exhaust ventilation Ventilation Cabinet
Model: YV-T(G)-1500
Dimensions: Customizable / Automatic air volume adjustment

Product Specifications
1. Steel plate thickness: The main load-bearing frame uses 2.0m electrolytic steel plate, and the rest parts use 1.2m high-quality electrolytic steel plate;
2. Worktop: Uses 12.7mm thick brand-name solid physical board, which can resist various acids, alkalis, strong oxidants, waterproof, wear-resistant, heat-resistant, scratch-resistant, including strong acids and strong alkalis. The outer edge is double-layer edge sealing with thickened bidirectional arc corners, with excellent appearance and hand feel. The reverse side has a drip groove for protection of the lower cabinet;
3. Structure: The ventilation cabinet column part is a modular hanging plate, which is convenient for the later expansion and installation of accessories such as air, water, circuit, control panel, VAV intelligent risk control system, power socket, etc. The door handle and window handle adopt aerodynamic design. When the window is completely closed, fresh air can enter the cabinet through the handle, and the specially designed air guiding arc-shaped handle can serve as the ventilation function of the ventilation cabinet, increasing the exhaust volume of the ventilation cabinet, timely and effectively discharging toxic gases, and improving the safety of operators. Both ends of the handle are equipped with aluminum profile positioning blocks, and the internal equipment power lines can pass through the space below the handle. The inner liner is made of laboratory-specific anti-corrosion material resistant to organic solvents, and has detachable maintenance holes for convenient maintenance of circuits, waterways, and airways. The 6mm thick guide plate enables harmful gases at different heights to be discharged from different heights. The 5mm thick safety explosion-proof glass is combined with a balanced combination, and the balanced part is designed in a non-segmented structure, allowing for arbitrary stay.
4. Surface treatment: After acid washing and phosphating, it is sprayed with epoxy resin powder and baked at high temperature for curing, with a beautiful appearance, high adhesion, and extremely strong surface hardness and corrosion resistance: 100% internal components
5. Air volume is automatically adjusted according to the probe data;
6. Customizable 304 stainless steel material.



Model YV-T(G)-1200 YV-T(G)-1500 YV-T(G)-1800
External Dimension
(W*D*H)(mm)		 1200*850*2350 1500*850*2350 1800*850*2350
Internal Dimension
(W*D*H)(mm)		 960*680*1150 1260*680*1150 1560*680*1150
Base Cabinet Dimension
(W*D*H)(mm)		 1200*800*850(Can remove) 1500*800*850(Can remove) 1800*800*850(Can remove)
Exhaust air volume 700-1300m3/h 900-1700m3/h 1300-2100m3/h

Air Velocity

 0.3~0.8 m/s


Accessories
Standard accessories
  • 1 single faucet for the workbench

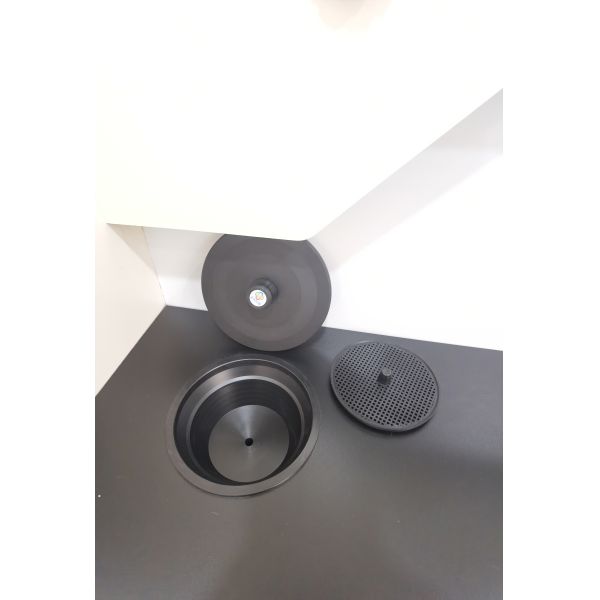

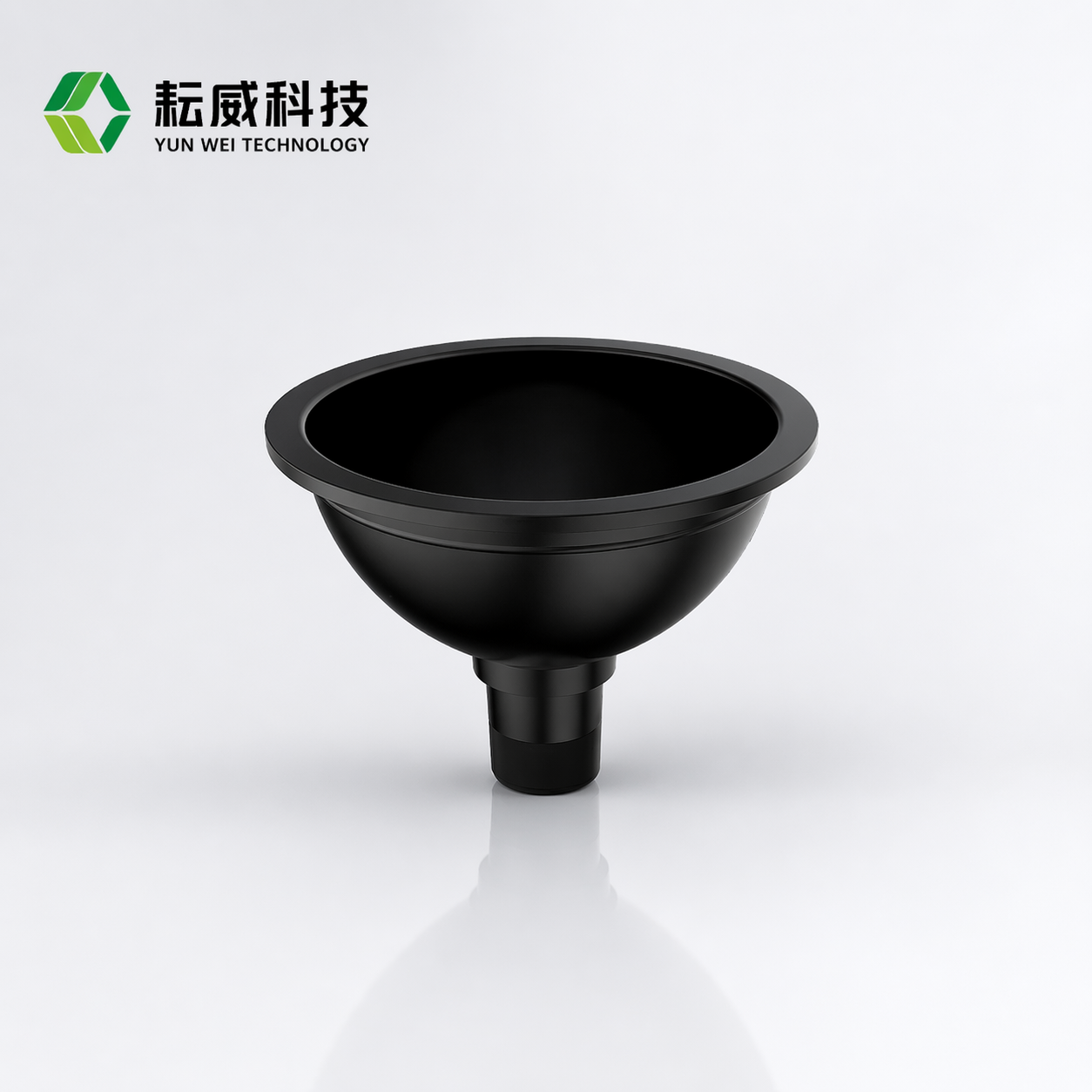

  • 1 PP oval cup sink
  • 4 power sockets
  • 1 250 or 315 mm high-pressure PP range hood
Optional Accessories
  • Remote control lamps, gas and faucet
  • Explosion-proof lights
  • Distillation grid kit
  • Acidic and flammable bottom cabinets
  • Exhaust blower (with three-speed adjustment) Ventilation duct

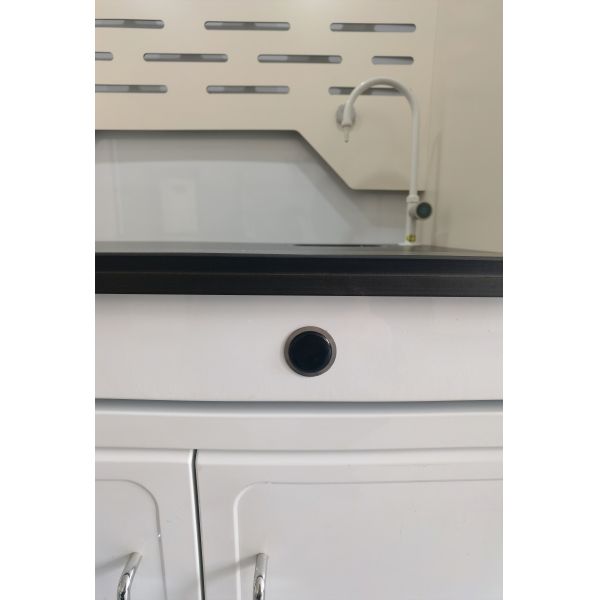

All Steel Fume Hood Knee touch switch

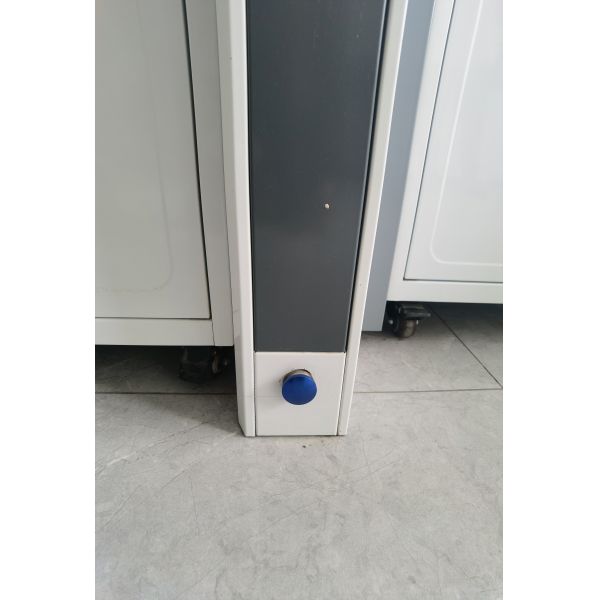

All Steel Fume HoodFoot touch switch

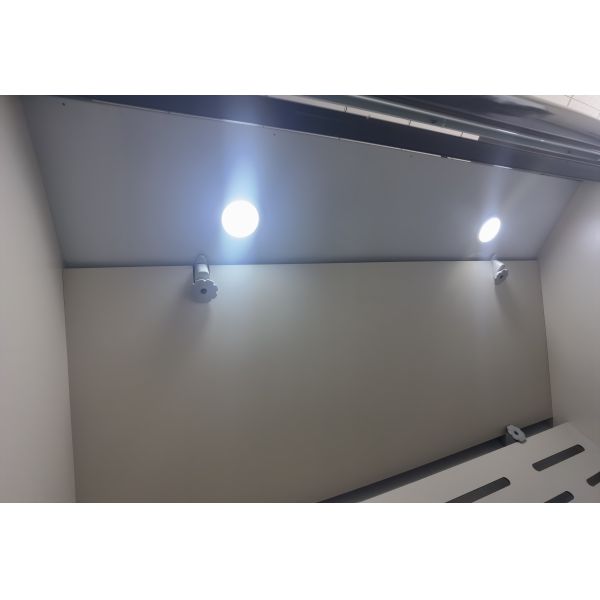

All Steel Fume Hood inside the fume hood

All Steel Fume Hood

All Steel Fume Hood
