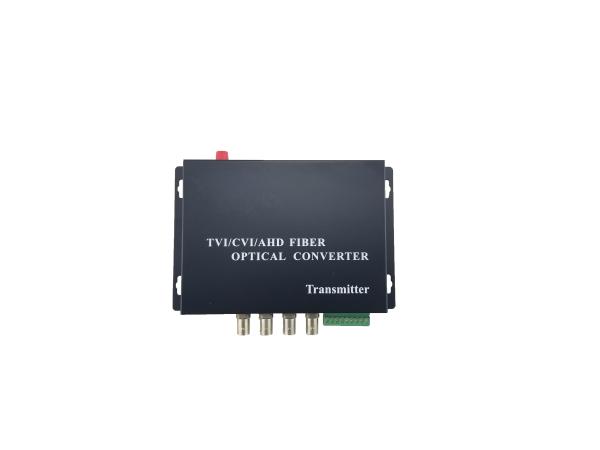

Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data
Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data
Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data
Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data
Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data
Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data
Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data
Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data
Specifications
Brand Name :
HOLink
Model Number :
H-CVI/TVI/AHD-8V-T/RF
Certification :
CE RoHS
Place of Origin :
CHINA
MOQ :
15 PAIRS
Price :
USD 1-160 1 PAIR
Supply Ability :
10000PAIRS ONE MONTH
Delivery Time :
1-3 workdays
Packaging Details :
international standard package
Number of Channels :
1~16
Type :
HDCVI TVI AHD
Video Bandwidth :
45MHZ
Power Consumption :
≤6W
nput/output impedance :
BNC 75Ω (unbalance)
Installation :
Wall mount
Description

HD video AHD CVI TVI Fiber optical converter, 4-CH 720P 960P video fiber optic transmitter with reverse RS485 data

Product Description

Introduction

Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

Devices are available for either standalone or rack-mount installation, which is suitable for

different working environment .

Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

Feature:
Non-compression coding technology.
Automatically identify formats of input videos.
Support 4ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable.
DC 5V power supply.
Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc.
Through LED indicators to inform its functional mode.
Industrial wide range of operational temperature.
Plug and play, simple installation.

Application

² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)

Connection
Holink 4-CH 720P 960P HDCVI/TVI/AHD Video Fiber Optic Transmitter With 1 Channel Reverse RS485 Data

Video:

Number of Channels 1~8
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Installation Wall mount
MTBF ≥ 100000Hours
