Specifications
Brand Name :
Ho-link/OEM
Model Number :
HL-1V-20T/R/HD-SDI
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1 Pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pairs/month
Delivery Time :
3 working days after received your payment
Packaging Details :
Neutral /Standard/Customized packing
Product Name :
HD-SDI video to fiber converter
Data format :
RS422, 485 (2 or 4line)
Rise/fall time :
< 270pS (1.485Gbps)
Reflection loss :
> 15DB
Connector :
FC / PC (SC / PC optional)
Connecter :
BNC 75Ω
Description

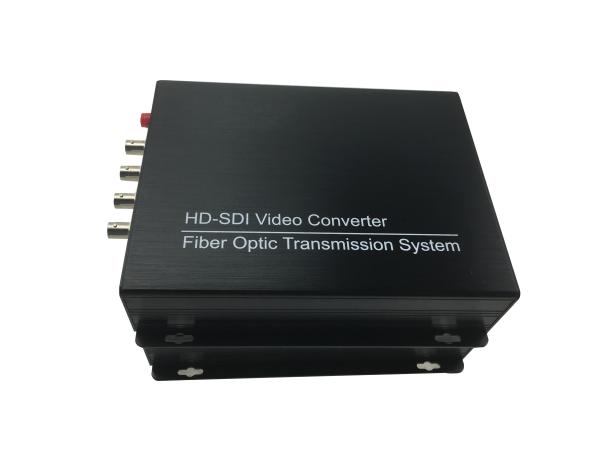

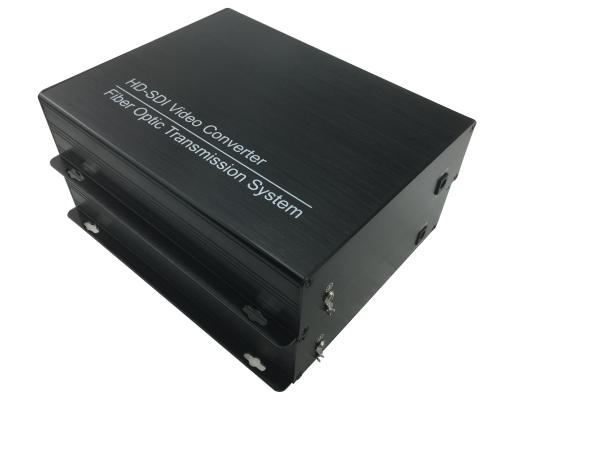

4ch Security HD-SDI TO Fiber Optic/CCTV 4 port HD-SDI fiber transceiver Mulitmode Wavelength 1310/1550nm

Overview:

This SDI to Fiber extension set includes an SDI to Fiber Transmitter and Receiver for transmitting multi-rate SDI up to 18 miles (30 Km) over fiber using a single-mode or multi-mode fiber optic cable with ST connectors.

It is a miniature-style extension solution that supports all SDI formats up to 3G including; SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols.

To prevent signal loss, input signals are equalized and ouputs reclocked to 120 meters for 3G-SDI and 140 meters for HD-SDI.

Features:

« 4-ch HDSDI

« Range from 19.4Mb/s to 1.485Gb/s

« SMPTE 292M (1.485Gb/s) clock recovery

« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s

« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard

« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)

« 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)

« Optional network management system

« LED status indicators monitor the critical parameters

« Optional network system

« Support hot swap

« Stand-alone, 1U rack mount and 4U rack mount

Technical Indexes

HD-SDI Video
Channels Transmitter-1 input. Receiver-2 output
Signal Format SMPTE292M/259M/297M/305M/310M/344M (SMPTE424Moptional)
Signal rate 270Mbps~1.485Gbps (2.97Gbpsoptiona)
Input / output level 0.8Vp-p±10%
Reflection Loss >15dB

Cable transmission

(Belden 1694A)

 0~150m (1.485Gbps)
Rise/fall time < 270pS (1.485Gbps)
Jitter < 0.2UI
Overshoot < 10%
Connecter BNC 75Ω

Data
Channel One (reverse)
Data format RS422, 485 (2 or 4line)
Manchester code
Data rate DC-115Kbps (NRZ)
Operating Mode Full Duplex or Half Duplex
BER <10-9 (max link loss)
Connector Type Phoenix terminal

Optical
Operating wavelength 1310/1550nm or CWDM
Fiber type SM or Multimode
Link loss 12~30dB
Fiber 1
Connecter Type LC (FC/SC/ST optional)
Distance 20~120km

Power
Stand-alone 0.6A@12VDC
Rack-mount 0.6A@12VDC
Power Consumption

3W

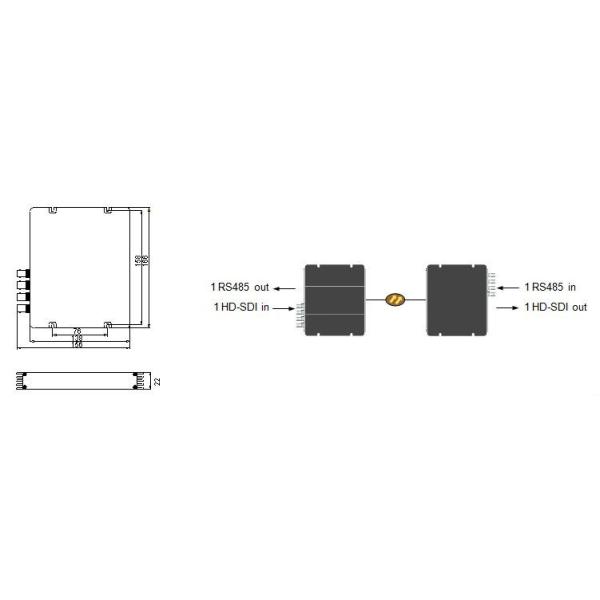

Dimensional Drawings (mm) Application Diagram

4 channels HD SDI To Fiber Converter CCTV HD-SDI Fiber Transceiver Multimode 1310/1550nm

Packaging & Shipping

4 channels HD SDI To Fiber Converter CCTV HD-SDI Fiber Transceiver Multimode 1310/1550nm

Company Information:

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
