Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam
Specifications
Brand Name :
HO-LINK
Model Number :
HL-3GSDI-1V1D-T/RF
Certification :
CE RoHS FCC
Place of Origin :
CHINA
MOQ :
10 pairs
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
6000pairs one month
Delivery Time :
3-5 working days after payment
Packaging Details :
international standard package
main products :
3G/HD-SDI, tvi/cvi/ahd video converter
Delivery :
3-5 working days
audio channel :
Forward/ Reverse Audio
input rating voltage :
5V
Optical Interface :
FC SC ST
MOQ :
one pair
Description

Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam

Overview

HD-SDI over Fiber high power video transmitter and Receiver

telecommunication equipment Transmitter and Receiver 1080P HD-SDI over Fiber

The HO-Link 3G-SDI Series offers broadcast quality HD/3G-SDI transmission over a single fiber. The 3G-SDI Series is SMPTE compliant ensuring consistent and reliable results, even when connecting through third-party SMPTE 297-2006 devices.

Ensuring interoperability is provided by adhering to SMPTE 259M-2006, 292-2006 and 297-2006.
Single mode support expands your installation possibilities and limits the technical hassles. When using Single Mode fiber, you will enjoy distance capabilities of up to 80 km. Choose from SMPTE compliant LC . Review our comprehensive data sheet for the precise specifications for your application.

Features

  • SMPTE 424M and 292M Compliant
  • Singlemode and multimode fiber options
  • Uses all-digital processing for crystal clear picture with no compression
  • Real-time video transmission for exceptional quality and resolution
  • Receiver contains SMPTE compliant cable driver and reclocker
  • Transmitter contains SMPTE compliant cable driver, adaptive cable equalizer, and reclocker

Specifications

3G-SDI Video
Power
Channels 1 Stand-alone 2A@5VDC
Signal Format SMPTE292M/259M/297M/305M/310M/344M Rack-mount 2A@5VDC
Input / output level 0.8Vpp±10% Power Consumption 5W
Reflection Loss >15dB

Cable transmission

(Belden 1694A)

 0~150m (1.485Gbps)
Physics
Rise/fall time < 270pS (1.485Gbps)
Jitter < 0.2UI
Overshoot < 10% Stand-alone (kg) 1.0
Connector Type BNC 75Ω Rack-mount (kg) 0.7

Optical
Wavelength 1310/1550nm or CWDM
Fiber type SM or Multimode
Link loss 12~30dB
Fiber 1
Connecter LC (FC/SC/ST optional)
Transmission Distance

20~100km

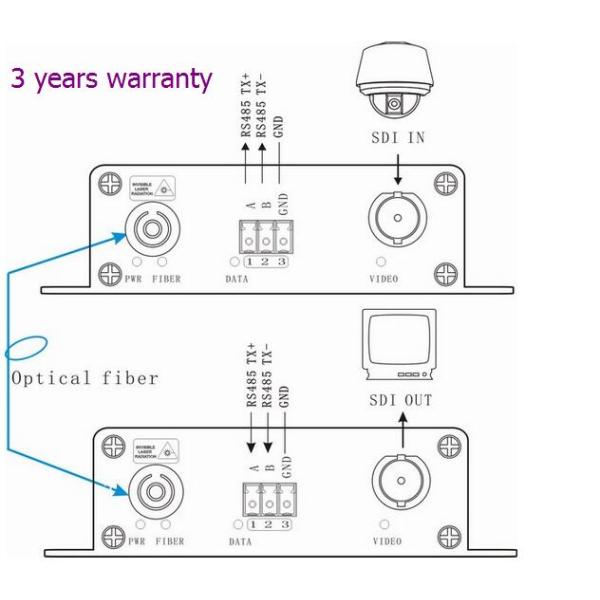

Connection Diagram:

Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam

Shipping and packing:

Digital 3G - SDI security video audio to fiber transmitter and receiver reverse control data to HD cam

Our Services

1.Any inquiries will be replied within 24hours

2.Professional manufacturer.

3.OEM/ODM avaliable:

1)Silk print logo on the front panel

2)Customized housing

3)Any your idea on our equipments we can help you to design and put it into production

4.High quality, fashion designs, reasonable and competitive price, fast lead time

5.After-sale service:

1)All products will have been strictly quality checked in house before packing

2)All products will be well packed before shipping

3)All our products have 1year warranty.

6.Faster delivery:

Sample order 1~3working days, and 3~7 working days for bulk production

7:Payment:

You can pay fro the order via: T/T,Western Union, Paypal and others, or place order directly on Aliexpress

8.Shipping:

We have strong cooperation with DHL, TNT,UPS,FEDEX,EMS and China Air Post

You also can choose your own shipping forwarder.

Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China


Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
