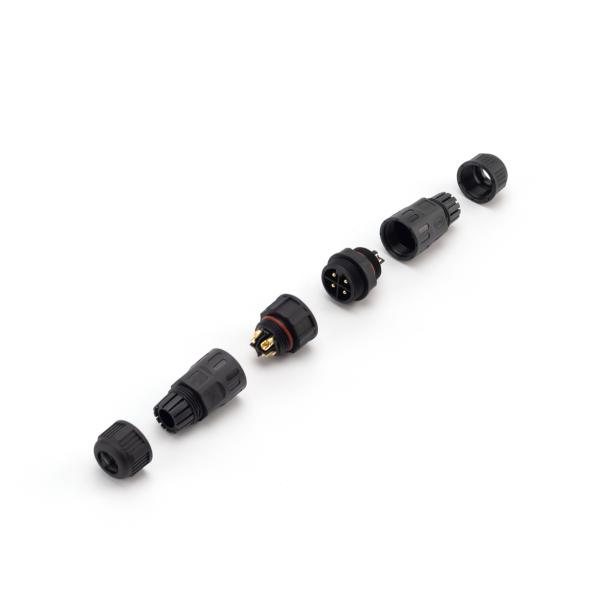

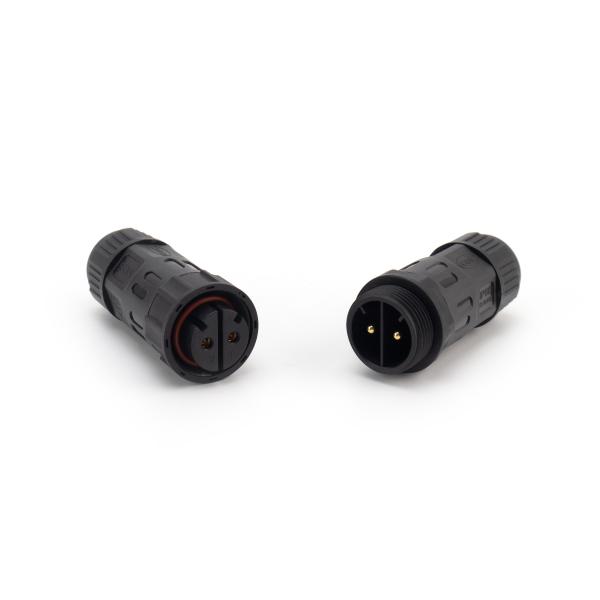

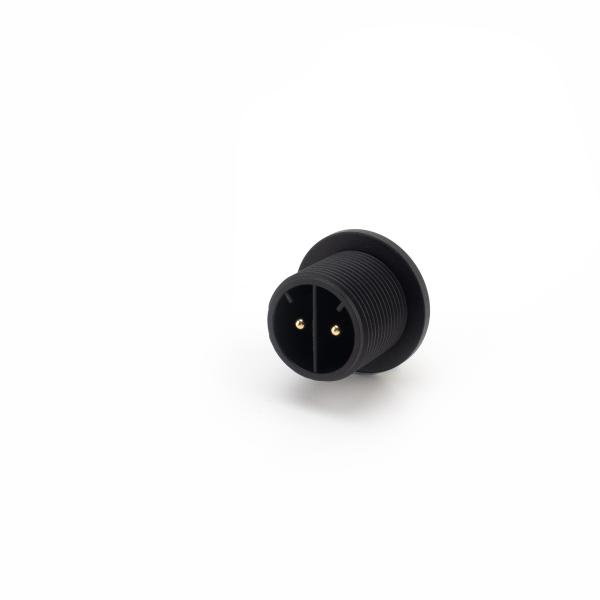

Nylon Straight Screw Waterproof Connector 30A M25 Panel Mount
Nylon Straight Screw Waterproof Connector 30A M25 Panel Mount
Nylon Straight Screw Waterproof Connector 30A M25 Panel Mount
Nylon Straight Screw Waterproof Connector 30A M25 Panel Mount
Nylon Straight Screw Waterproof Connector 30A M25 Panel Mount
Nylon Straight Screw Waterproof Connector 30A M25 Panel Mount
Specifications
Brand Name :
Xiangqian
Model Number :
M20 Screw Panel Mount
Certification :
UL
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000PCS/days
Delivery Time :
10-15 days
Packaging Details :
450*320*280
Application :
Industrial
Color :
Black
Connector Style :
Straight
Connector Type :
Screw Type
Current Rating :
30A
Gender :
PA66
IP Rating :
IP68
Material :
Copper
Number of Pins :
2-4
Product Name :
Screw Waterproof Connector
Size :
Standard
Temperature Range :
-40℃~105℃
Voltage Rating :
500V
Description
30A M25 Nylon Screw Type Plug Panel Mount Plug New Energy IP67 Waterproof Self-lock Connector
Detailed Product Description
Color: Black Material: Nylon
Certificate: CE/ROHS/IP Warranty: 3 Years
IP Rating: IP67/IP68 Optional Cores: 2 To 4
High Light:

Waterproof cable Connectors

,

Black Multi Pin Connectors Waterproof

,

M25 Waterproof Panel Mount Connector

Assembled M25 nylon 2-4pin waterproof panel mount connector for led screen

Detailed Product Description

Protection Level: IP68 Connecting Model: Welding
Pin: 2 to 4pin Current Rating: 20A
Model: M25 Voltage Rating: 300V

Operation Parameters
Voltage Rating 300VAC max
Current Rating 30A max
Min Wire Size OD 3.5mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 12mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2

Features:​

  • Rated current: 30A/10rms.
  • 2-4PIN power supply.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length

Applicaiton of M20 Connectors

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery

Nylon Straight Screw Waterproof Connector 30A M25 Panel Mount


FAQ

1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000 types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?


A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 5 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.

4.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

5.Q: What’s the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
