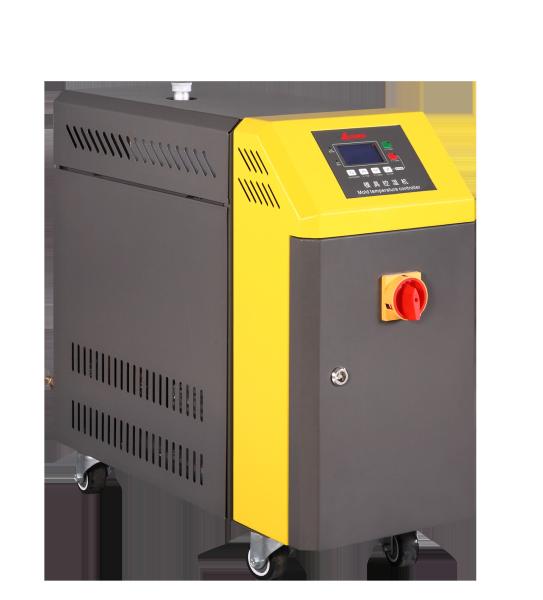

12kw Oil Type Temperature Control Unit For Injection Molding
12kw Oil Type Temperature Control Unit For Injection Molding
Specifications
Brand Name :
ANGES
Model Number :
AM-12H
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Delivery Time :
15 days
Packaging Details :
Plywood case
Type :
Oil type
Heat transfer medium :
oil
Heating power :
12kw
Oil temperature :
40 ℃ to 200℃
Application :
Plastic Injection Molding
Description

Mold Temperature Controller 12kw Oil Type Mold Temperature Controller Temperature Control In Plastic Injection Molding

Anges temperature controllers are specially designed to control the temperature of plastic injection mold, to maintain constant temperature of Mould during the Moulding process.It is engineered to provide precise temperature control.

Mould Temperature Controller is available in water and oil.The water type mold temperature controller water temperature can be maintained between 40 – 120°C and oil type temperature can be 40-300°C.

Item AM-12H
Heat transfer medium Oil
Max.Temperature ℃ 200
Heating power KW 12
Power 3PH-380V-50HZ
Pump power HP 0.5
Pump max.flow rate L/min 98
Pump max.pressure bar 2
Medium volume L 4
Cooling method Indirect cooling
Mould Cooling lnch 3/8"*4
Inlet/outlet size lnch 1"/1"
Dimension(mm) H 785
W 413
D 954
Net weight kg 70
Advantages of Mould Temperature Controller

  1. Simple and compact design, and easy to move

  2. Suitable for all kinds of mould for Injection Moulding Machine

  3. Precise temperature control to ensure the high quality of plastic injection molding products

  4. Easy connection for supply & return cooling circuit, by hose nipple

Features of Water type mold temperature controller

  1. Die temperature machine is also called die temperature control machine, specifically, die temperature machine is a kind of mechanical equipment including heating and cooling, used for industrial temperature control.

  2. Die temperature machine can be widely used in plastic molding, light plate die casting, rubber tires, rollers, chemical reaction kettle, bonding, mixing and other industries.
