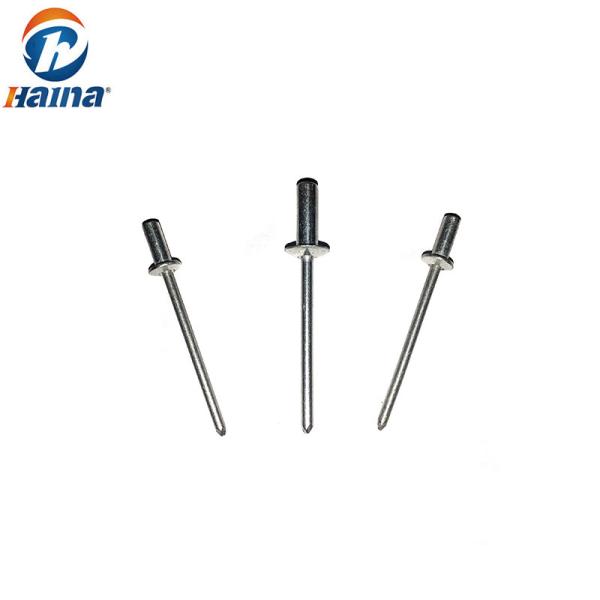

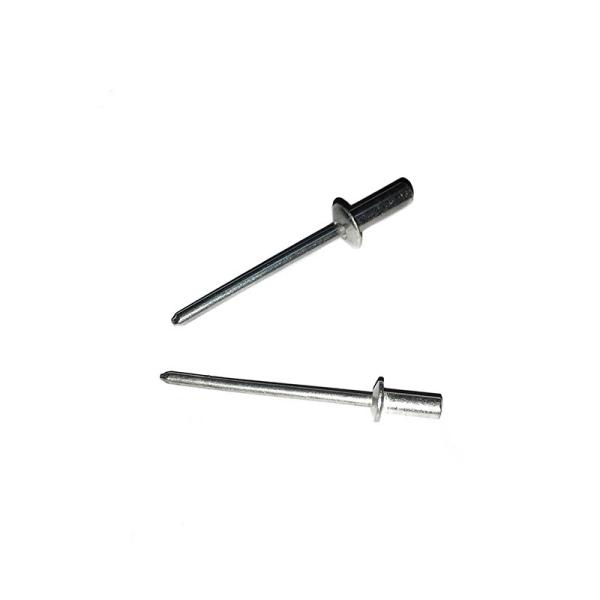

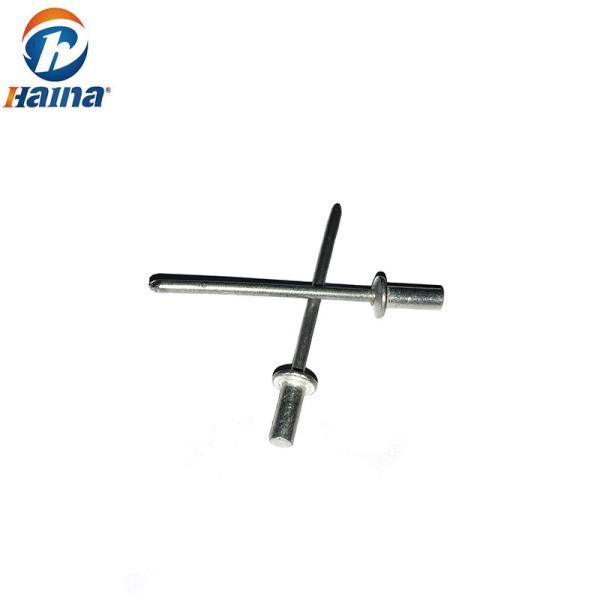

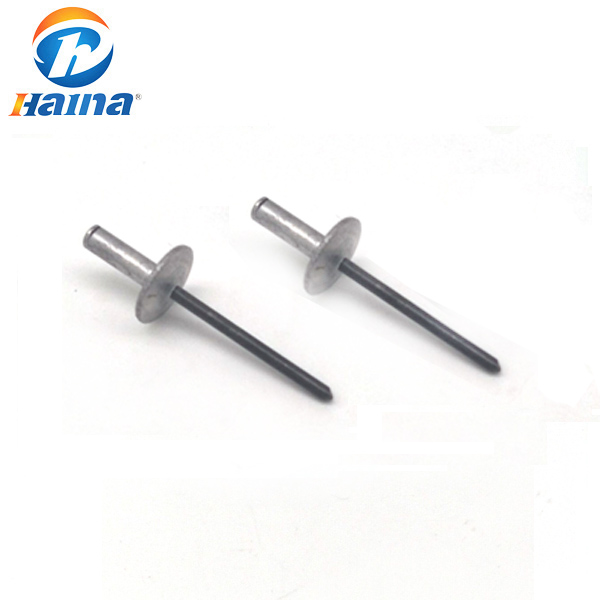

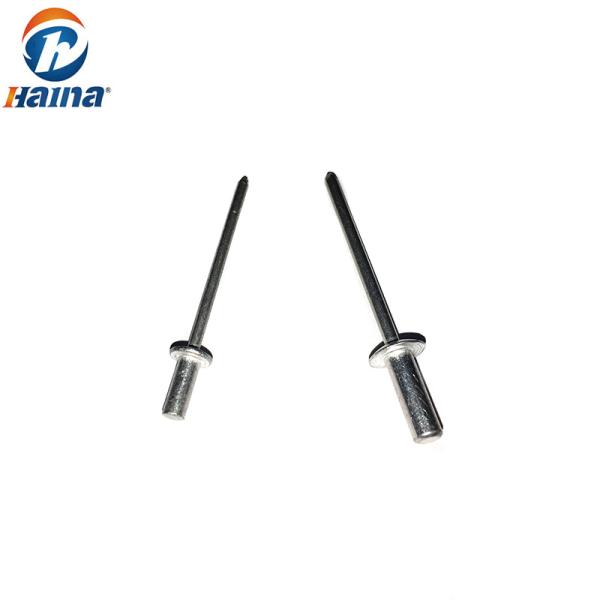

DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets
DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets
DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets
DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets
DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets
DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets
Specifications
Brand Name :
HNF
Model Number :
3*8 3*12 3.2*6 3.2*8 3.2*16 3.2*10 4*6 4*16 4*10
Certification :
ISO9001: 2015
Place of Origin :
CN
MOQ :
5000 piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
500 tons per month
Delivery Time :
10-30 days
Packaging Details :
Common export packing. Cartons+Pallets, or customized packing.
Product :
DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets
Surface :
polished
Material :
Aluminum
Head :
Countersunk Head
Inspection :
100%QC Steps Inspect Before Shipment
Connection :
Common nut
Process :
Cold Forging
Size :
3*8 3*12 3.2*6 3.2*8 3.2*16 3.2*10 4*6 4*16 4*10
HS Code :
73182300
Standard :
DIN,ASTM/ASME,JIS,EN,ISO,AS,GB
Description

DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets

Description

Blind rivets, commonly referred to as "pop" rivets are tubular and are supplied with a mandrel through the center. The rivet assembly is inserted into a hole drilled through the parts to be joined and a specially designed tool is used to draw the mandrel into the rivet. This expands the blind end of the rivet and then the mandrel snaps off.

Specification
DIN7337 Flat Head Close End Stainless steel / Aluminum Blind Rivet
Dia. D 3 3.2 4 4.8 5 6 6.4
Max 3.08 3.28 4.08 4.88 5.08 6.08 6.48
Min 2.9 3.1 3.85 4.65 4.85 5.85 6.25
Rod diameter Max 6 6 7.5 9 9 11 12
Min 5.6 5.6 7 8.5 8.5 10.3 11.3



Application
blind rivets are used mainly when access to the joint is available from only one side. The rivet is placed in a drilled hole and is set by pulling the mandrel head into the rivet body, expanding the rivet body and causing it to flare against the reverse side. As the head of the mandrel reaches the face of the blind side material, the pulling force is resisted, and at a predetermined force, the mandrel snaps at its break point, also called blind setting. A tight joint formed by the rivet body remains, the head of the mandrel remains encapsulated at the blind side, although variations of this are available, and the mandrel stem is ejected.

DIN7337 Flat Head Closed End Stainless Steel Aluminum Blind RivetsDIN7337 Flat Head Closed End Stainless Steel Aluminum Blind Rivets
