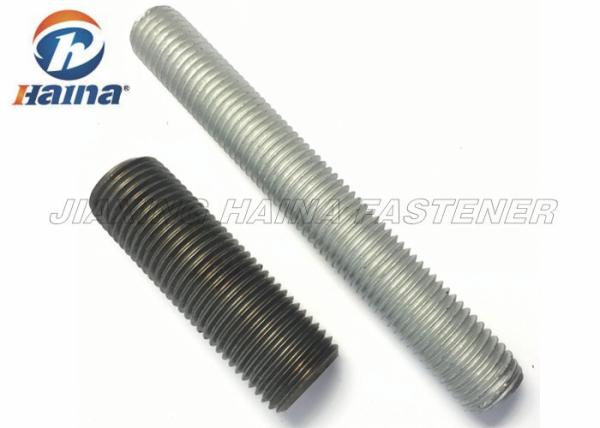

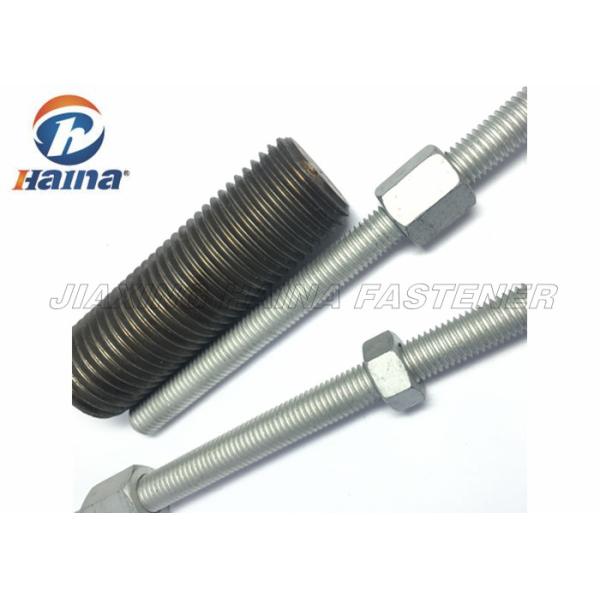

DIN975 Carbon Steel Material Black Coating Fully Threaded Rod For Building

Description:

Stud bolt is opposite, also known as the screw.Han furniture part name. Is the Ming and qing dynasties era.Gb is not found in the corresponding standard, corresponding DIN975. Different location to the name.Generally refers to surface box of a component that set up the connection between their legs.The furniture of waist is in the main connecting parts below the waist.In other parts of the article as teeth in general.In addition, also used in construction, the most decorated with.

Stud bolts are very commonly produced in.The length of the threaded rod shall be measured.overal,from end to end.The length tolerance on all threaded rods in nominal lengths of 6 ft and longer shall be +/- 1/2in. and +/- 1/4 in for nominal lengths less than 6 ft.

Threads: Unified threads shall conform to the requirements of ASME B1.1 For UNC and UNF threads ,Class 1A will be furnished unless otherwise specified. Plated threads shall conform to ASME B1.1,Class 3A high limit (basic) and the low limit requirement of the before-coated or plated thread class. Class 2A threads shall be used on 8UN threads and at the manufacturer's option for other series, and for sizes where 1A is not applicable.

Common ASTM A193 specifications:

ASTM A193 B6 Stainless steel, AISI 410, heat treated

ASTM A193 B7 Alloy steel, AISI 4140 or 4142, quenched and tempered

ASTM A193 B8 Class 1 Stainless steel, AISI 304, carbide solution treated.

ASTM A193 B8M Class 1 Stainless steel, AISI 316, carbide solution treated.

ASTM A193 B8 Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened

ASTM A193 B7M Similar properties as B7 but with specialized heat treating to create differing mechanical properties
