Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts
Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts
Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts
Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts
Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts
Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts
Specifications
Brand Name :
HNF
Model Number :
M6-M12
Certification :
ISO9001
Place of Origin :
China
MOQ :
2000 PCS
Price :
Negotiation
Payment Terms :
Western Union, L/C,T/T,
Supply Ability :
150 ton / per month
Delivery Time :
20-25 days
Packaging Details :
carton + pallet
Name :
Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts
Size :
M10
Available Material :
carbon steel
Connection :
nut , washer , flat gasket
The alias :
bend bolt
Application :
Machinery,Chemical Industry, Environmental,Building
Surface :
zinc plated , HDG , plain
Port :
Shanghai , Ningbo
Sample :
Available
Product :
Stainless Steel Bolts , Round / Square Bend bolts , U Type Bolts
Description

Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts

Description:

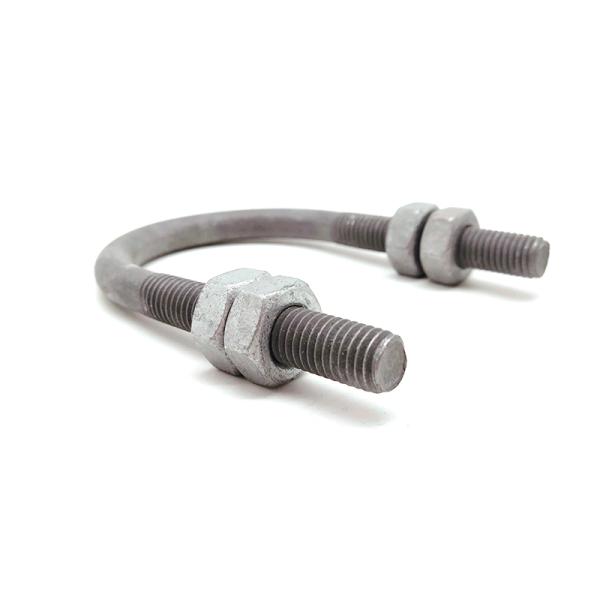

A U-Bolt is a U shaped type bolt with two threaded arms protruding from a curved base. There are many uses for a U-bolt such as attaching pipes to machines. And another a square shaped U-Bolt is almost used in lumber applications. Zinc plating, retards the corrosion rate in a normal atmosphere.A U-bolt is a bolt in the shape of the letter U with threaded on both ends.

Stainless Steel, U-Bolt, For Marine & Other Outdoor Applications, Resistant To Atmospheric Corrosion, Passivated For Superior Corrosion Resistance, Non-Magnetic, Bulk.Always a U-bolt will add 2 hex nuts, assembled. Manufactured from steel with stainless steel finish.

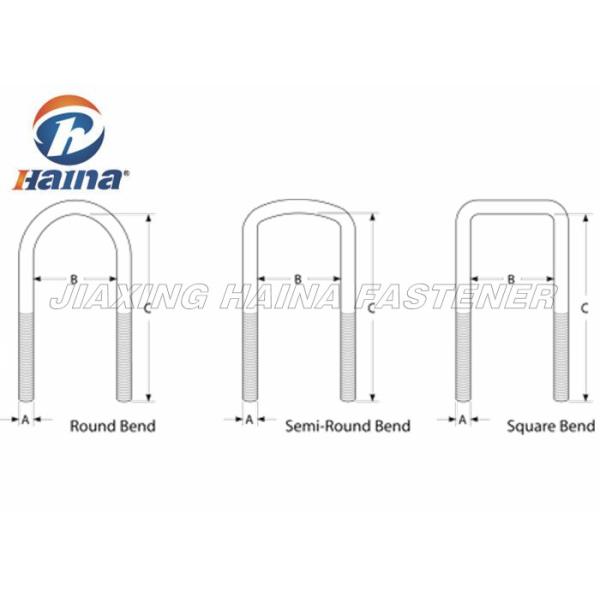

Bend Type: Round Bend , Semi-Round Bend , Square Bend

Diameter: M6,M8,M10,M12

Sufacce treatment: Zinc plating,Retards the corrosion rate in a normal atmosphere. Hot Dip Galvanized .

U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As known, U-bolts were measured using pipe-works engineering speak. A U-bolt would be described by the size of pipe.

Specification:

Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts

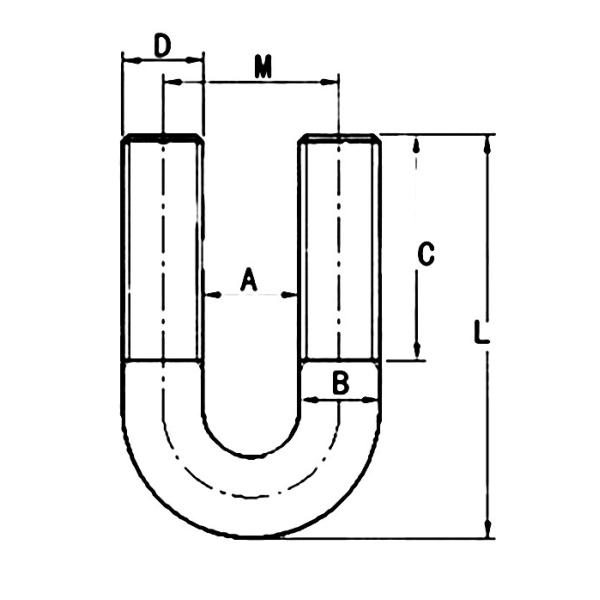

Size A pipe dia B shank C threaded D diameter M center L height
M10*25 27 8.9 28 10 37 56
M10*27 29 8.9 28 10 39 58
M10*33 35 8.9 28 10 45 64
M10*38 42 8.9 30 10 50 69
M10*42 44 8.9 30 10 54 73
M10*45 47 8.9 30 10 57 76
M10*48 50 8.9 35 10 60 82
M10*57 59 8.9 35 10 69 91
M10*60 62 8.9 35 10 72 94
M10*63 65 8.9 35 10 75 97
M10*76 78 8.9 40 10 88 110
M10*89 91 8.9 40 10 101 123
M10*102 104 8.9 40 10 114 136
M10*108 110 8.9 40 10 120 142
M10*114 116 8.9 45 10 126 148
M10*140 142 8.9 45 10 152 174
M10*159 161 8.9 50 10 171 193
M10*168 170 8.9 50 10 180 202
M10*219 221 8.9 55 10 231 263
M10*273 275 8.9 65 10 285 322
M10 series

Application:

Bolt in daily life and industrial production and manufacturing, is little not, bolt, also known as industrial meters.The use of visible bolts widely.

U normally used on the truck, it is used for auto turf and stable frame.Such as leaf spring is u-shaped bolts to connect.
U-bolt [1] wide range of USES, main use: construction and installation, machinery accessories, vehicle shipping, bridge and tunnel rail links, etc.Mainly shape: semicircle, square square, triangle, triangle, etc.

Installation:

1.Place the U-bolt around the pipe. The threaded should be point toward the object fastened.

2.Slide the U-bolt clamp over the part you are attached. Put the two U-bolt threaded ends into the two holes .
3.Place a washer on each of the threaded ends. Place a bolt on each threaded ends.
4.Turn the first bolt by hand in a clockwise direction until snug. Repeat this with the another bolt.
5.Fastener the bolts with the wrench. Follow the manufacturer’s recommendation

Related Products:

Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts

Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts


Advantages:


1) High quality in competitive price
2) Prompt delivery times
3) Various types of long- term supply professinal stainless steel screws

4) Customized services according to the samples and drawings offered.
