DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
Specifications
Brand Name :
XGFH
Model Number :
DIN6921
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.01-0.9usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs per month
Delivery Time :
5-15 work days
Packaging Details :
20-25KG/Carton Box and then pallet
Name :
Hex flange bolts
Standard :
DIN6921
Material :
Medium Carbon Steel
Grade :
Class 8.8
Finish :
Zinc plated
Style :
Hex flange
System of measurement :
Metric
Thread Fit :
Coarse 6g/6h
Thread Type :
Right hand
Threading :
Half Threaded
Description

Medium-Strength Metric Class 8.8 Steel Flanged Hex Head Screws

Product Description:

These Class 8.8 steel screws are suitable for fastening most machinery and equipment. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. All screws meet DIN 6921 specifications for dimensions. Head height includes the flange. Length is measured from under the flange.

Features:

Used in automotive applications,plumbing,and more,flange bolts feature a washer like flange beneath the bolt head that speeds production time and distributes the clamping load,offering protection to te mating surface.

Steel serrated flange bolts feature a scored grip under the head to help vibration.The serrated head bites into the surface to reduce vibration that can cause loosening.

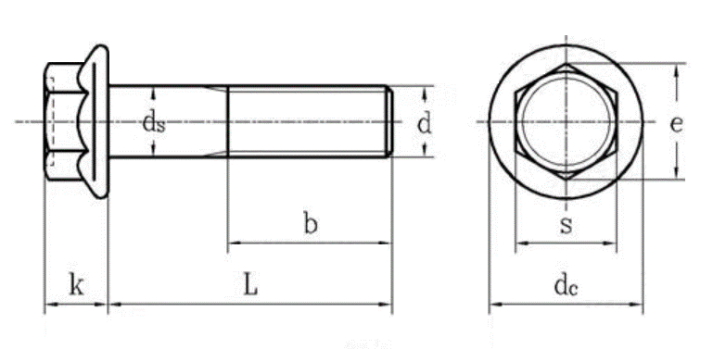

Product Drawing:

Hexagon flange bolts
DIN 6921-1983
DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
d(mm) P(mm) b(mm) dc(mm) ds(mm) k(mm) s(mm)
L≤125 125<L≤200 L>200 max min max max min max
M5 0.8 16 / / 11.8 4.82 5 5.4 7.78 8
M6 1 18 / / 14.2 5.82 6 6.6 9.78 10
M8 1/1.25 22 28 / 18 7.78 8 8.1 12.73 13
M10 1/1.25/1.5 26 32 / 22.3 9.78 10 9.2 14.73 15
M12 1.25/1.5/1.75 30 36 / 26.6 11.73 12 11.5 15.73 16
M14 1.5/2 34 40 / 30.5 13.73 14 12.8 17.73 18
M16 1.5/2 38 44 57 35 15.73 16 14.4 20.67 21
M20 1.5/2.5 46 52 65 43 19.67 20 17.1 26.67 27

DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8DIN 6921 Zinc Plated Bolts And Nuts Steel Hex Serrated Flanged Hex Head Screws Class 8.8
