16mm Laboratory Twin Screw Extruder For Plastic Compounding Bench Top Type
16mm Laboratory Twin Screw Extruder For Plastic Compounding Bench Top Type
Specifications
Model Number :
CHT16
Certification :
ISO9001, CE
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Supply Ability :
10sets/month
Delivery Time :
30-40 working days
Packaging Details :
Wooden Case
Machine :
Lab extruder
Application :
Plastic Compounding and Extrusion
Description

16mm twin screw laboratory extruder for plastic compounding with bench type

Special laboratory:

This micro lab extruder is designed for medical university and R&D center

The output could be from 15-1000g/hr, barrel length could be from 16-48(L/D) to meet various applications of compounding and reaction.

  • Optimum screw design based on different application is available.
  • Split barrel enable you to open the barrel as fast as you can to clean or check the melting status.
  • Modular screw, making you do different formulations and materials
  • Plug connection save your wire connection trouble
  • Civilian electricity is applicable for the machine running
  • PLC and touch screen control.
Technical Information:
No. Denomination of the delivery Qty.
1.0 Raw materials dealing units
1.1 Main feeder 1set

Motor power:0.2kw, Siemens motor

Feeding mode: by single screw,

Material contact parts are made of 304 stainless steel

With horizontal agitator inside the hopper to avoid material bridging

Volume:10L,

S.S made

Capacity: Max-20kg/hr

Siemens inverter
2.0 CHT16 granulating unit
2.1 CHT20A twin screw extruder 1set

Main motor:

Siemens motor, 1.5kw；

Safety degree: IP56

Siemens inverter

Power transmission:

Safety clutch torque limiter made by COWIN EXTRUSION

Gearbox:

High safety factor design;

Latest steel alloy material for gears applied with special heat treatment and manufactured at high precision level;

NSK bearings and imported seals applied,

Special lubricating system equipped combined with immersing and forcing solutions;

Input/output rotary speed:1500/600rpm；

Extrusion line:

Screw Diameter: 16mm,L/D:40:1；

Center Distance: 12.5

Maximum Screw speed:600rpm；

Screw configuration:with modular structure, torque transmission by spline;

Screw material: 38CrMoAlA, HV950-1050

Barrel configuration: with modular structure, each one with length of 6L/D and feeding barrel is 4L/D,and the barrels connected together by bolts and pins;

Barrel material: 38CrMoAlA ,HV950-1050,each section is connected by bolts

Temperature controlling:

Heating system: Cartridge heater from HT, total heating power with approx.3kw (No.1 Section cooled by water)；

Temp. controller:Siemens temperature module controller

Steel base:

Welding base with special pads;
3.0 Strand pelletizing line
3.1 Extrusion die plates 1pcs

Material:40Cr,with nitrifying heat-treatment;

The strand outgoing hole dia.: 4mm, 1 hole

Stainless steel plate unit for protection equipped;
3.2 Water bath 1set

150mmX700mm,

S.S bath

With leading rollers

Movable supporter
3.3 Air knife

Motor power:0.55kw

Two PU leading rollers

Made of stainless steel.
3.4 Pelletizer 1set

Max output: 10kg/hr

No. of strands: 3

Standard pellet: 3x3mm

Cutter dimension: 90x60mm,24 tooth

Effective rotation speed:350-1000rpm

Haul off speed:0-96m/min

Motor power: 0.37kw

Rotated cutter clearance: 0.08-0.12mm

Leading roller: PU

Frequency inverter: Siemens
4.0 Control cabinet 1set
4.1 Cabinet for extrusion line

Low-voltage electrics: Siemens

Speed regulator: Siemens inverter；

Temperature control panel: Siemens temperature module controller

OMRON medium relay from Japan

Power module is OMRON from Japan

Interlock design

The cabinet will be located under the base frame of the extruder
4.2 Siemens PLC and touch screen 1set

Siemens S7-200 PLC

Siemens TP900 touch screen

Profibus DP communication


Pictures:

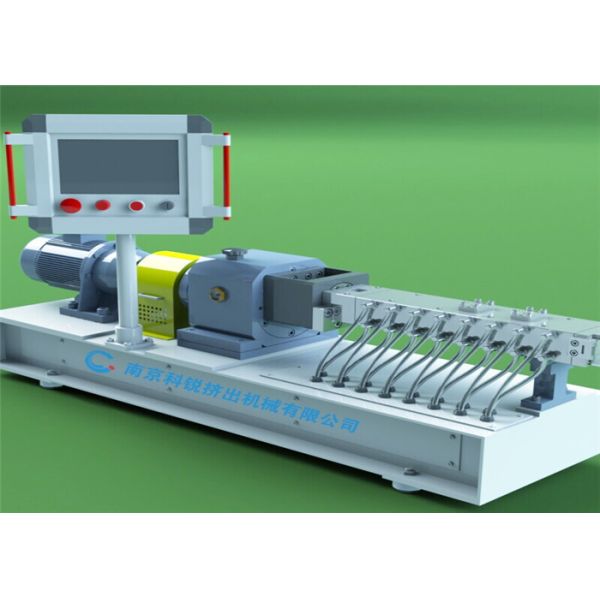

16mm Laboratory Twin Screw Extruder For Plastic Compounding Bench Top Type
