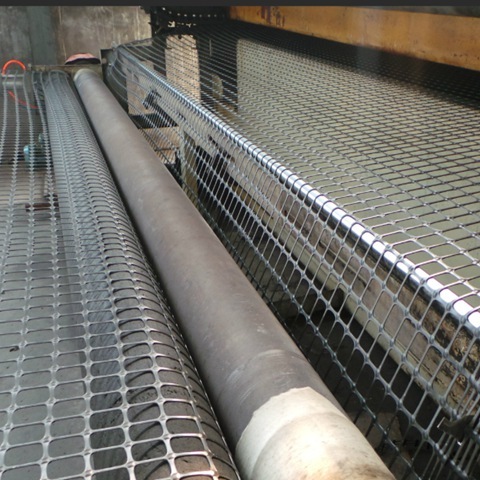

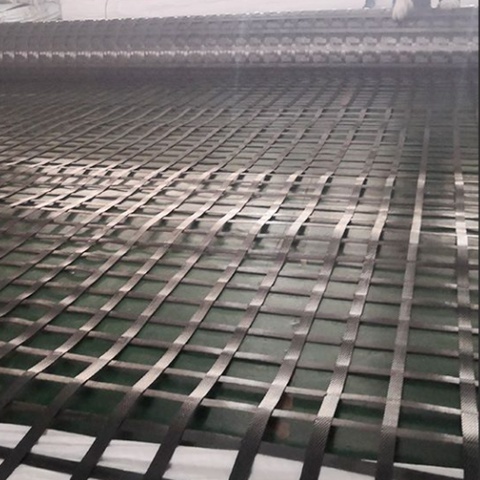

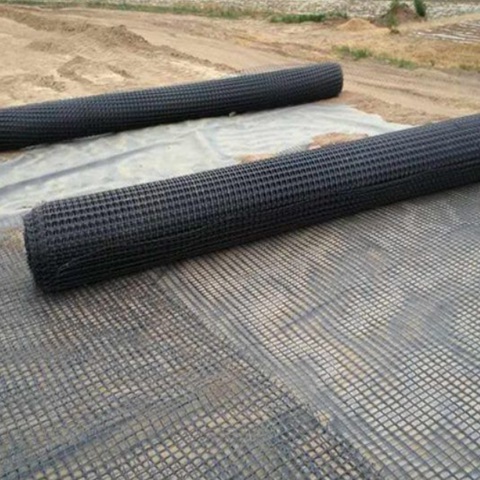

Heavy Duty Plastic Geogrid For Civil Engineering And Construction
Heavy Duty Plastic Geogrid For Civil Engineering And Construction
Heavy Duty Plastic Geogrid For Civil Engineering And Construction
Heavy Duty Plastic Geogrid For Civil Engineering And Construction
Specifications
Brand Name :
Shuntian
Model Number :
ST01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000m2
Price :
1.3-2.5$
Payment Terms :
T/T
Supply Ability :
100000000m2
Delivery Time :
20Days
Packaging Details :
Any requirement
Product Name :
Geogrid
Keywords :
HDPE Plastic Uniaxial Geogrid,PP Biaxial Geogrid
Mesh size :
12.7*12.7mm. 25.4*25.4mm,35mm*35mm,
Width :
1m--6m,Special Requests
Length :
50-100m/roll
Structuretype :
Uniaxial, Biaxial, or Triaxial
Material :
Polypropylene (PP) or Polyester (PET)
Elongationatbreak :
5-15%
Description

Heavy Duty Plastic Geogrid Designed For Civil Engineering And Construction

Plastic Geogrid

1. For highways, railways, airports, and other road enhancements;

2. For water conservancy, port, farmland reclamation, landfill, municipal construction and other projects;

3. For the maintenance of the old road (asphalt pavement, cement concrete pavement). such as widening;

4. For the subgrade strengtheing.

Fiberglass Geogrid Form

Item
Specification
Description
Material
PP (Polypropylene), PE (Polyethylene), PET (Polyester)
Food-grade raw materials, non-toxic and environmentally friendly
Type
Uniaxial Geogrid, Biaxial Geogrid
Uniaxial for one-way reinforcement; Biaxial for two-way reinforcement
Tensile Strength
Uniaxial: 20-150 kN/m;
Biaxial: 10-80 kN/m
Tested according to GB/T 17689-2014 standard
Elongation at Break
≤10% (at maximum tensile strength)
Low creep, stable performance under long-term load
Mesh Size
20×20mm, 30×30mm,
40×40mm, 50×50mm
Customizable according to project requirements
Thickness
1.5-5.0mm
Depends on material and strength grade
Width & Length
Width: 2-6m; Length: 50-100m/roll
Customizable roll size for easy transportation and construction
Service Life
≥50 years (under normal working conditions)
UV-resistant, corrosion-resistant to acid, alkali and salt

Performance Indicators

150g or 200g of geotextiles and 30 or 40 kN/m PP biaxial geogrid composite. Another: specific models of geogrid and geotextile can be customized as required. Geogrid with a width of 3.95m and 5.95m.
