Specifications
Brand Name :
JIARUN
Model Number :
S1 Single Layer 9*50*2000mm 9*30*2000mm
Place of Origin :
GangDong China.
MOQ :
100 ROLLS
Price :
xiang tan
Payment Terms :
T/T
Supply Ability :
2000 ROLLS / MONTH
Delivery Time :
7-10 Work Day.
Packaging Details :

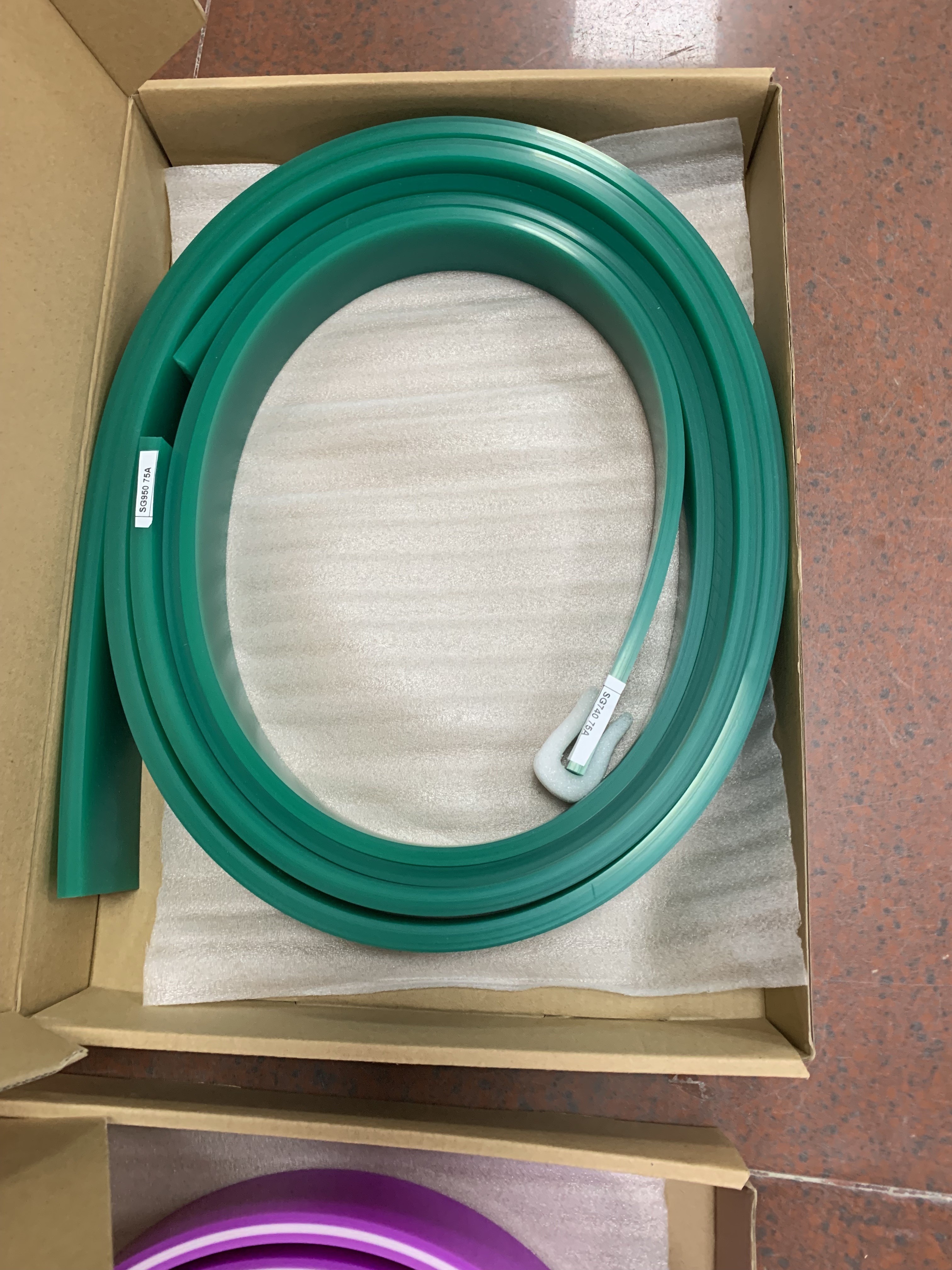

2m / Roll; 5Roll/Carton.
Description

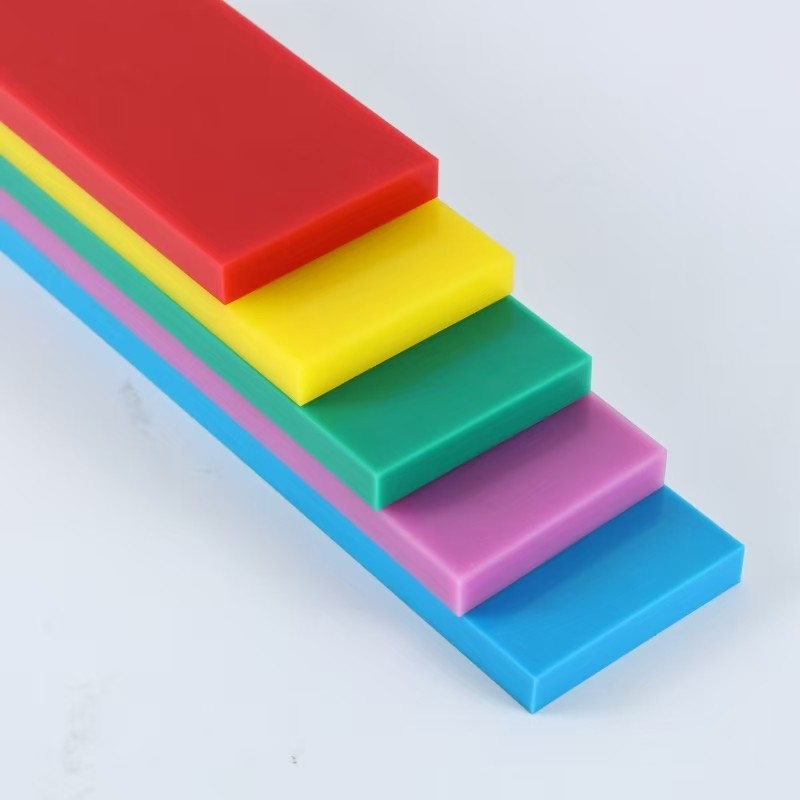

High Performance Professional Squeegee Rubber / Polyurethane Blade For Screen Printing 5*25 9*30 9*50 SHA 65 70 75 80 85

Seriblade® S1 Series: Single Layer Standard Series


Based on high-performance MDI cast polyurethane elastomer
Universal single-layer blade with cost-effectiveness
Compatible with water-based, solvent-based, and UV inks
Comparable to single-layer blades from the UK, France, and other regions
Suitable for most screen printing applications, including:

Printed Circuit Boards (PCBs)

Touchscreens

Textiles

Plastic bottles

Outdoor advertising

CD/DVD manufacturing

High Performance Screen Printing Squeegee Blade Professional 5*25 9*30 9*50 SHA 65 70 75 80 85

Technical Data

Physical Properties Values Units Standard

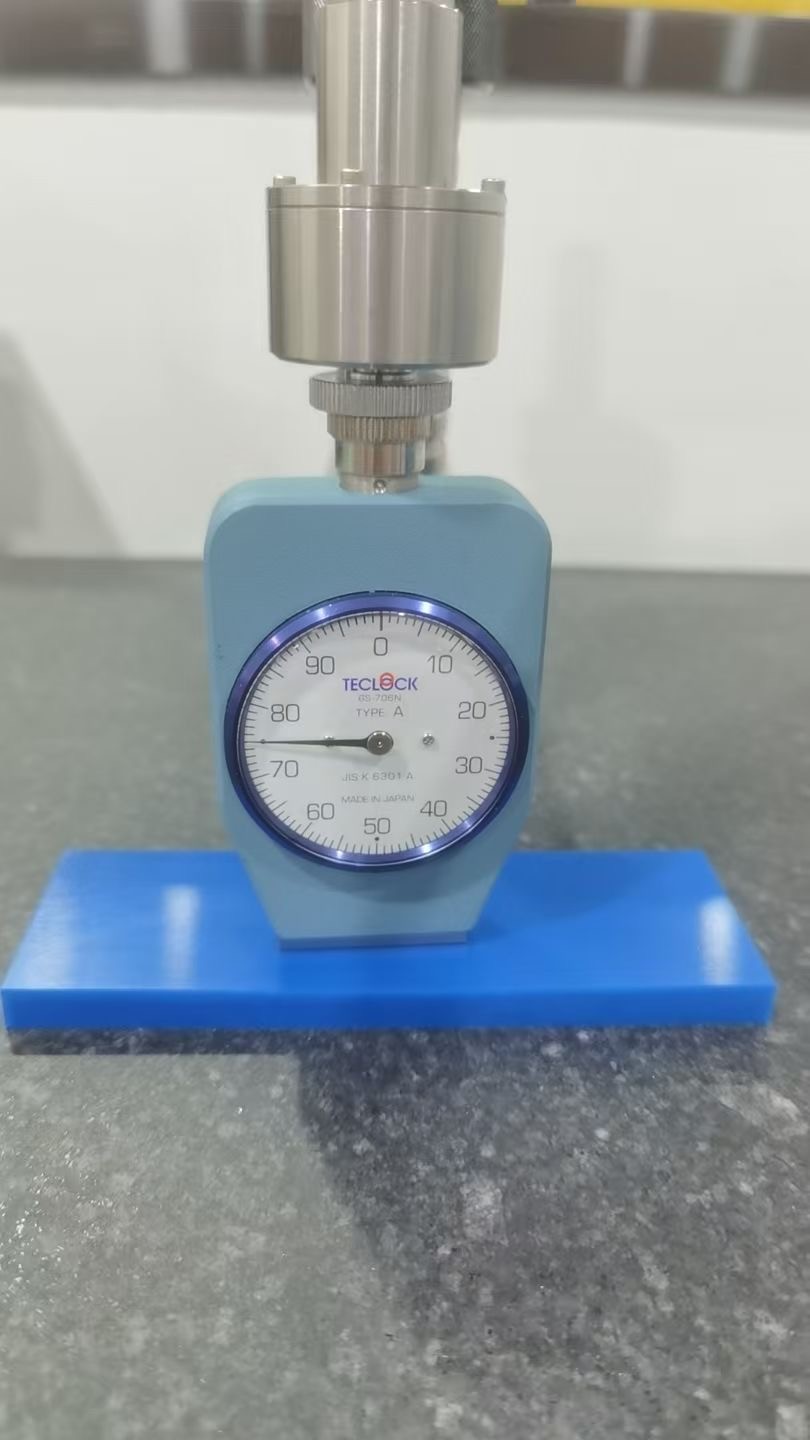

Hardness 75 SH A DIN 53505
Tensile strength @ break 35.5 Mpa DIN 53504
Tensile strain @ break 508 % DIN 53504
Tensile stress @ 100% elongation 2.87 Mpa DIN 53504
Tensile stress @ 300% elongation 6.03 Mpa DIN 53504
Tear strength (Die C) 60.5 KN/m DIN 53515
Abrasion resistance-volume loss (DIN) 21.6 mm³ DIN 53516
Rebound resilience 35% % DIN 53512
Solvent swell mass increase-24hrs immersion incyclohexanone (783# open oil) 8.9 % Ref. BS ISO 1817
Solvent swell thickness increase-24hrs immersion incyclohexanone (783# open oil) 7.5 % Ref. BS ISO 1817
Solvent swell hardness decrease-24hrs immersion incyclohexanone (783# open oil) -9 SH A Ref. BS ISO 1817
Working environment temperature 0/+60 °C —

High Performance Screen Printing Squeegee Blade Professional 5*25 9*30 9*50 SHA 65 70 75 80 85

High Performance Screen Printing Squeegee Blade Professional 5*25 9*30 9*50 SHA 65 70 75 80 85

Specification

Specification Value Range Tolerance
Length 10~2000mm +/-10mm
Width (8~10mm) 8~10mm +/-0.2mm
Width (10~50mm) 10~50mm +/-0.3mm
Width (50~100mm) 50~100mm +/-1.0mm
Thickness 2~20mm +/-0.3mm

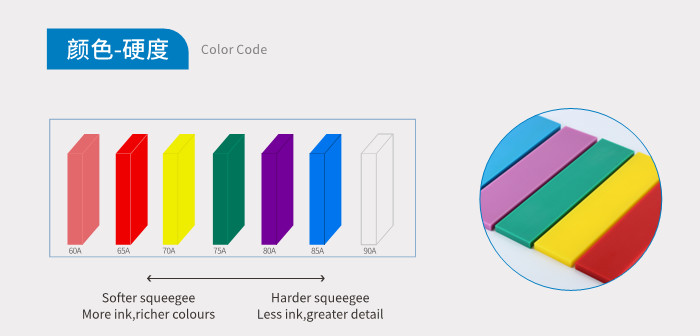

Hardness 60°~90° SHA, one specification per 5° +/-3 SHA
Note Maximum length is 2000mm. Specific dimensions, edge and hardness can be customized per customer requirements. —

High Performance Screen Printing Squeegee Blade Professional 5*25 9*30 9*50 SHA 65 70 75 80 85
