316L Round Wire Mesh Screen ,Twill Weave Wire Mesh 0.5 Micron Ultra Fine
316L Round Wire Mesh Screen ,Twill Weave Wire Mesh 0.5 Micron Ultra Fine
316L Round Wire Mesh Screen ,Twill Weave Wire Mesh 0.5 Micron Ultra Fine
316L Round Wire Mesh Screen ,Twill Weave Wire Mesh 0.5 Micron Ultra Fine
Specifications
Brand Name :
R&K
Model Number :
S-11
Certification :
SGS
Place of Origin :
Hebei,China
MOQ :
1square meter
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union，PayPal
Supply Ability :
1000 pieces per week
Delivery Time :
5-8 work days
Packaging Details :
Inside:bubble wrap Outside :wooden case or as required
Material :
316L stainless steel
Filter rating :
99%
Weave type :
Twill wave
Color :
Silver / black
Type :
Filter element
Product name :
Sintered mesh
Description

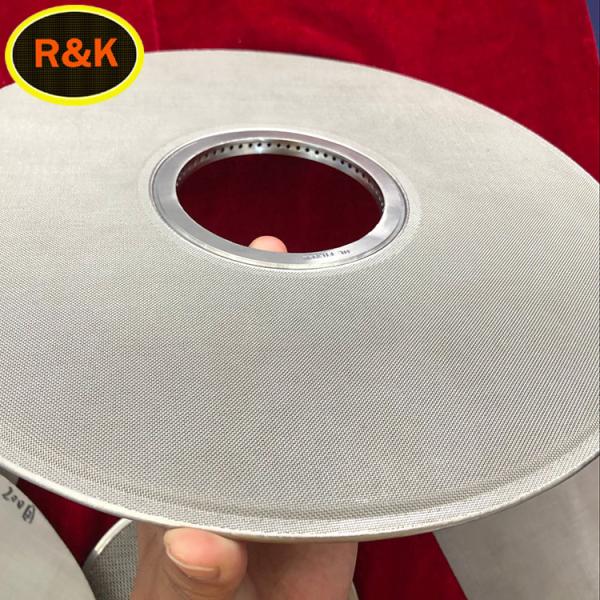

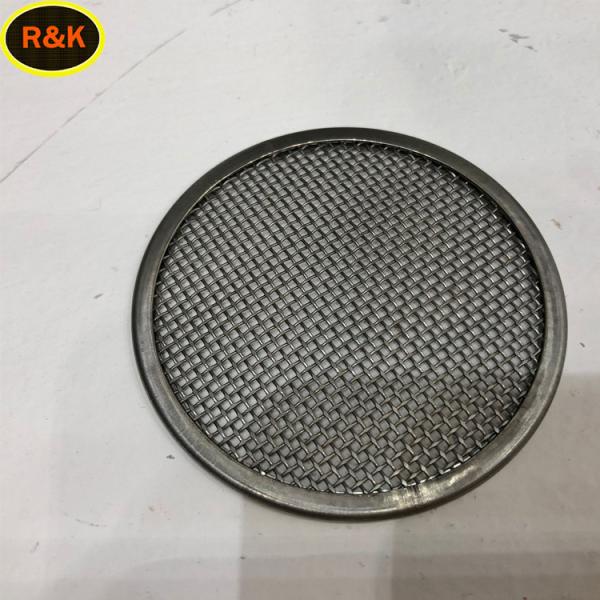

Round shape 316L 0.5 micron ultra fine stainless steel sintered filter mesh

Product Description


Sintering and pressing can make each layer of stainless steel wire mesh stick and fuse together, with high mechanical strength and overall rigidity, and easy processing (cutting, stamping, bending, welding).


Our main products include

Five-layer sintered mesh
Sintered mesh laminate
Sintered mesh with perforated metal
Sintered metal filter
Sintered metal filter disk
Folded sintered mesh filter
Sintered cone filter
Sintered metal fiber felt.

Product Feature

1.Surface filtration

2. Corrosion resistance

3. High temperature resistance

4. Filtering accuracy is stable

5. High strength and rigidity

6. The mesh is smooth

7. Easy to clean and can be used repeatedly.

8. Easy to shape, process and weld


Product usage


Stainless steel sintered mesh laminates are available in a wide range of filtration grades for water treatment, liquid and gas filtration, beverages, medical, chemical processing, food and beverage, pharmaceutical and transportation industries.

Sintered mesh can be used for filtration of polymers, chemicals, foods, hydraulic oils and fuels, pharmaceuticals and cosmetics, water and emissions. It is also used for the fluidization of bulk materials in gravity conveyors, trucks, conveyors, storage silos, dryers, bulk materials and coolers.


Product Parameters
Note: This list for a reference, not for the complete list.

Nomin
al filter rating

structure prodextive layer+control layer
+dispersion layer+ reinforce layer+ reinforce layer

 Thickness (mm) air perm eabilit Bubble pressure (mm) weight (kg/m2)

porosity
(%)
1 100+400*2800+100+12*64+64 1.7 1.81 360-600 5 layer 8.4 40%
5 100+200*1400+100+12*64+64 1.7 2.42 260-550 6 layer 14.4 40%
20 100+165*800+100+12*64+64* 1.7 4.5 170-450 40%
200 40+80+40+20+40+80+40 2 26 50-150 40%

316L Round Wire Mesh Screen ,Twill Weave Wire Mesh 0.5 Micron Ultra Fine
