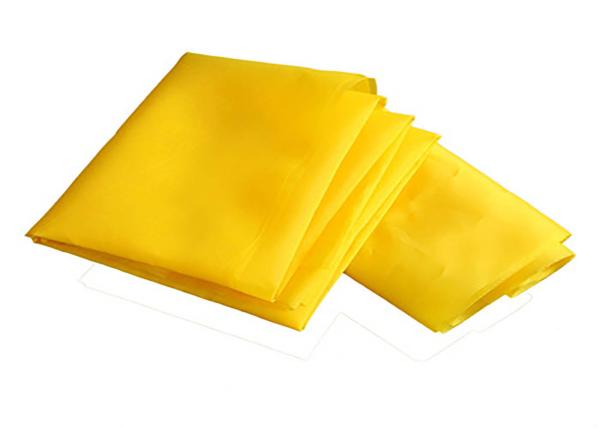

43t 110 Yellow Color Nylon Silk Screen Printing Mesh Roll
43t 110 Yellow Color Nylon Silk Screen Printing Mesh Roll
43t 110 Yellow Color Nylon Silk Screen Printing Mesh Roll
43t 110 Yellow Color Nylon Silk Screen Printing Mesh Roll
Specifications
Place of Origin :
Hebei, China
Brand Name :
R&K
Model Number :
SPR-05121-6
Packaging Details :
Paper tube inside,air bubble film outside and then put into wooden case.
Supply Ability :
10000 Square Meter/Square Meters per Week
Price :
$3.00 - $15.00/Square Meters
MOQ :
1m
Mesh Count :
33 mesh-420mesh, 110
Name :
43T 110 Yellow Color Nylon Silk Screen Printing Mesh Roll
Weave Type :
Plain
Elasticity :
High
Printing :
Polyester Screen Printing
Monofilament Style :
YES
Mesh Count Diameter :
43T
Thickness :
130 um
Aperture :
149um
Opening :
41%
Weight :
64g/m2
Color :
White Yellow
Application :
Screen Printing
Thread Diameter :
80um
Weave :
Plain Weave
Port :
Tianjin
Description

43T 110 Yellow Color Nylon Silk Screen Printing Mesh Roll

Descriptions of the silk screen printing mesh:

Withimported high quanlity material,advanced wire mesh instruments and technicians well trained by Swiss experts,we supply you first class polyester and nylon wire mesh products.

The width of the product which we produce as customer's requirement,the most width is 3.06 meters.

Mesh Count:33-420

Thread:31-150um

Thickness:2-14um

Aperture:23-619um

Features of the silk screen printing mesh:

High tension

Water-resistent

Low elongation

Wear Resistance

Long working life

Faster turnaround time

High quality

Good service

Application of the silk screen printing mesh:

Costume screen printing

Luggage ,shoes and hats screen printing

Home textiles screen printing

Advertising gifts screen printing

Outdoor products screen printing

Specifications of the silk screen printing mesh:


Mesh Count
Diameter
(Mesh/inch μm)		 Mesh
Count
(Mesh
/Inch)		 Weave Aperture
(μm)		 Thread
Diameter
(μm)		 Opening
(%)		 Thickness(μm) Thickness
Tollerance
(+/- μm)		 Theoretical
lnk(cm3/m2)		 Weight
(g/m2)
12-250 30 1:1 583 250 49 490 20 228 117
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
16-200 40 1:1 425 200 46 400 18 172 148
20-120PW(T) 50 1:1 380 120 58 210 11 122 76
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 1:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-34PW(S) 420 1:1 23 31 15 48 2 7 36
180-27PW(S) 460 1:1 23 27 16 43 2.5 7 31
Packaging & Shipping

Packaging Details:Paper tube inside,air bubble film outside and then put into wooden case.
Delivery Time:2-5 days after receive you payment.
