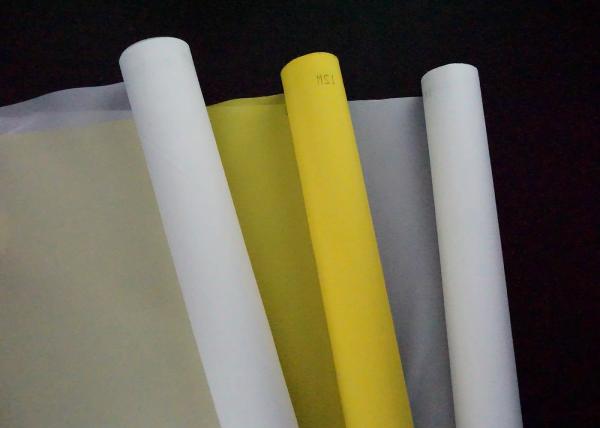

100% Polyester Mesh Screen Silk Screen Printing Mesh For PCB Printing
100% Polyester Mesh Screen Silk Screen Printing Mesh For PCB Printing
100% Polyester Mesh Screen Silk Screen Printing Mesh For PCB Printing
100% Polyester Mesh Screen Silk Screen Printing Mesh For PCB Printing
100% Polyester Mesh Screen Silk Screen Printing Mesh For PCB Printing
100% Polyester Mesh Screen Silk Screen Printing Mesh For PCB Printing
Specifications
Brand Name :
R&K
Model Number :
R&K-W
Certification :
FDA SGS
Place of Origin :
Hebei,China
MOQ :
50 meters
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Crdit Card.Trade asscurance
Supply Ability :
100rolls per months
Delivery Time :
3-8 days
Packaging Details :
kraft paper inside,and bubble film outside,then all be putinto woodcase
Material :
100% Polyester
Weave Type :
Plain
Features :
Low Elasticity
product name :
polyester silk screen printing mesh.
Roll length :
Staindard size 30meters
Mesh Count :
18 mesh-420 mesh
Description

Plain Weave High Tension 100% Polyester Silk Screen Printing Mesh For PCB Printing

1. Description of the silkscreen printing mesh:

The special width is available as customer's requirement,and the width is up to 3.6meter.

SS printing mesh is widely used in curver surface subject,like the Printed Circuit Board,Glass,Creamic,Metal,Rubber,Plastic and so on.it is very suitable for use harsh environments,multicolor overprint,Batch printing ect..

Material 100% polyester,stainless steel wire
Mesh count 18-420 mesh/inch
Mesh opening 25-1068 micron
Thickness 46-693 micron.
Printing polyester screen printing, silk screen printing

2. Specificaitons of the silkscreen printing mesh:

Mesh Count
Diameter
(Mesh/inch μm)		 Mesh
Count
(Mesh
/Inch)		 Weave Aperture
(μm)		 Thread
Diameter
(μm)		 Opening
(%)		 Thickness(μm) Thickness
Tollerance
(+/- μm)		 Theoretical
lnk(cm3/m2)		 Weight
(g/m2)
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 1:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-34PW(S) 420 1:1 23 31 15 48 2 7 36

3.Features of the silk screen printing mesh:

Super Precision

Low Elongation

High Flexibility

High corrosion resistance

Non-electrostatic

Good Heat-melting Resistance

Good Solvent Resistance

4. Application of silk screen printing mesh.

Improved fabric strength,faster tension atabilization,high tension and low elongation,precision bore,well-distributed,stabilization,superior stencil adhersion,time-dependent stability and good cohesion with sensitive emulsion.
