Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Specifications
Brand Name :
R&K
Model Number :
R&K-LLS
Certification :
FDA
Place of Origin :
Hebei , China
MOQ :
1 square meter
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability :
3000 square meter per month
Delivery Time :
in 5 days for goods in stock
Packaging Details :
waterproof paper inside,plywood case outside
Material :
SUS304N
Weave :
Plain weave
Size :
Usually 1.02meter*30meter Per Roll
Width :
1m,1.22m
Sample :
Free.The freight should be paid by buyer
Features :
Non-electrostatic
Description

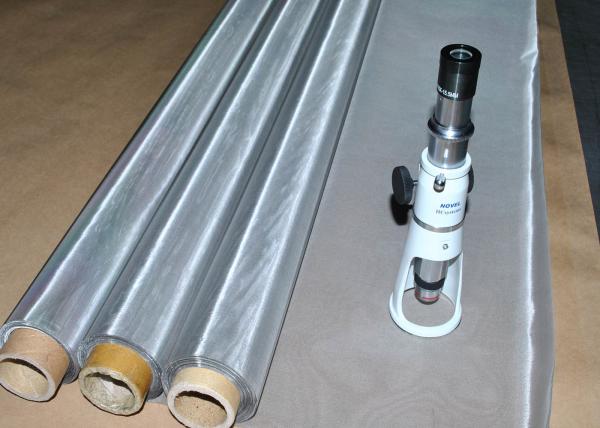

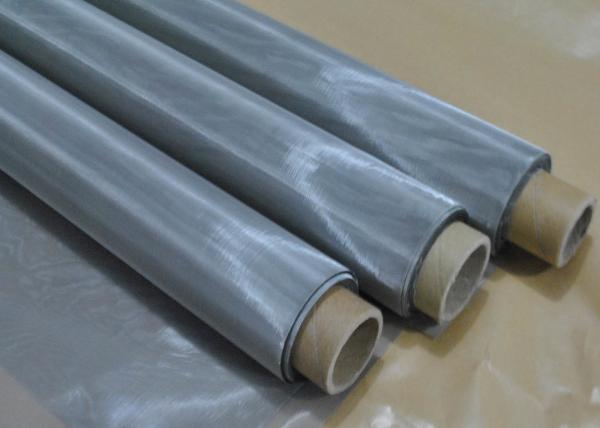

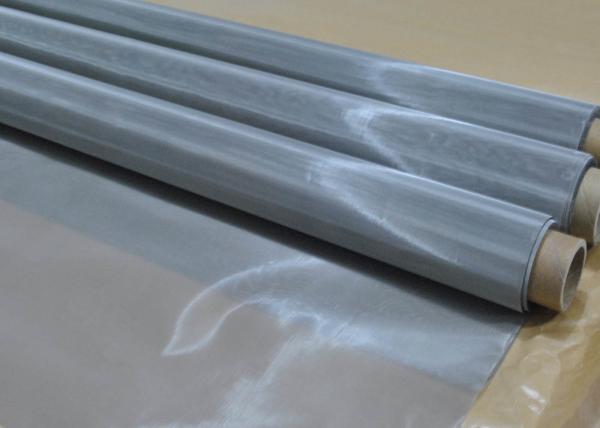

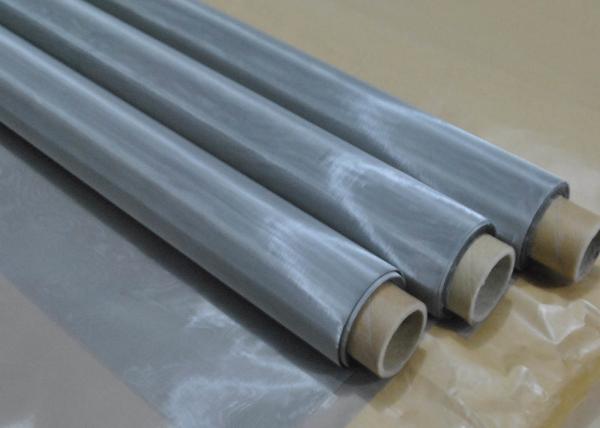

Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth

Description of the Steel Screen Printing Mesh :

Material SUS304N
Weave Plain weave
Features Non-electrostatic
Sample Free.The freight should be paid by buyer
Width 1m,1.22m

Crimp mesh is a coarse wire mesh.The coil diameter of crimping net is larger than that of stainless steel mesh. If the strength is high, the wire mesh can be crimped, which can be used as a safety net, a coal mine screen mesh and a wire mesh.

Dutch weave net is another kind of stainless steel woven wire mesh, the mesh with weft yarn count is different, the thickness is greater than the stainless steel mesh, Dutch woven mesh is widely used in environmental protection equipment of micron filtration material.

Featuers of the Steel Screen Printing Mesh :

High-Flexibility:The wire mesh will not lose elasticity at extremely tension.

High tension.Much higher tension than common polyester mesh,and this property is very stable.

Low Elongation:Very small elongation of wire mesh at igh tension.

High-Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.

Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.

Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.

Specification of the Steel Screen Printing Mesh :

Specification Mesh/inch Wire Dia (μm)

Open area Ratio(%)

Apereture

(μm)

Thickness(mm)

Calendered Thickness

(μm)

 Theoretical lnk(cm2/m2)
230*230*35 230 35 46.7 75 72-76 50-67 37.0
250*250*40 250 40 36.8 62 82-86 50-80 30.0
270*270*35 270 35 39.4 59 76-80 58-70 30.0
300*300*30 300 80 41.7 55 66-68 40-59 28.0
325*325*30 325 30 38 48 66-68 45-60 24.0
325*325*28 325 28 41.2 50 63-64 40-56 26.4
350*350*25 350 25 43.0 48 52-54 41-50 18.7
400*400*23 400 23 40.7 41 50-54 35-48 19.0
500*500*18 500 18 41.7 33 36-40 28-30 15.3
200*200*50 200 0.05 37 77 98-103 As order 42.0

Application of the Steel Screen Printing Mesh :

The stainless steel printing screen has many functions, such as making solar cells.pint board (PCB),chip electronic components,flat panel displays,liquid crystal display (LCD),plasma display panel (PDP), etc.

Please feel free to contact us if you wish to know more.
