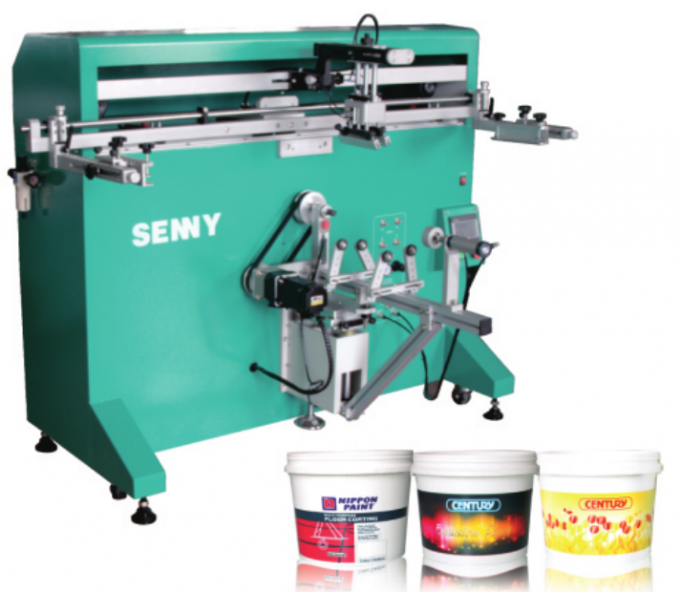

1000X250mm 600pcs/Hr SA1200-D2 Semi Automatic Screen Printing Machine For Bucket
1000X250mm 600pcs/Hr SA1200-D2 Semi Automatic Screen Printing Machine For Bucket
1000X250mm 600pcs/Hr SA1200-D2 Semi Automatic Screen Printing Machine For Bucket
1000X250mm 600pcs/Hr SA1200-D2 Semi Automatic Screen Printing Machine For Bucket
1000X250mm 600pcs/Hr SA1200-D2 Semi Automatic Screen Printing Machine For Bucket
1000X250mm 600pcs/Hr SA1200-D2 Semi Automatic Screen Printing Machine For Bucket
Specifications
Certification :
CE SGS
Worktable Selection :
Vacuum table
Packaging Details :
PLYWOOD PACKAGE
Pritnign Speed :
600pcs/hr
Place of Origin :
Dongguan China
Supply Ability :
100PCS/YEAR
Price :
Negotiation
Automatic Grade :
Semi Auto
Power Supply :
380V/50Hz
Model Number :
SA1200-D2
Payment Terms :
T/T
Delivery Time :
One Month
MOQ :
1PC
Warrenty :
one year
Maximum Printing Area :
350*550MM
Package :
Wooden Case
Operationmode :
Semi Automatic with Manual Loading
Brand Name :
SENNY
Description

Technical Specifications:

Mode SA400-D2 SAS400-D4 SA1200-D2
Container shape Cylindrical and Elliptical Irregular Cylindrical and Elliptical
Max. printing area 300X250mm 300X250mm 1000X250mm
Max.screen frame size 550X400mm 550X400mm 1200X400mm
Max.printing diameter Φ100mm Φ100mm Φ300mm
Max.printing speed up to 1000pcs/hr up to 1000pcs/hr up to 600pcs/hr


Technical Characteristics　

This is a well designed and versatile machine. The SA1200-D2 can screen print on cylindrical and Elliptical objects, and SA400-D4 can make screen print on irregular or complex shapes such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.

The SA1200-D2 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the SA1200-D2 the perfect all around universal screen printing press.

  • • Pneumatic controlled with shock absorbers
  • • Microprocessor controlled - PCB
  • • Vertical part lift with height adjustment
  • • Print stroke controlled with rodless cylinder
  • • X/Y/R positioning ware-mounting table
  • • Linear ball bearings on hardened shafts
  • • Squeegee tilt, skew, and height adjustable
  • • Screen frame angle & tilt adjustable
  • • Synchronized bottle inflation system with regulator
  • • Regulated squeegee pressure with pressure gauge
  • • Floor levelers & casters
  • • Foot switch controlled
  • • Servo-drive, more stable

Application Scope:
It is mainly used for one color to multi color repeated screen printing of round/oval plastic containers such as washing products, cosmetics, pharma, food and decorative products.
1000X250mm 600pcs/Hr SA1200-D2 Semi Automatic Screen Printing Machine For Bucket

1000X250mm 600pcs/Hr SA1200-D2 Semi Automatic Screen Printing Machine For Bucket

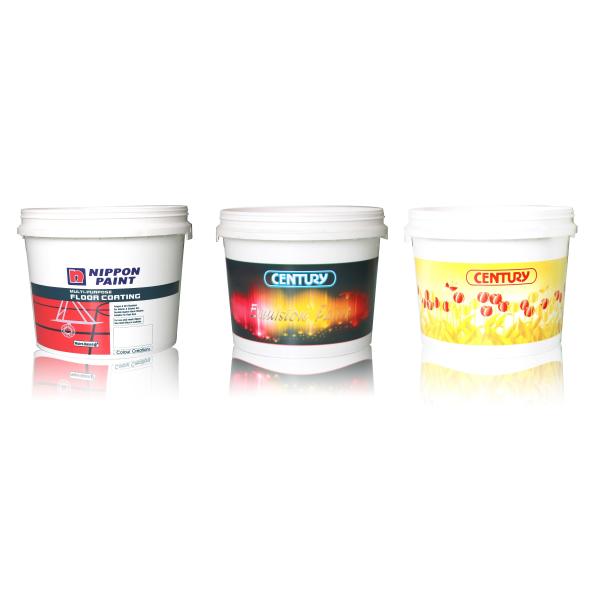

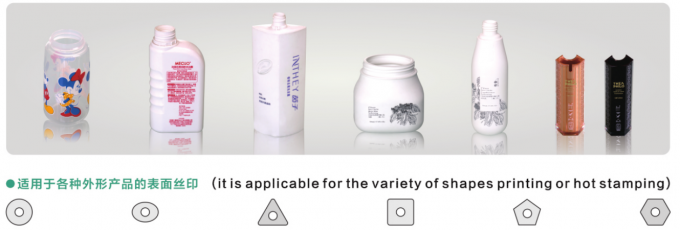

Printing samples
