Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
Specifications
Payment Terms :
TT or LC
Rotary :
Servo rotary movment
Model Number :
SL1888
Automatic Grade :
fully automatic
Place of Origin :
Dongguan China
Powerconsumption :
2.5 kW
Powersupply :
220V/50Hz
MOQ :
1PC
Delivery Time :
one month
Supply Ability :
10pcs/month
Demensions :
2300x1800x1700mm
Certification :
CE SGS
Brand Name :
SENNY
Framesize :
1100mm x 1300mm
Controlsystem :
PLC with Touch Screen
Price :
Negotiation
Automation :
Automatic printing machine
Packaging Details :
Plywood package
Description

* SLS1888 Servo-driven automatic machine for silk-screen printing of containers in plastic or other materials, having a circular, elliptical, square or rectangular section with centered or off-center neck,and it is easy for changing different shapes on printing section.

* Shape changeover: 30minutes for each machine,from cylindrical format to elliptical or flat format, can print all around in 360 degree.

* Linear unit structure combination: option of adding up to a total of eight in-line colors .

* The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.

* In-feeding parts includes:in-feeding belt and machine hand for side-selection.

* The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.

* Flame treatment for round,elliptical and rectangle container

* Device for pre-positioning

* Second time positioning for printing.

* Electronic lift for squeegee.

* UV curing by rotating round container driven by stepper motor.

* Electronic UV system: device for adjusting light freely(LED UV curing system can be as a replacement

Technical Specifications:

Max. printing area L300 x W250mm
Cylindrical container diameter Φ20-Φ120mm
Square or Oval product diameter Φ20-Φ100mm
Width elliptical or flat container 20-130mm
Container height 50-300mm
Max. printing speed Up to 6000pcs/hr

SLS1888 can be configurated with Plasma Treating system, labelling system, hot-stamping system or UV-LED system as customer's specific demands.

Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement

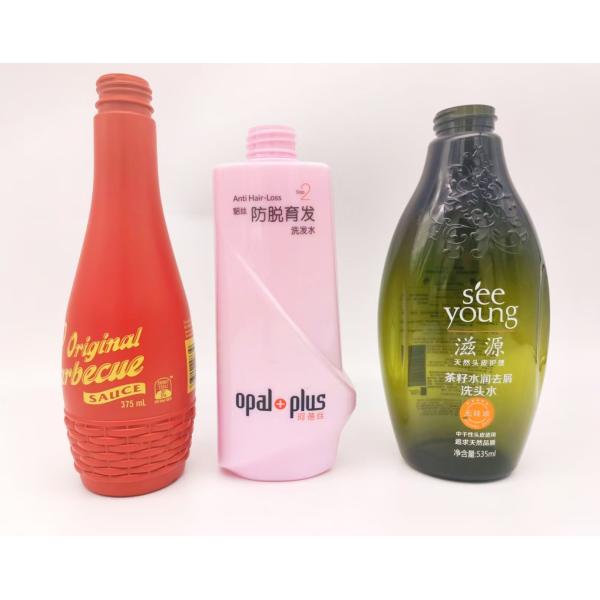

Printing samples

Fully Automatic Screen Printing Machine with Adjustable Light and Optional LED UV Curing Replacement
