1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine
1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine
1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine
1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine
1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine
1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine
Specifications
Brand Name :
SENNY
Model Number :
SLS1888-IR5123
Certification :
CE SGS
Place of Origin :
Dongguan China
MOQ :
1PC
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10 pcs/month
Delivery Time :
45days
Packaging Details :
Plywood package
Printed color :
1-8 color
After-sales services :
Video or on-line
Plate type :
linear screen printing machine
Description

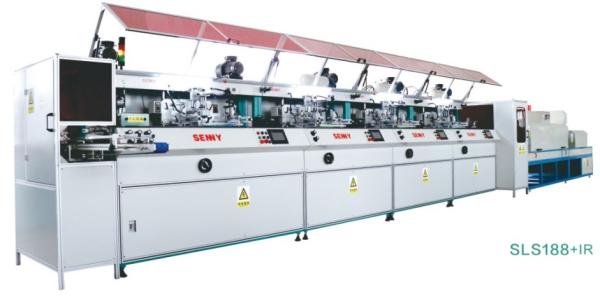

1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine

Machine Feature

​

  • This machine is ideal for multi-color IR ink screen printing on plastic bottles of various shapes—including round, oval, and square designs.
​
  • Powered by a digitally controlled servo motor, it enables smooth 360-degree printing and comes equipped with remote management and service capabilities, aligning with Industry 4.0 standards.
​
  • It features electrical components from renowned brands, an intuitive touchscreen, and a PLC control system, ensuring reliable performance.
​
  • With a highly customizable modular structure, the machine can be linearly connected to form a 1-8 color printing system.
​
  • Its standard configuration includes a screen printing module and an IR curing module. For added versatility, it can be connected to independent modules such as hot stamping, labeling, and quality inspection units to create a multi-functional printing solution.
​
  • After printing, products are discharged by a manipulator, arranged in a row, and fed into a constant-temperature drying tunnel to ensure complete ink curing.

1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine

Optional Configuration

  • Plasma Surface Treatment Function: This function generates low-temperature plasma to clean and activate container surfaces—such as glass perfume bottles and metal jars—efficiently removing impurities and strengthening adhesion for subsequent printing or labeling.

Technical Parameters

Machine Model SLS1888-IR5123
Printing Speed Up to 50 pcs/min
Diameter at 360 degree 20-170mm
Bottle Height 50-300mm
Max Printing Length 300mm
Max Printing Height 200mm

Printing your vision

1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine

About us:

Senny caters to a diverse range of industries, including food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. Leveraging advanced automatic printing technologies—such as screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—we deliver high-quality, intricate graphics and text on the surfaces of products in various shapes, crafted from materials like plastic, metal, glass, and ceramics.
