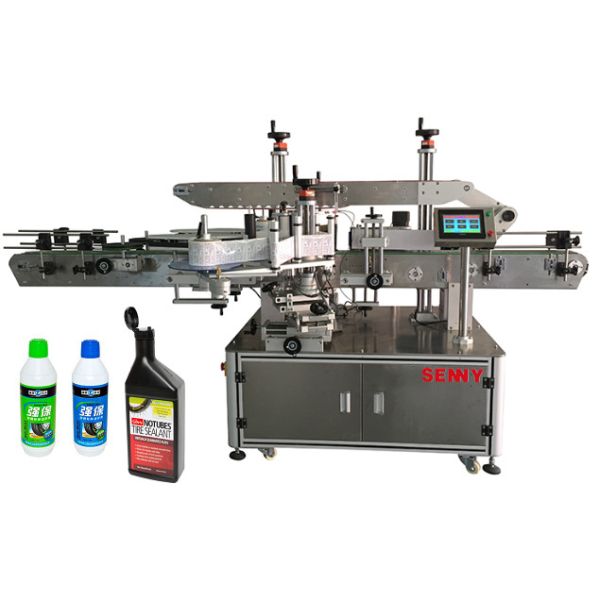

Self Adhesive 150pcs/Min Automatic Labeling Machine Double Side
Self Adhesive 150pcs/Min Automatic Labeling Machine Double Side
Self Adhesive 150pcs/Min Automatic Labeling Machine Double Side
Self Adhesive 150pcs/Min Automatic Labeling Machine Double Side
Specifications
Brand Name :
Senny
Model Number :
SY500
Certification :
CE SGS
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10pcs/month
Delivery Time :
1 Month
Packaging Details :
Plywood package
Product Shape :
Square And Polygonal
Machine Type :
Labeling Stickers
Printing Durability :
High Durability
Weight :
370kg
Warranty :
1 Year
After-Sales Service :
Video Or On-line
Description

Automatic Multi-Functional Labeling Machine Single Side, Double Sides And Circumferential Labeling

Applicable labels: self-adhesive labels, self-adhesive films, electronic regulatory codes, bar codes, etc;

Applicable products: items that need to be labeled on side planes, side surfaces, large curved surfaces and circumferential surfaces;

Application industries: widely used in printing, cosmetics, food, toys, daily chemicals, electronics, plastics, medicine and other industries;

Application examples: shampoo flat bottle labeling, lubricant flat bottle labeling, mineral water square bottle labeling, wine labeling and so on.

Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):

Model SY500 Labeling accuracy ±1mm
Sticker length 20mm～220mm Sticker turning out speed 5～25m/min
Sticker width 20mm～150mm Labeling speed 30～150pcs/min
Product length 20mm～250mm Conveying speed 5～35m/min
Product width 30mm～90mm Weight 370kg
Product height 60mm～280mm Power voltage 220V 50HZ
Product diameter 40mm～110 mm Power 2KW
Sticker roll's external diameter Φ280mm Conveying oriention fm left to side
Sticker roll's inner diameter Φ76mm Machine dimensions 3000*1400*1600mm

Self Adhesive 150pcs/Min Automatic Labeling Machine Double Side

SY500 Workflow:

Product feeding - Transportation - Guiding the product to the right direction - Top pressure transportation - Inspection - Labeling - Pressure labeling - Secondary pressure labeling (some products) - Product output.
