Specifications
Brand Name :
Anping XinLu Wire Mesh Products Co.,Ltd
Model Number :
XL- V Wire Screen Pipe - 034
Certification :
ISO
Place of Origin :
Anping County, Hebei Province, China
MOQ :
4pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800pcs / 15days
Delivery Time :
5-7days
Packaging Details :
wooden, pallet
Filter Name :
V Wire Water Well Screen Pipe
Material :
stainless steel 201, 205B
Standard Long :
10ft, 20ft
Diameter Size :
10", 10-3/4", 273mm
v wire :
3x5mm
Support rod :
4.0mm
joint type :
Bevel welded rings
Usage :
In water or oil well
Feature :
Corrosion Resistance
Welded type :
Full welded
Flow type :
from outside to inside (FOTI)
tag :
10" v wire water well screen pipe ; sand control v wire water well screen ; sand control well screen pipe
Description

10" Slot 60 1.5mm V Wire Screen Pipe Stainless Steel Used In Water Well For Sand Control

Specifications of V Wire Water Well Screen Pipe:

  • Material: stainless steel wire or galvanized wire or Duplex steel etc
  • Surface profile: triangle wire.
  • Support profile: triangle wire, round bar and wedge wire.
  • Slot size: 0.25 mm - 35 mm. Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
  • Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
  • Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.

Ends:Male/femle threaded, Bevel welded rings, Flanges, etc

Filtration Style: From outside to inside

Advantages of using V Wire Water Well Screen Pipe:

When compared to conventional slotted pipe, wire wrapped wedge wire screens have superior open area due to their continuous slot openings. The benefits of which will:


. Reduce energy consumption and increase water flow.

. Reduce erosion of entry surfaces and increase well life.
. Allow a uniform and efficient well development.
. Reduce significantly potential pump damage and subsequent maintenance costs.


V Wire Water Well Screen Pipe Information:

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.2x3.5 (Widthxheight) ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5

2.2x3.5

(WxH)

 ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8

2.2x3.5

(W x H)

 ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8

2.2x3.5

(W x H)

 ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45

3.2x6.0

(W x H)

 ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9

2.3x3.5

(W x H)

 ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2

3.0x5.0

(W x H)

 ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46

3.2x6.0

(W x H)

 ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9

2.2x3.5

(W x H)

 ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5

3.0x4.6

(W x H)

 ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48

3.2x6.0

(W x H)

 ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2

3.0x5.0

(W x H)

 ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8

3.0x5.0

(W x H)

 ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5

3.0x5.0

(W x H)

 ø4.0MM×54

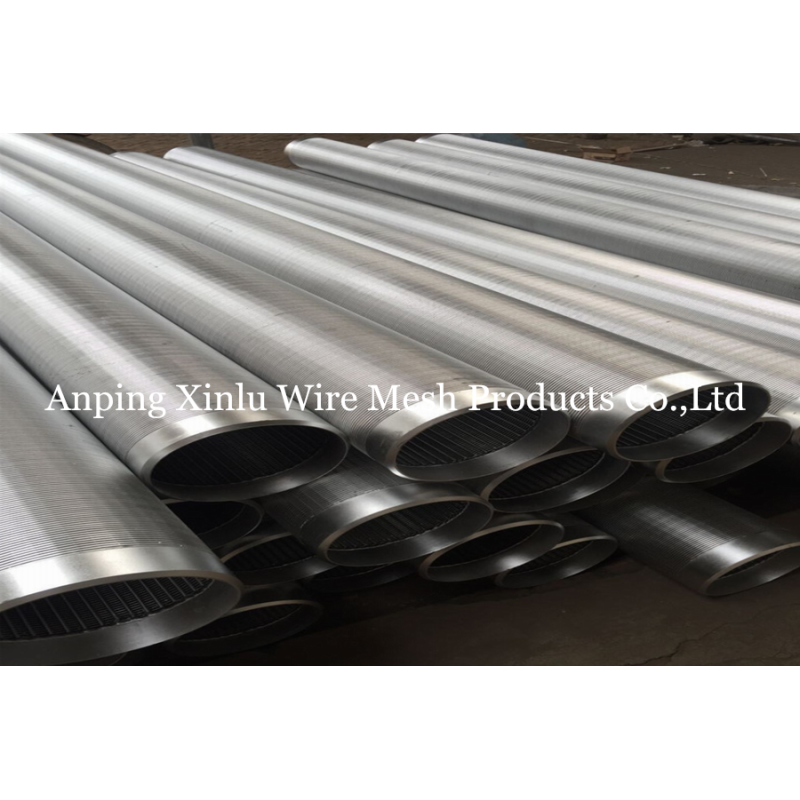

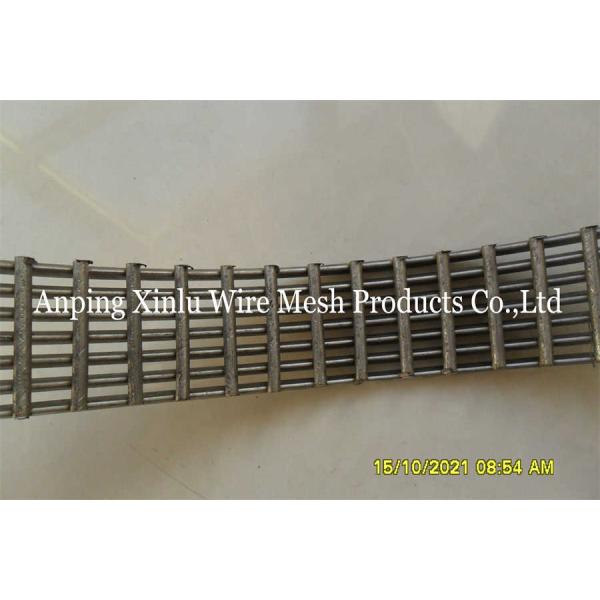

V Wire Water Well Screen Pipe Pictures:

Slot 60 Stainless Steel V Wire Screen Pipe Sand Control For Water Well

Slot 60 Stainless Steel V Wire Screen Pipe Sand Control For Water Well

Slot 60 Stainless Steel V Wire Screen Pipe Sand Control For Water WellSlot 60 Stainless Steel V Wire Screen Pipe Sand Control For Water Well

Product Tags: 10" v wire water well screen pipe ; sand control v wire water well screen ; sand control well screen pipe
