Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings
Specifications
Filter Name :
Johnson V Wire Screen Pipes
Material :
Low Carbon Galvanized
long :
2900mm
Diameter :
88.9mm
V Wire :
2.3x3.5mm
Round Support rod : :
ø3.0mm
Surface :
Glavanized, or painting silver
Usage :
In water well for Sand Control
End Joint :
Bevel welded rings
Feature :
Corrosion Resistance
Welded type :
v wire wrapped welded
tag :
3-1/2" v wire screen pipe ; galvanized v wire screen pipe ; low carbon galvanized water wire screen
Brand Name :
Anping XinLu Wire Mesh Products Co.,Ltd
Model Number :
XL- V Wire Screen Pipe - 037
Certification :
ISO
Place of Origin :
Anping County, Hebei Province, China
MOQ :
4pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800pcs / 15days
Delivery Time :
5-7days
Packaging Details :
wooden, pallet
Description

3-1/2" Low Carbon Galvanized Johnson V Wire Screens For Sand Control

Johnson V Wire Screen, also called wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, johnson v wire screen pipe, johnson v wire screen tube, stainless steel filter screen, v wire strainer pipe, v wire screens, v wire slot tube, wound screen, slotted screen.


Johnson V Wire Screen Pipe are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.

Johnson V Wire Screen Pipe Sizes:

  • Material: stainless steel wire or galvanized wire.
  • Surface profile: triangle wire.
  • Support profile: triangle wire, round bar and wedge wire.
  • Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
  • Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
  • Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
  • Maximum collapse strength: 150 bar.
  • Maximum tensile strength:40 tons.
  • Connection type: Bevel welded rings; male/female threaded coupling.
  • Wire Size: 1x2mm, 1.5x2mm, 1.5x2.5mm, 2.2x3mm, 2.3x3.5mm, 3x4.6mm, 3x5mm, 3x6mm, 4x7mm etc. Also can make other sizes as your request.
  • Support rods size:ø2.5mm, ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.

Johnson V Wire Screen Pipe Specification:

SIZE
(INCH)		 O.D
(MM)		 SLOT
(MM)		 LENGTH
(M)		 COLLAPSE
STRENGTH(BAR)		 TENSILE
STRENGTH(TON)		 WRAP WIRE
(WIDTH*HEIGHT)(MM)		 RODS
(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 4.0MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.2MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.2MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.8MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.2MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.2MM/59

Johnson V Wire Screen Pipe Features:

  • Can filtration 20 micron particles.
  • Wide ranges of sizes and end types.
  • Large open areas for high filtration efficiency.
  • Non-clogging and plugging performance.
  • Stainless steel materials OR Low carbon galvanized materials for long service life.
  • Easy cleaned and low maintenance.

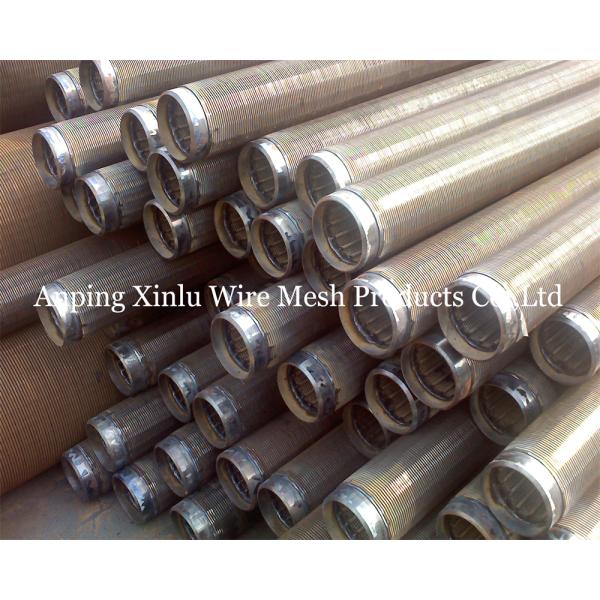

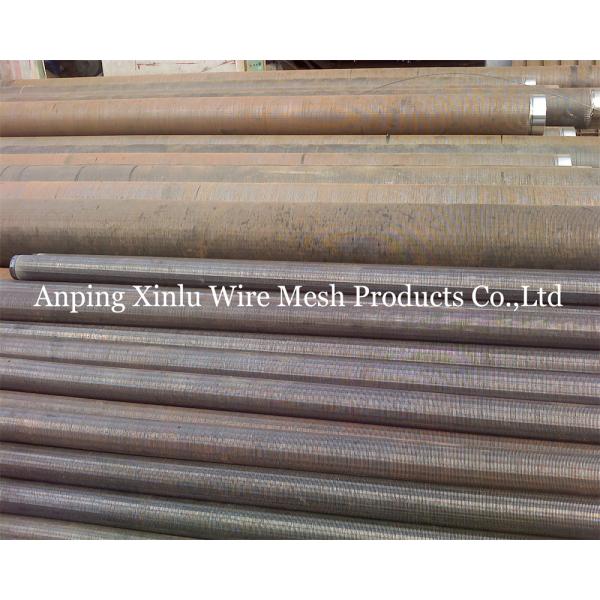

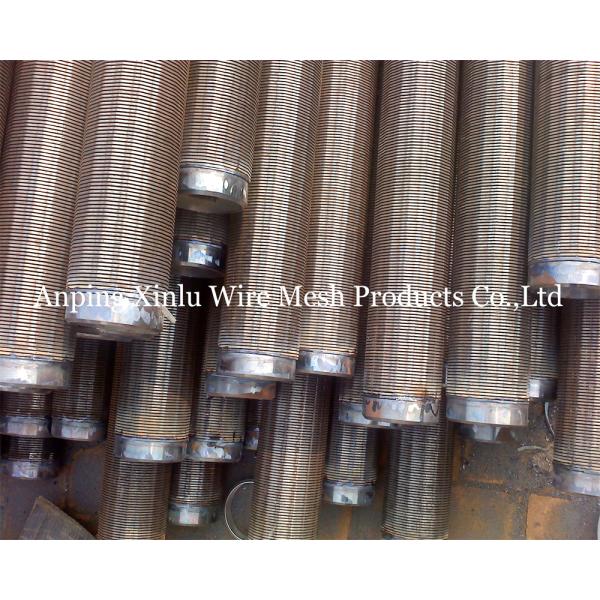

Johnson V Wire Screen Pipe Pictures:

Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded RingsSlot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded RingsSlot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings

Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings

Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded RingsSlot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings

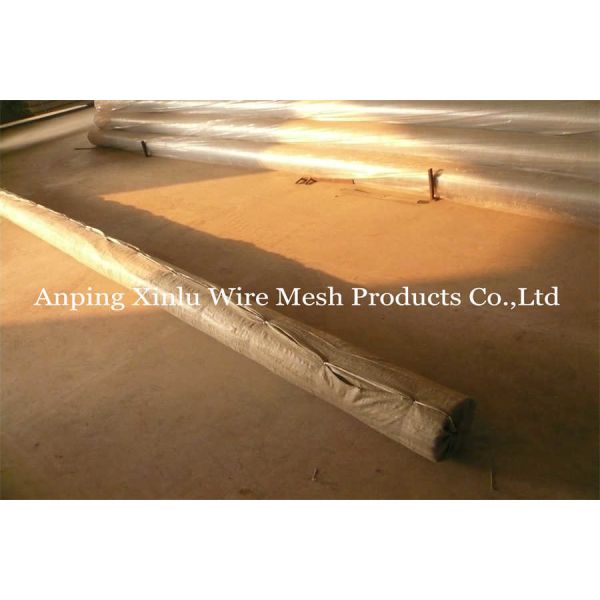

Johnson V Wire Water Wire Screen Pipe Package

Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings

Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings

Slot 20 Low Carbon Galvanized V Wire Screen Pipe Bevel Welded Rings

Product Tags: 3-1/2" v wire screen pipe ; galvanized v wire screen pipe ; low carbon galvanized water wire screen
