Specifications
Brand Name :
Anping XinLu Wire Mesh Products Co.,Ltd
Model Number :
XL- Sand Control Screens - 034
Certification :
ISO
Place of Origin :
Anping County, Hebei Province, China
MOQ :
4pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800pcs / 15days
Delivery Time :
5-7days
Packaging Details :
Air bubble film, wooden, pallet; plastic film ,340 pcs per 20GP container
Filter Name :
Profile Wire Sand Control Screen
Material :
Stainless steel 304
long :
2900mm
Outdiameter :
6-5/8 " (168mm)
V Wire :
2.5x4mm
Support rod : :
3.8mm
No. of rods :
48 PCS
Slot :
0.04" (1.0mm)
Flow type :
from outside to inside
Surface treatment :
Polished
Usage :
Water well filter
End Joint :
welded rings
Feature :
Non-clogging
Welded type :
v wire wrapped welded
tag :
6-5/8" Diameter Johnson Wire Screen ; 0.04" Gap Johnson Wire Screen ; ISO Johnson Wire Screen
Technique :
Point welding
Application :
Filteration
weight :
45KG/piece
Description

AISI 304 6-5/8" Diameter Profile V Wire Johnson Sand Control Screen Pipe With 0.04" Gap

Profile Wire Sand Control Screen Description:

Johnson strainer,Johnson filter,water well screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:

·Water Well

·Waste Water Treatment

.Water supply systems

·Coal & Mine

·Food Processors & Beverage Screens

·Environmental protection

·Refining & Petrochemical

·Architecture & Construction

Profile Wire Sand Control Screen Specificarion:

Name Profile Wire Sand Control Screen
Material Stainless steel
Grade 304
O.D 168mm
Size 6-5/8"
Length 2900mm
Solt size 1.0 mm
End connection welded rings
Wire size 2.5x4mm
Support rod ø3.8mm round wire
Weight 54kg/pcs

Profile Wire Sand Control Screen Specification:

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tensile

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

(Width x height)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.2x3.5mm ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5 2.2x3.5mm ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2x6.0mm ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3x3.5mm ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0x5.0mm ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2x6.0mm ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.2x3.5mm ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0x4.6mm ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2x6.0mm ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0x5.0mm ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8 3.0x5.0mm ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5 3.0x5.0mm ø4.0MM×54

Profile Wire Sand Control Screen Details:

  • Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
  • Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.

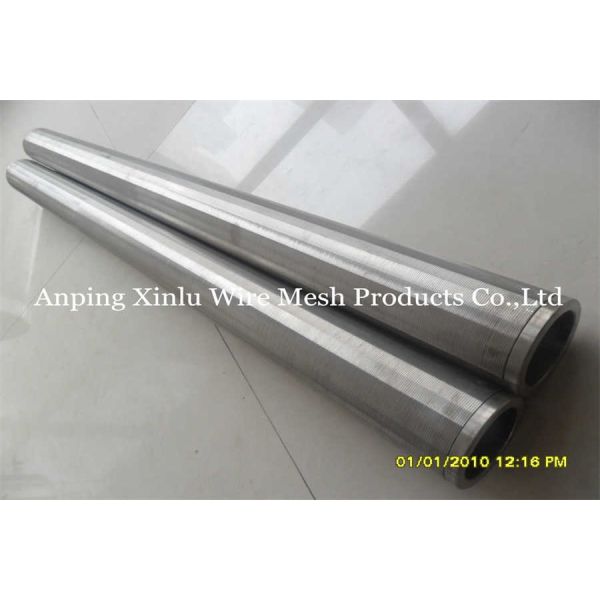

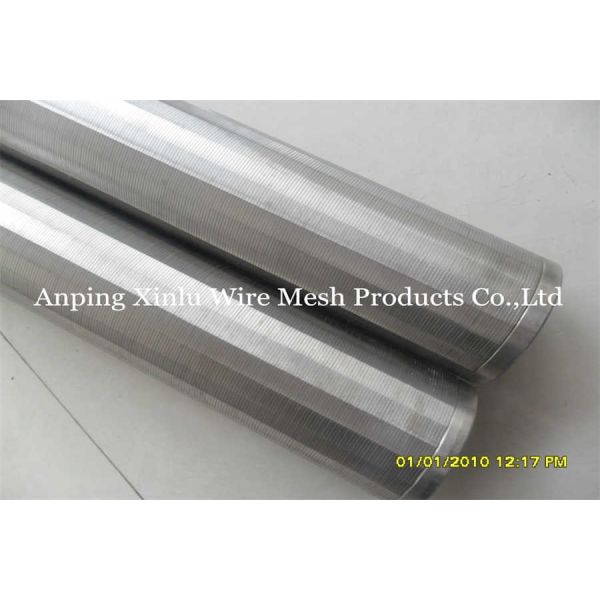

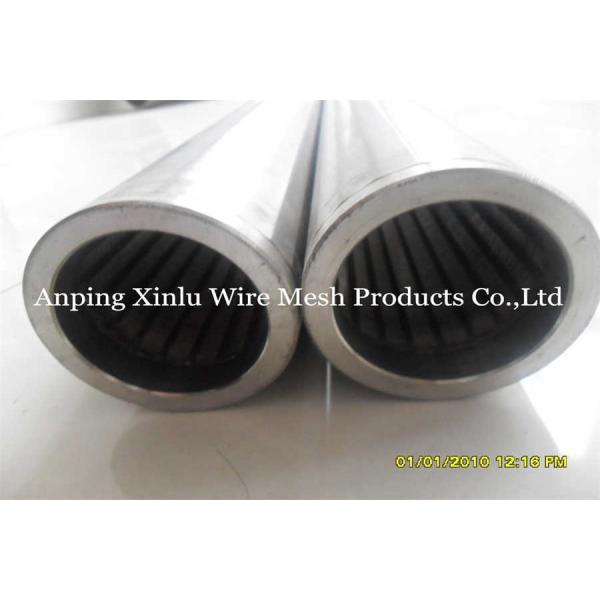

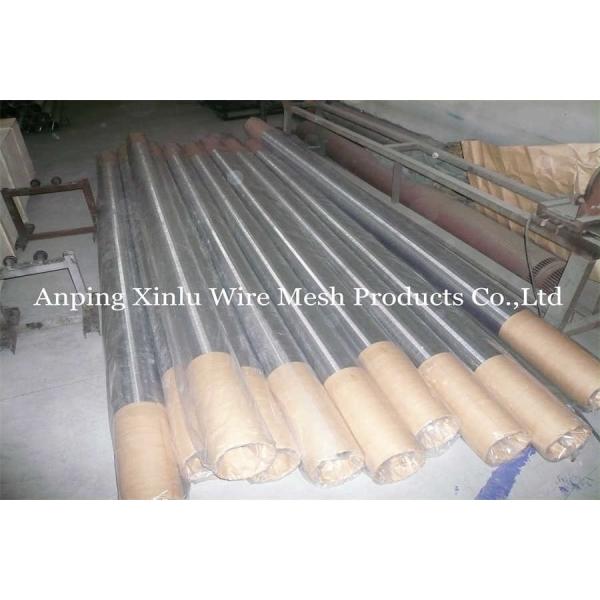

Profile Wire Sand Control Screen photos and Package:

ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04

ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04

ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04
