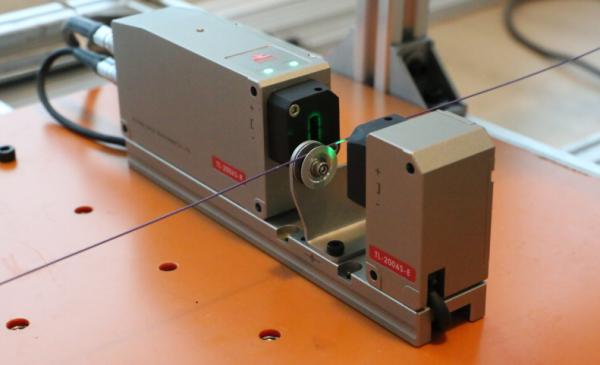

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Specifications
Brand Name :
Screate DALA
Model Number :
TL-2000S
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, etc.
Delivery Time :
7 - 15 working Days
Packaging Details :
standard packing, as customer demands
Measurement data :
lump and neck or Diameter
Application :
Flat wire，round wire
Measurement :
0.02~6mm & 0.2~25mm
Repeatability :
±0.03um
Accuracy :
±0.5um
Size :
224.6*36*62mm
Working power source :
24VDC ± 5%, Max. 30W
Communication :
WIFI,RS485 MODBUS RTU
Description

High Impact Resistance,Strong adaptability to temperature change

Unique mechanical design enables the device with an impact resistance of 10G/6ms and vibration resistance of 10-55Hz/1.5mm in XYZ for 2 hours.
Individual temperature compensation technology enables the device measurement results not to be afected by temperature change*.
*The measurement diameter change <0.00lmm when temperature change is 40'℃ if the object diameter is 10mm.
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

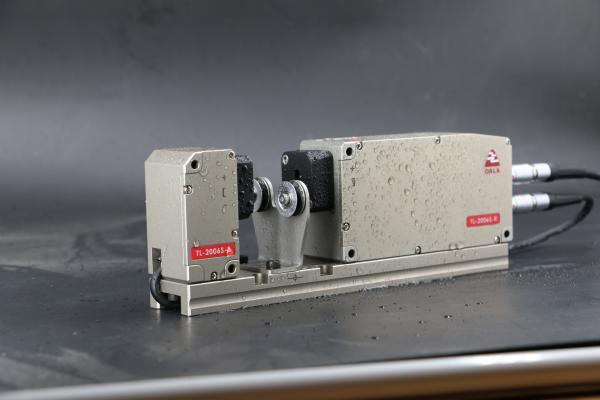

Measurement is accurate even if there is water and dust

Thanks to individual optical system and measurement algorithm, the measurement data of TL-2000S Series is still accurate at complex environment.
Environmental adaptability reaches to IP67.Besides,air filter is available to prevent lens front side from contamination ,ensuring measurement data is accurate at various extremely complex environment.
Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

Touch Screen,Computer,Cellphone

DALA TL-2025D can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,customers can choose as their application request.

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

size

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

Technical Specification

Model TL-2006S TL-2025S
Axis 1-axis 1-axis
Sampling frequency 5KHz 10KHz
Measurement range 0.02~6mm 0.2~25mm
Repeatability ±0.03μm(1) ±0.1μm(2)
Measurement accuracy ±0.5μm(3) ±3μm(4)
Working power 24VDC ± 5%, Max. 30W
Application field Round wire ,Transparent wire, Flat wire
Measurement data Round wire, clear wire, flat wire,rod stock, tubing, etc.
Communication port Default:WIFI,RS485 MODBUS RTU,CAN
Option:PROFIBUS,PROFINET, EtherNet/IP EtherNet,etc.
Electrical port Default:Digital output (relay), Digital input,Analog input encoder pulse input port.
Option: PI feedback control(3)
Environmental adaptability

Working Environment

 0~50 ℃
Working Environment 20~85%RH(No condensation)
Working environmental brightness Brightness of working environment Incandescent light, fluorescent lamp 3000lx or less
Vibrating resistance 10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours
Impact resistance 10G/6ms
Data colletion & analysis DMS1000 measurement software system,DS14 ZT display and control system
Out-of-tolerance alarm Support
Transparent mode Support
Water-proof grade IP67

NOTE:

(1)Set average time to 0.1s and measure the ±2σvalue of the φ1mm round rod at the measurement area center;

(2)Set average time to 0.1s and measure the ±2σvalue of the φ10mm round rod at the measurement area center;

(3)Move φ1mm round rod in the measurement area of 2*2mm and conduct measurement error;

(4)Move φ9mm round rod in the measurement area of8*8mm and conduct measurement error;Move φ18mm round rod in the measurement area of4*4mm and conduct measurement error;
