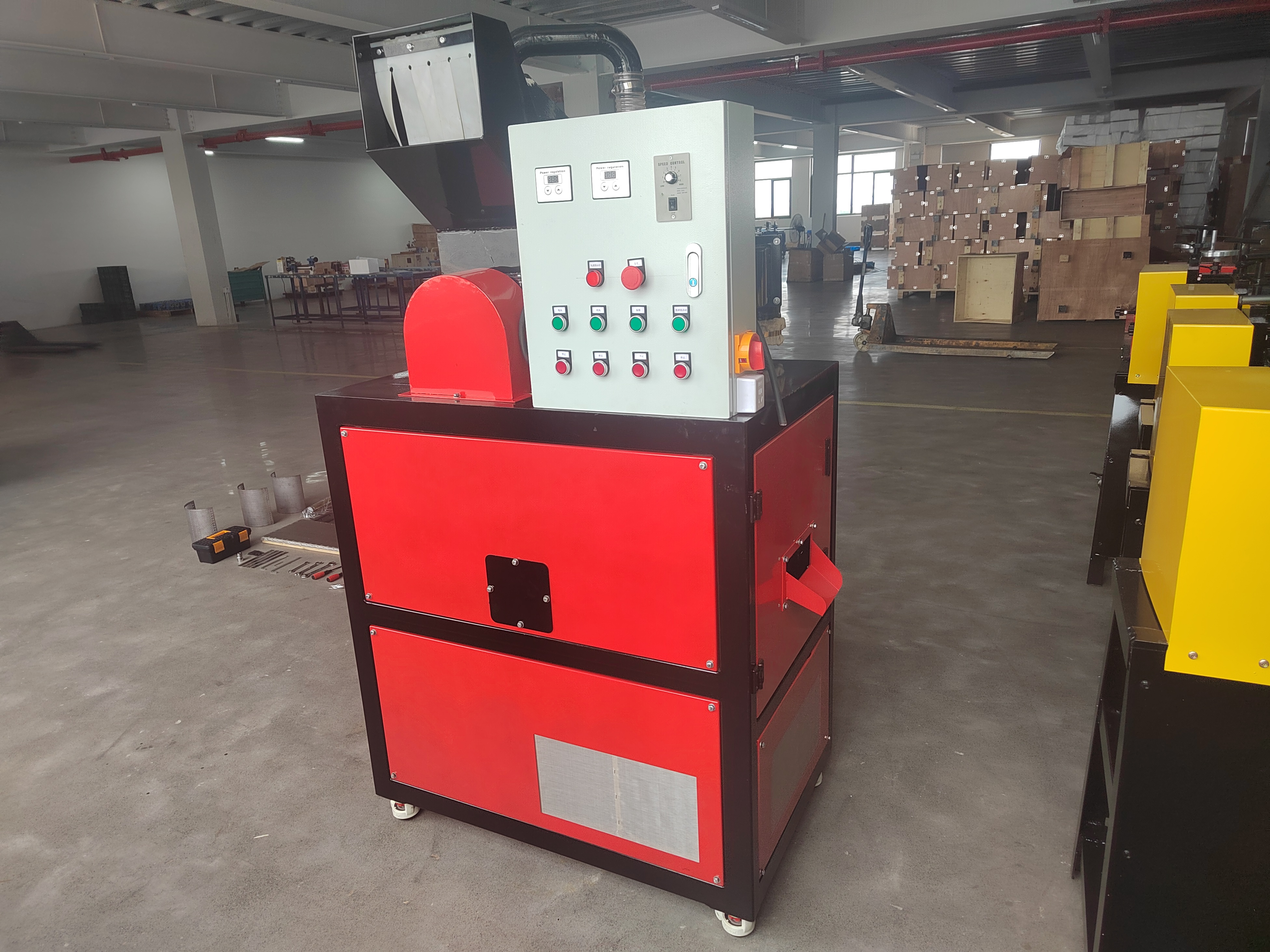

50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
Specifications
Model Number :
TM-260
Dimension :
1160*620*1800mm
Power :
5.7kw
Place of Origin :
Henan, China
Packaging Details :
Copper wire granulator is packed with standard export ply wooden case. .
Payment Terms :
L/C, T/T, Western Union,
Type :
Dry type
Purity :
99.99%
MOQ :
1 set
Delivery Time :
5work days
Output :
50-80 kg/h
Price :
Negotiable
Function :
Recycle scrap copper
Certification :
CE, ISO9001
Supply Ability :
50 sets per month
Name :
Copper wire granulator
Brand Name :
TMS
Weight :
440kg
Description

50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage

Description of copper wire granulator

In the world, there are many kinds of waste wires and communication cables that have been used or exchanged. Our purpose is to overcome the loss of copper and other by-products during regeneration and make them more scientific and automatic. It reduces the number of people, improves the recovery rate, and thus improves the production efficiency. It not only develops the national economy and protects the environment, but also is conducive to the development of renewable industries.

Copper wire granulator is a machine that physically separates copper from plastic in scrap wires, primarily by exploiting differences in specific gravity or electrical conductivity.

Workflow of copper wire granulator

1. Shredding and Granulation: Scrap wires are first cut into segments by a shredder and then fed into a granulator to be crushed into granules just a few millimeters in size, ensuring the copper and plastic are fully detached.
2. Sorting and Separation: The mixed granules undergo airflow or vibrating screen processing; utilizing density differences, the copper sinks while the plastic rises, achieving preliminary separation.
3. Fine Purification: Some systems are equipped with electrostatic separators that utilize differences in electrical conductivity to further remove residual plastic, thereby increasing the purity of the copper.

Technical parameter of copper cable granulator

Description (mm) Power Capacity Wire diameter range Weight Voltage
1160*620*1800 5.7kw 50-80 kg/h 0.1-25mm 440kg customized

Features of copper wire granulator

1. Intelligent operation makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

2. The crusher adopts counter roller type, with low speed, high torque, large output, low noise and simple operation.

3. The pulverizer, separation equipment and dust collection equipment adopt the platform combination type, which makes the equipment easy to move and transport, and increases the flexibility of the equipment.

4. The rotor of the pulverizer adopts the alternate cutter shaft, which makes the production efficiency of the pulverizer higher, the noise lower and the operation more stable.

Technological process of copper wire granulator

If the site or funds are more abundant, the waste wires and cables can be broken into about 3cm long by shredding equipment, then cut and crushed by secondary crusher, and then separated by specific gravity air flow to obtain high purity copper. If the copper contains unsorted broken plastic, it can also be sorted by electrostatic separator to ensure high reuse rate of copper. The equipment has the advantages of new and reasonable structure, large production capacity and low power consumption. High sorting rate, one-time feeding and multi machine supporting facilities. The production line is controlled by PLC. The machine solves the problems of air pollution and copper wire blackening caused by burning copper. The copper quality remains unchanged, the recovery rate can be improved, the plastic can be reused, and the problem of environmental pollution can be avoided.

50-80 kg/H Copper Wire Granulator Machine 5.7kw Power 380 Voltage
