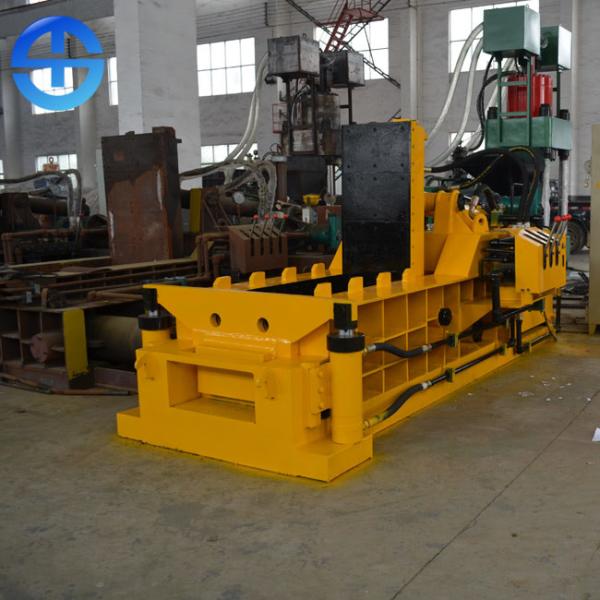

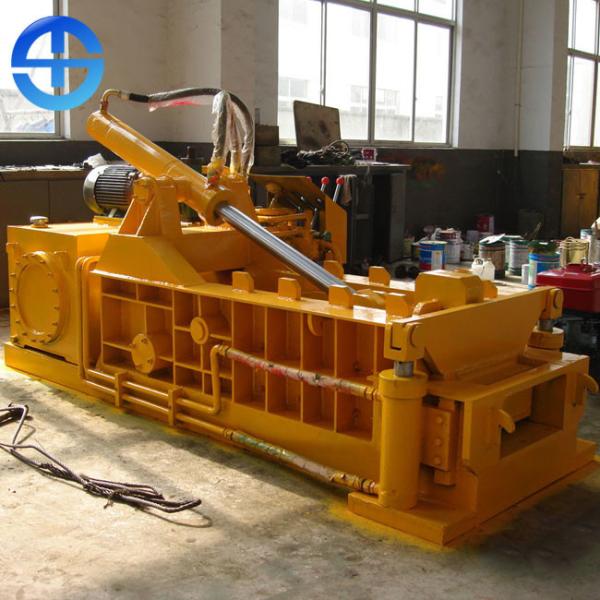

1000KN Nominal Pressure Bale Size 220*500mm Scrap Baling Press Machine
1000KN Nominal Pressure Bale Size 220*500mm Scrap Baling Press Machine
1000KN Nominal Pressure Bale Size 220*500mm Scrap Baling Press Machine
1000KN Nominal Pressure Bale Size 220*500mm Scrap Baling Press Machine
Specifications
Brand Name :
TMS
Model Number :
1000A
Certification :
CE, ISO
Place of Origin :
Zhengzhou, China
MOQ :
1 set
Price :
USD12900-13490 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
25 work days
Packaging Details :
Full container 20'GP for scrap balers
Name :
Scrap balers
Function :
Compress metals into bales
Application :
Kinds of scrap metals
Motor :
11kw
Nominal Pressure :
1000KN
Bale size :
220*500mm
Material box :
1100*500*500mm
Bale weight :
50-60kg
Description

1000KN Nominal Pressure Bale Size 220*500mm Scrap Balers

Introduction of scrap balers

Scrap balers can extrude various kinds of relatively large scrap metal, scrap steel, scrap iron, scrap copper, scrap aluminum, disintegrate car shell, waste oil drum into cuboid, cylinder, octagonal shape and other qualified furnace charge. In order to facilitate storage, transportation and recycling. After being put into the furnace, the pressing loss is lower. The whole production process does not need heating, additives or other processes, direct cold pressing molding, forming at the same time also ensure the original material unchanged. For example, cast iron scrap is used instead of cast pig iron after forming. For castings of special material, recycling is more significant.

There are many kinds of bales in baler, such as square, octagonal and round. The square bale is the most common shape in the whole hydraulic market. However, some of them are limited by the mouth of the furnace or considered from the perspective of aesthetics. They need to be made into octagonal or round. However, for the same kind of scrap balers and the same kind of hydraulic configuration, the price of octagonal bale is more expensive than that of octagonal bale, and the price of round bale is more expensive than that of octagonal bale. Compared with the forming mold of bale, the square bale is also the most wear-resistant and easy to maintain.

Application of scrap balers

Materials: iron / steel: scrap iron, light and thin materials, scrap, car shell, scrap, waste oil bucket, bicycle frame, lathe chips, shavings, iron chips, steel chips, color steel tiles, stainless steel.

Scrap aluminum: aluminum chips, aluminum shavings, aluminum profiles, doors and windows, cans, aluminum foil, aluminum alloy.

Scrap copper: copper wire, copper plate, copper scrap, copper shavings, copper wire

Advantages of scrap balers

1. All models adopt hydraulic drive, and can be operated manually or controlled automatically by PLC.

2. There are several ways for bale-out, such as turning over, side-out, forward out, and taking the bag manually.

3. A variety of models can be selected: different pressure, material box size, bale size and shape.

4. Where there is no power supply, diesel engine can be used as power.

Note: the size of material box and bale can be customized according to the actual needs of customers

Technical specifications of scrap balers
Sr. No. Type name Model or Data
Main cylinder Cover cylinder Cylinder of Bale-out
1 Nominal pressure 1000KN 360KN 200KN
2 Inner diameter of cylinder φ220mm φ125mm 2*φ110mm
3 Piston diameter φ120mm φ90mm φ70mm
4 Stroke 1300mm 1070mm 260mm
5 System Max.pressure 25Mpa 25Mpa 12Mpa
6 Bale density ≥2.0 t/m3 (Lightweight material)
7 Motor Power 11KW
8 Oil Pump 40YCY14-1B
9 Single cycle time 90 seconds (no-load)
10 Material box size 1100*500*500mm
11 Bale size 220*500mm
12 Bale weight 50-60kg
12 Bale-out Forward out
13 Operation mode Manual
14 Productivity 0.9-1.1 ton / hour
15 Machine size 3700*1700*1750mm
16 Other

1. There are blades on both sides of door cover and material box

2. The whole machine is free of installation
