3kw 4kw Scrap Radiator Separating Machine 1 Year Warranty
3kw 4kw Scrap Radiator Separating Machine 1 Year Warranty
3kw 4kw Scrap Radiator Separating Machine 1 Year Warranty
3kw 4kw Scrap Radiator Separating Machine 1 Year Warranty
Specifications
Brand Name :
TMS
Model Number :
TMS-017
Certification :
CO, ISO
Place of Origin :
Zhengzhou, China
MOQ :
1 set
Price :
USD5990-6300 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
10 work days
Packaging Details :
Exported ply wooden case
Name :
Radiator separating machine
Function :
Separating copper from aluminum
Total Power :
7kw
Daily Production :
2000-3000kg
Dimension :
1800*800*1200mm
Packing size :
1900*900*1300mm
Net Weight :
650kg
Warranty :
12 months
Description

1 Year Warranty Power 3kw 4kw Scrap Radiator Separating Machine

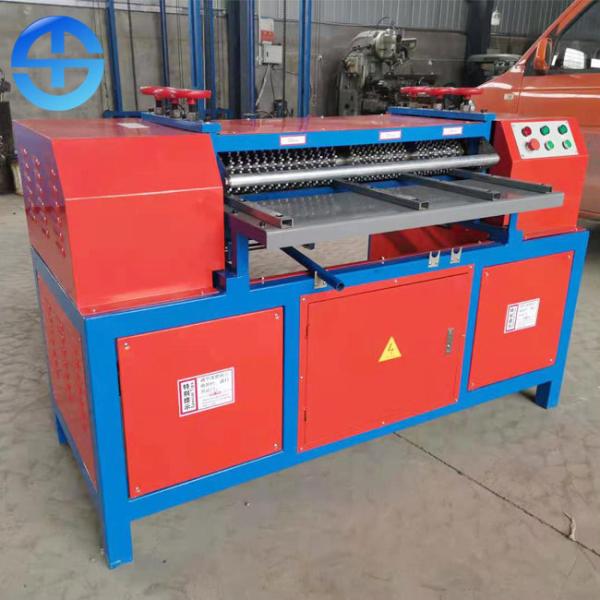

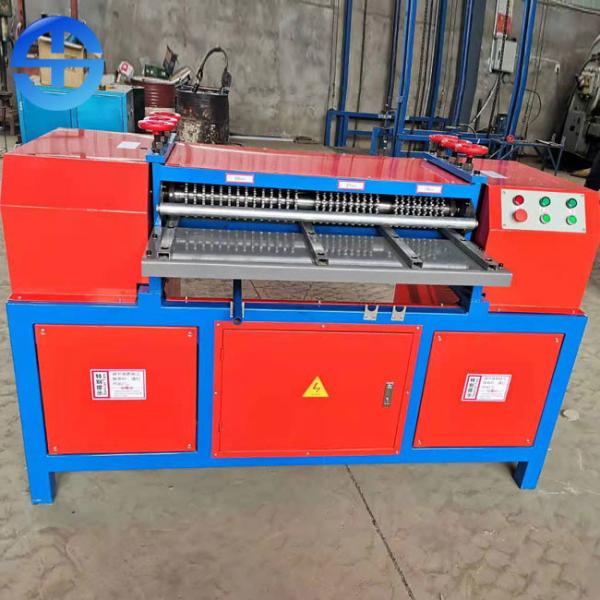

Intro of radiator separating machine

Radiator separating machine is specially designed for radiators. Before operation, the heat sink should be cut into regular shapes.Then place the cut radiator smoothly into the inlet. Within seconds, the copper tube and aluminum fins will be discharged separately. Copper tubes will remain intact, aluminum fins will damage one row of radiators, and two rows of radiators will remain intact.

Radiator separating machine can peel off single-layer and two-layer radiators. The center distance between the blades comes in three sizes: 19mm, 21mm, and 25mm. This means it can separate three heat sinks.

Features of radiator separating machine

1. High performance with 100% separateing rate.

2. In terms of safety, set up the light eye control at the inlet of materials, and when working, set up the position by hand, and the machine stops running.

3. It is time-saving, labor-saving, investment-saving, easy to operate and easy to maintain.

Attention of radiator separating machine

1. In radiator separating, if radiators move towards left direction or right direction, check if the two Adjusting Wheels of each pair are on the same level.

2. When abnormal noise appears in working, check the working conditions of transmission gears, bearings and Speed Reducer as well as motors.

3. When radiators can not be cut from top to bottom, check if Triangle Belts are loose which causes slipping; or check if the blades become blunt.

4. After working for a period, Speed Reducer lubricant shall be replaced; check if screws become loose or not; check if blades and Feeding Gears become loose or not.

Technical parameter of radiator separating machine

Model TMS-017
Machine size 1800*800*1200mm
Daily Production 2000-3000kg
Motor power 3kw+4kw
Weight 600kg
Power supply 380V/50HZ, 3 Phase. Or customized as customers' requiement
