380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
Specifications
Brand Name :
TMS
Model Number :
TMS-400
Certification :
CO, ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10 work days
Packaging Details :
Standard exported ply wooden case
Name :
Copper recycling machine
Wire diameter processed :
0.1-20 mm
Capacity :
150-200 kg/h
Copper purity :
99.9%
Voltage :
380 V or Customised
Function :
Recycle scrap copper cables
Size :
2700*1900*2300 mm
Power :
23.12 kw
Description

380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity

Brief Introduction of copper recycling machine

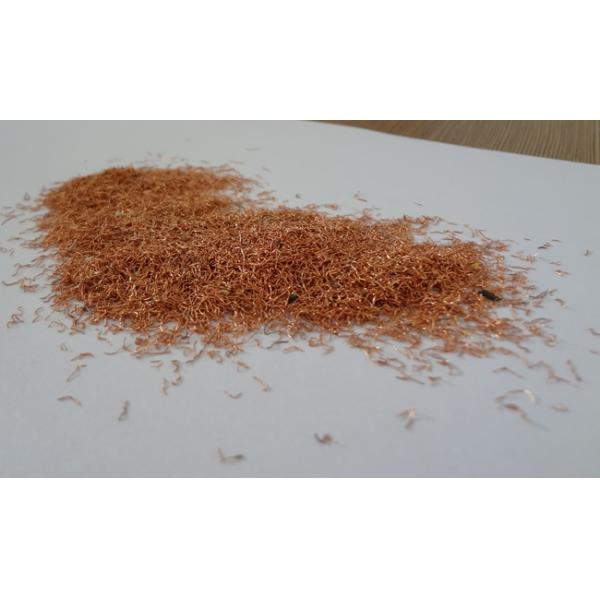

400 Copper recycling machine is used for handling automobile wires, communication cables and other types of miscellaneous wires and cables. This machine has a compact structure, and shows stable and reliable performance. Scrap copper wires and cables are chopped by the Chopper in the machine and then plastic pieces and copper granules are separated by airflow and vibration. Copper granules and plastic pieces come out of the machine through different outlets, and dust is collected by Dust Collector.

(Copper wires less than 20mm in diameter are suitable; single conductor with diameter of 0.2-0.3mm is best.). If the diameter of cables is more than 20mm and less than 40mm, the large model TMS-800 and 1000 are best choice for you.

Technical specifications of copper recycling machine

Equipment Components Chopper

Motor Power: 15kw

Rotating Blade Quantity: 8

Quantity of Fixed Blades: 4

Screen Size: Φ3mm / Φ4mm

Spindle speed: 900r/min
High pressure fan 3kw
Separator

Vibration Motor: 0.18kw (2 Units)

Vibration: Frequency Regulation
Bottom Blower Fan

Fan Power: 2.2 kw

Filter: Φ280 * 1000

Air Volume Control: electric control panel on the electric control box
Upper Suction Fan

Fan power: 2.2 kw

Material Collecting Mode: Cyclone Dust Collector

Collecting Bag: 1

Dust bag: 1
Small shaking table

0.18 kw*2sets

Machine features of copper recycling machine

1. The whole system is controlled by the Electricity Control Panel.

2. The operation is stable.

3. Minimum copper recovery rate can reach 99%.

4. Small area occupy and save labour.

Materials processed of copper recycling machine


The choice of a copper recycling machine depends on the material properties of the types of copper wires and cables. Correct choice can not only improve the working efficiency, but also extend the service life of the machine. The cutting blades are made with Wire Cutting Technique, blades are replaceable for each other. We have different requirements for blades to different types of copper wires.

1). Air-fine Wires, Multi-strands

When dealing with Air-fine Wires and Multi-strands fixed blades and rotating blades must be very sharp so that copper wires can be cut and copper granules will be very clean and pure.

2). Single-strand and Single-core Wires

When dealing with Single-strand and Single-core Wires, the rotating blades shall be a little blunt and fixed blades must be sharp. In this case, the spacing between the rotating blades and fixed blades is just able to hold wires but does not touch the cores. The wires are crushed but there will be little copper granules with plastics outside.

(Note: if blades are not adjusted in accordance with the requirements, it may cause too many copper clad granules and the separation is not clean, etc.)
