Hydraulic Scrap Shear with 400ton Cutting Force, 25MPa Pressure and Air Cooling System for Industrial Steel Cutting
Hydraulic Scrap Shear with 400ton Cutting Force, 25MPa Pressure and Air Cooling System for Industrial Steel Cutting
Hydraulic Scrap Shear with 400ton Cutting Force, 25MPa Pressure and Air Cooling System for Industrial Steel Cutting
Hydraulic Scrap Shear with 400ton Cutting Force, 25MPa Pressure and Air Cooling System for Industrial Steel Cutting
Hydraulic Scrap Shear with 400ton Cutting Force, 25MPa Pressure and Air Cooling System for Industrial Steel Cutting
Hydraulic Scrap Shear with 400ton Cutting Force, 25MPa Pressure and Air Cooling System for Industrial Steel Cutting
Specifications
Brand Name :
WANSHIDA
Model Number :
Q43W-4000A4
Certification :
CE and ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 sets/month
Delivery Time :
50 days
Packaging Details :
Seaworthy packing
Product name :
Scrap Metal Shear
Feeding mouth :
1500x1400mm
Outout mouth :
1400x450mm or customized
Motor :
74kW
Capacity :
2-3 times/min
Blade Length :
1400mm
Motor brand :
Siemens
PLC brand :
Mitsubishi or Siemens
Description

Hydraulic Scrap Shear for Industrial Steel Cutting with 25MPa Pressure and Air Cooling System

Product Introduction

The Q43W-4000A4 hydraulic scrap shear is designed for stable and efficient cutting of steel scrap under industrial working conditions. With a hydraulic pressure of 25 MPa and a cutting force equivalent to 400 tons, this machine provides consistent performance for processing medium-thickness scrap metal.

As a practical hydraulic scrap shear, it combines durability, simple operation, and a compact footprint.

Applications

  • Steel recycling facilities

  • Demolition scrap processing

  • Metal fabrication waste handling

Technical Specifications

Item Specification
Cutting Force 400 Ton
Capacity 4–6 T/H
Cutting Speed 3–4 times/min
Feeding Opening 3500 × 2400 mm
Blade Length 1400 mm
Hydraulic Pressure 25 MPa
Motor Power 2 × 37 kW
Total Power ~85.5 kW
Cooling System Air cooling
Size 7000 × 2500 × 2620 mm
Weight ~23 Ton

Key Advantages

  • Stable hydraulic system under high pressure conditions

  • Continuous operation capability with air cooling

  • Efficient cutting speed up to 4 cycles per minute

  • Low maintenance hydraulic components

FAQ

Q1: What is the hydraulic system pressure?
A: The system operates at 25 MPa, ensuring strong and stable cutting performance.

Q2: What type of cooling system is used?
A: The machine uses an air cooling system for hydraulic oil temperature control.

Q3: Can this hydraulic scrap shear handle structural steel?
A: Yes, it is suitable for beams, channels, plates, and other steel profiles.

CTA

Get a customized hydraulic scrap shear solution tailored to your scrap type and capacity needs.

Photos

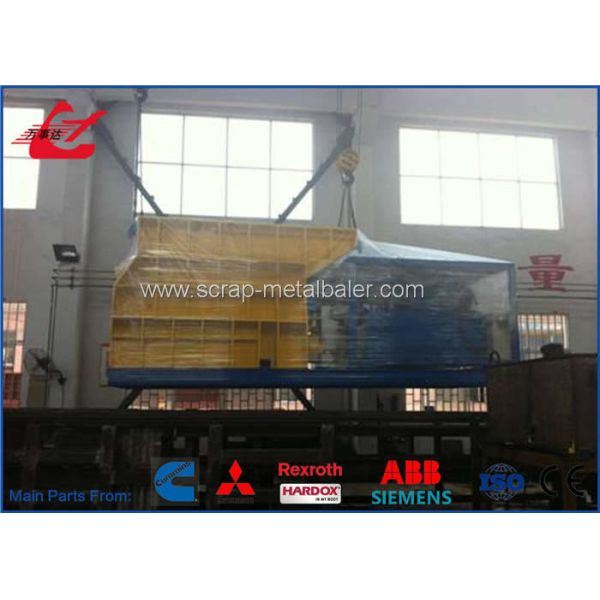

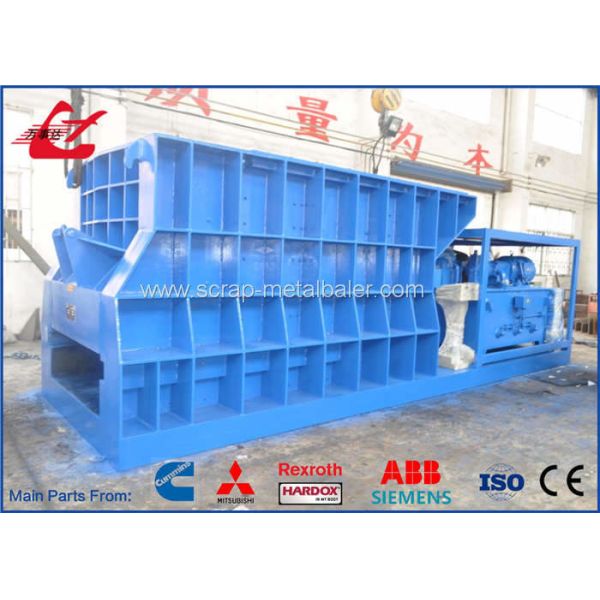

Hydraulic Scrap Shear with 400ton Cutting Force, 25MPa Pressure and Air Cooling System for Industrial Steel CuttingHydraulic Scrap Shear with 400ton Cutting Force, 25MPa Pressure and Air Cooling System for Industrial Steel Cutting
