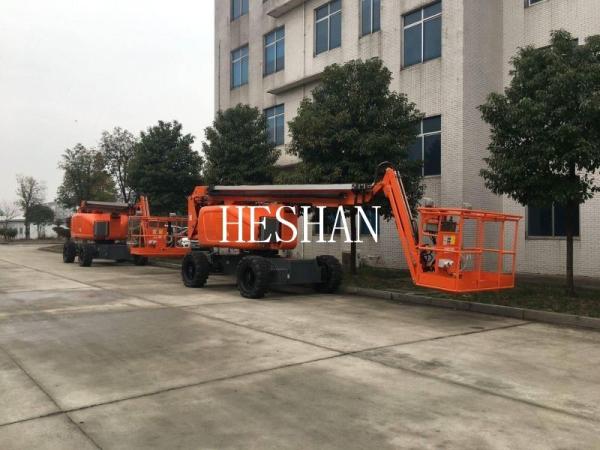

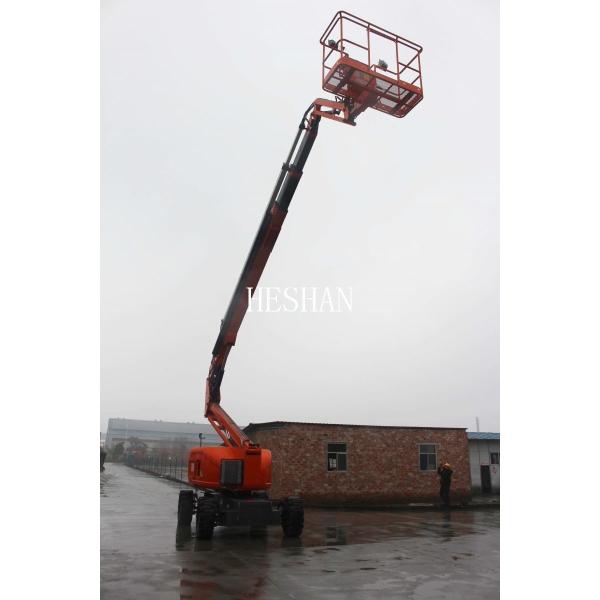

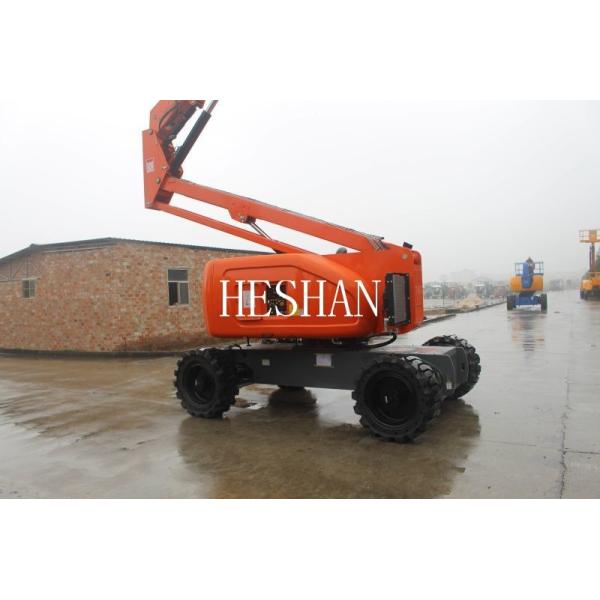

Self Propelled Articulated Boom Lift Hydraulic Truck Mounted Aerial Platform
Self Propelled Articulated Boom Lift Hydraulic Truck Mounted Aerial Platform
Self Propelled Articulated Boom Lift Hydraulic Truck Mounted Aerial Platform
Self Propelled Articulated Boom Lift Hydraulic Truck Mounted Aerial Platform
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Table Size :
1.83*0.76M
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power :
Diesel,Battery
Machinery Test Report :
Provided
Warranty :
1 Year
Rotation Angle :
360 degree
Lift Mechanism :
Articulated Lift
Weight :
2200kg
Platform Height :
20-80 ft
Power Source :
Gasoline, Diesel, Electric, Propane
Product Name :
Articulated Boom Lift
Rotatable Platform :
Yes
Description

China Articulated Towable Boom Lift Truck Mounted Hydraulic Cherry Picker Lift

Articulated Boom Lift is an aerial work platform, is a type of equipment that is widely used in various industries such as construction, maintenance, and warehouse operations. It allows workers to reach high heights safely and efficiently. The maximum working height of an electric boom lift can range from 40 to 135 feet, making it an ideal solution for tasks that require elevated access.
Self Propelled Articulated Boom Lift Hydraulic Truck Mounted Aerial PlatformSelf Propelled Articulated Boom Lift Hydraulic Truck Mounted Aerial Platform
Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

When it comes to aerial work, an engine-powered boom lift is the way to go. With the power and reach necessary for the best outdoor performance, our cherry pickers are the perfect choice. Whether you need to reach up and over obstacles or simply gain access to hard-to-reach areas, our articulating boom lifts are up to the task. And with world-class brands supplying our main components, you can trust in their safety and reliability.

Application Scenario: Tree Care and Landscaping
In the realm of tree care and landscaping, the Articulated Boom lift plays a vital role. It offers professionals a reliable means of accessing tree canopies for pruning, trimming, and maintenance. Its outreach and maneuverability enable efficient tree care operations, ensuring aesthetically pleasing landscapes while prioritizing worker safety.
Film and Event Production
In the film and event production industry, the Articulated Boom lift is an indispensable tool. It provides elevated camera platforms, allowing filmmakers to capture unique angles and perspectives. Moreover, it serves as a versatile asset for setting up lighting rigs, sound systems, and decorations during events. Its flexibility and ease of use contribute to memorable productions and events.
