Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG2.5-3
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD7800- USD9800 / UNIT
Payment Terms :
T/T
Supply Ability :
1200 units per year
Delivery Time :
30 days
Packaging Details :
Iron case or plywood case package
Load Weight :
2500kgs (as request)
Voltage :
208v/220v/240v/380v/415v/440v
Advantage :
Save more place
Lift Speed :
3-5m/min
Lift Height :
3m (as request)
Min Height :
0.75m
Lift System :
Hydraulic + motor System
Lift Device :
Hydraulic cylinders
Safety Fence :
4 sides
Safety Device :
explosion proof lock valve, emergency
Description

Product Description

The scissor car lift is an ideal car lift solution for fast and easy access underground garage.

Installed to replace an access ramp on private property, double deck scissor lifts are specially used for day to day residential application

as a solution for maximizing available space, storing automobiles, and providing security for exclusive and/or seasonal vehicles.

It’s also perfect for commercial parking operations looking to maximize their overall vehicle capacity.

Parameters:

  • load capacity : 2500kgs
  • platform size : 5.2m x 2.6m
  • travel height : 3m
  • structure : high-strength Manganese steel
  • power : 380v/3ph/50hz/5.5kw
  • Installation : underground , into a pit

Model list

Model load capacity Platform size Lift height Pit depth Power
SJG2.5-3 2.5T 5.2m×2.6m 3m 750mm 220v, 240v,380v or 400v
SJG2-6.5 2T 5.2m×2.8m 6.5m 800mm 220v, 240v,380v or 400v
SJG2.5-3.5 2.5T 5.2m×2.6m 3.5m 800mm 220v, 240v,380v or 400v
SJG2.5-5 2.5T 5.6m×3m 5m 800mm 220v, 240v,380v or 400v
SJG3-2.5 3T 5m×2.3m 2.5m 750mm 220v, 240v,380v or 400v
SJG3-3 3T 5.2m×2.6m 3m 800mm 220v, 240v,380v or 400v
SJG3-3.5 3T 5.6m×2.7m 3.5m 800mm 220v, 240v,380v or 400v
SJG5-10 5T 4.5m×2.5m 10m 1150mm 220v, 240v,380v or 400v
SJG8-2.5 8T 6.5m×4.5m 2.5m 850mm 220v, 240v,380v or 400v
SJG12-3 12T 5.5m×2.8m 3m 950mm 220v, 240v,380v or 400v
SJG15-4.5 15T 8m×2.2m 4.5m 1150mm 220v, 240v,380v or 400v
SJG20-5 20T 6m×3m 5m 1200mm 220v, 240v,380v or 400v

Advantages

  • Save space : the scissor automotive lift consumes no space when not in use, it’s an ideal option for small work spaces as well as large.
  • Safe: explosion-proof lock valve to avoid a sudden drop if emergency occurs.
  • The lift is fitted with protective side barriers to secure the car during elevation and descent.
  • Each car lift comes equipped with handrails, a kick plate, and a barrier chain across each end.
  • The platform is equipped with overload alarm and partial load protection device to ensure the safe lifting of the platform
  • The hydraulic system is equipped with an explosion-proof valve to prevent the platform from falling due to rupture of the oil cylinder
  • Manual lowering device after power failure
  • Scissor arms are made of high-strength manganese steel: high strength, no deformation, to ensure long-term safety

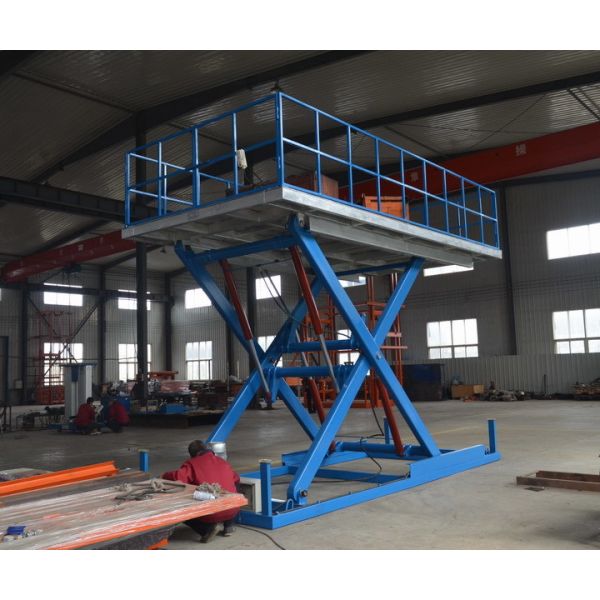

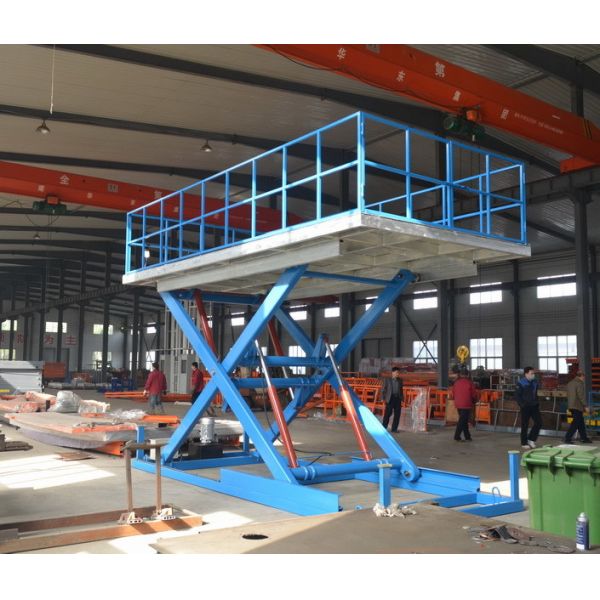

Production showing:

Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift TableUnderground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift TableUnderground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table

Packing:

Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table

Certificates:


Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table

Customers visiting:

Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
