Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG2.5-2.5
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD3980- USD8800 / UNIT
Supply Ability :
1200 units per year
Delivery Time :
30 days
Packaging Details :
Iron case or plywood case package
Application :
car lifts for home garages
Design :
Scissor car lift
load capacity :
2500kgs
lift height :
2500mm
Warranty :
24 Months
Lift System :
Hydraulic System
power :
220v,240v,380v or other
color :
orange, grey, blue or optional
Description

2018 hot sales car lifts for home garages hydraulic scissor car lift with CE

Parameters:

1) Load capacity: 2500kgs
2) Platform size: 5.6m x 2.6m
3) Lift height: 2.5m
4) Power: 380v/50hz/3ph/4.0kw (or 220v)
5) Control system: 1 control box, 1 control panel, 2 remotes
6) Control buttons: up, down, stop, emergency
7) Safety device: explosion-proof lock valve
8) Standard: CE, ISO9001

Application:

- The hydraulic scissor car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

- Operation is easy. There are 3 sets control system installed on the car lift, 1 control box, and 1 hand controller, and 2 remotes.

Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color

The models we supplied for clients:

MODEL LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V
The Hydraulic scissor car lift can be customized as your detailed size.

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/4.0Kw

4) High Precision Hydraulic Cylinder: 90*4sets

5) Piston Rod: 45*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the cars above the platform.

3) The limit switch system helps Hydraulic scissor car lift to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the Hydraulic car scissor lift are passed 1.2 times loading test before leaving factory.

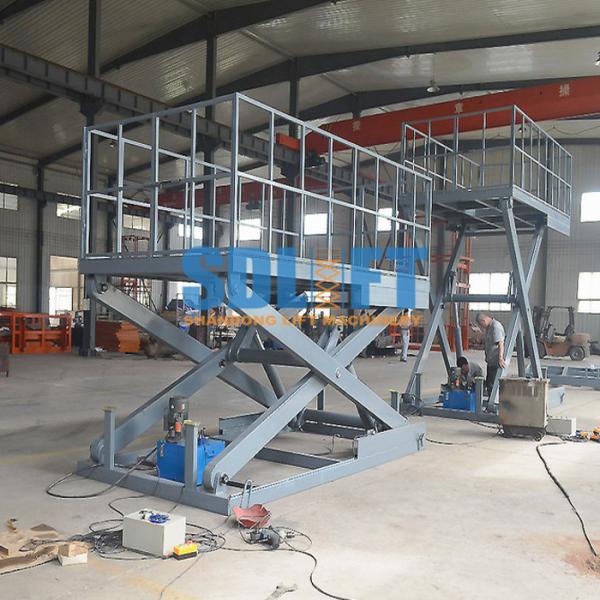

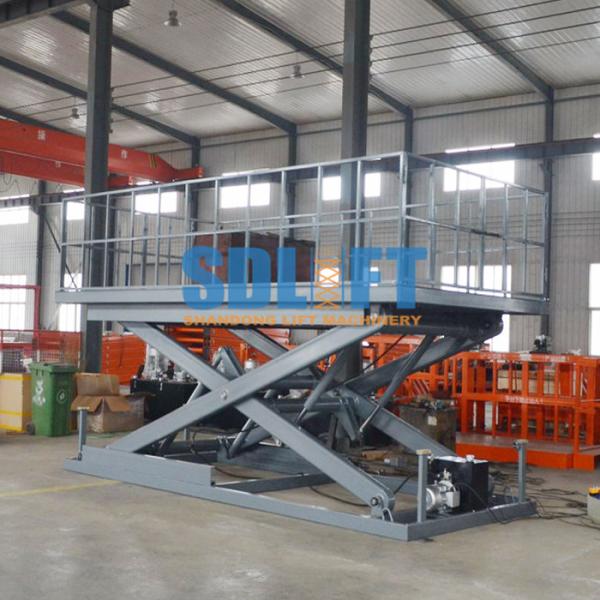

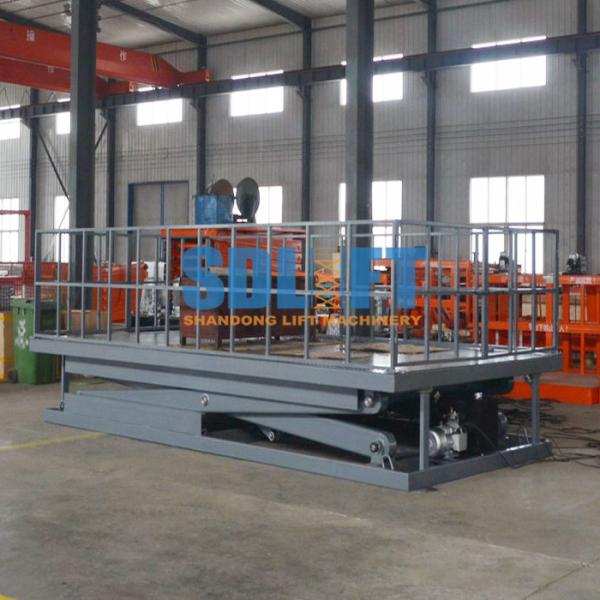

Production Pictures:

Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi ColorEasy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi ColorEasy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi ColorEasy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color

Packaging & Shipping:

Easy Operation Vehicle Scissor Lift Car Lifts For Home Garage Multi Color
