5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG5-3.5
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD2200- USD4800 / UNIT
Payment Terms :
T/T
Supply Ability :
1200units per year
Delivery Time :
30 days after deposit
Packaging Details :
Iron case or plywood case package
Application :
Hydraulic Electric Home Scissor Lift Platform
Lift height :
3500mm
Load capacity :
5000kgs
Lift Mechanism: Scissor Lift Lift Drive / Actuation: Hydraulic Power: 3.0kw Rated Loading :
scissor lift
Handrail :
2 sides or 4 sides
Color :
red, yellow, grey blue or Optional
Safe Device :
Explosion-Proof Lock Valve
Control mode :
Control panel and control box
Feature :
Easy Operation Safety Convenience
Description

5T 3.5M Hydraulic Scissor Lift Platform in stock for Discount Promotion:

Application:

· The stationary hydraulic scissor cargo lift platform can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

· Load capacity: 5000kg

. Lift height: 3500mm

. Platform size: 4000*1500mm

5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform

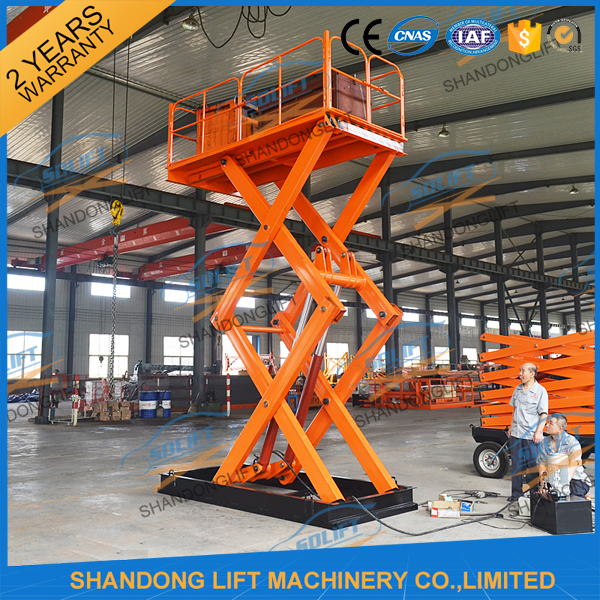

The photo of this lift in our workshop:

5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform

Parts Showing:

5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform

Configuration:

1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box below, 1 hand controller above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above the scissor lift .
3) Equipped 4 guide rails, to ensure the hydraulic scissor lift runs more smoothly and steadily.
4) The limit switch system helps the hydraulic scissor lift table to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.

Installation Showing:

Application fields
  • Warehouse
  • Feeding of processing machinery(in wood ,plastic,glass,steel)
  • Conveyor system,packaging system.
  • Loading bay.
  • Loading and unloading pallets for aircraft.
  • Connection between different stages.
  • Application fields

5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform

5T 3.5M Stationary Hydraulic Scissor Lift , Scissor Lifting Platform
