Customized Automotive Scissor Lift Villa Basement Lift For Parking
Customized Automotive Scissor Lift Villa Basement Lift For Parking
Customized Automotive Scissor Lift Villa Basement Lift For Parking
Customized Automotive Scissor Lift Villa Basement Lift For Parking
Customized Automotive Scissor Lift Villa Basement Lift For Parking
Customized Automotive Scissor Lift Villa Basement Lift For Parking
Customized Automotive Scissor Lift Villa Basement Lift For Parking
Customized Automotive Scissor Lift Villa Basement Lift For Parking
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG3-4.8
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD3980- USD8800 / UNIT
Supply Ability :
3600 units per year
Delivery Time :
5-20 work days
Packaging Details :
Iron case or plywood case package
Lifting Capacity :
3T
Travel Height :
4.8m
Platform size :
5.6m x 2.5m
Application :
Home Garage Scissor Car Lift
Lift System :
Hydraulic System
Safe Device :
Explosion-Proof Lock Valve
Power Supply :
220V/240V/380V/415V (as request)
Material :
high strength Manganese Steel
Color :
red, grey, yellow, blue, or as your optional
Description

Customized Scissor Car Lift Villa Basement Lift for Parking 3T Scissor Car Lift:

Application:

The Scissor Car Lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

Operation is easy. There are 2 sets control system installed on the home car lift Hydraulic Car Scissor Lifts , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

Parameter:

Load capcity 3000kgs
Lift height 4800mm
Platform size 5600mm x 2500mm
Power 380v / 50hz/ 3ph / 5.5kw
Lift system hydraulic motor pump system
Lift Structure high strength Mn steel scissors structure

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Car Lift for sale Hydraulic Car Scissor Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Car Lift for sale Hydraulic Car Scissor Lifts are passed 1.2 times loading test before leaving factory.

Configuration:

1) Platform Material: rectangular tube +6mm checkered iron

2) Scissor material: high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 4sets

5) Piston Rod: hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

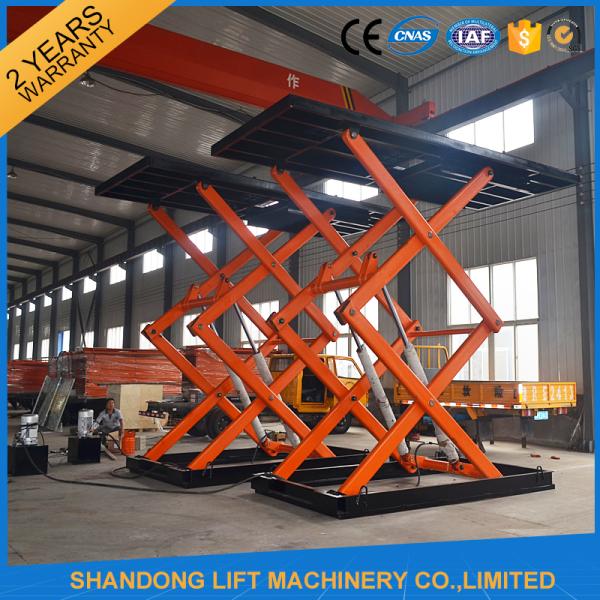

Scissor Car Lift Showing:

Customized Automotive Scissor Lift Villa Basement Lift For ParkingCustomized Automotive Scissor Lift Villa Basement Lift For Parking

Packaging & Shipping:

Customized Automotive Scissor Lift Villa Basement Lift For ParkingCustomer visiting:

Customized Automotive Scissor Lift Villa Basement Lift For Parking

Our services:

1) The Car Lift for sale Hydraulic Car Scissor Lift can be done as your request

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation , using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
