Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Specifications
Certification :
CE, ISO 9001
Structure :
Portal Frame
Supply Ability :
10000
Adjustable Range :
1.8m - 3.2m / 2.2m - 3.9m / 2.5m - 4.5m
Price :
$680
Finish :
Galvanized
Brand Name :
xsh
Outer Tube Diameter :
60mm / 56mm / 48mm
MOQ :
1
Impact Strength :
High (Structural steel)
Payment Terms :
T/T
Material Grade :
Q235 Steel / High-Tensile Steel
Delivery Time :
15
Rated Load Capacity :
500 kg (1100 lbs)
Place of Origin :
china
Material :
Steel
Description
Electric Lifting Scaffolding Mobile Platform 500kg Load Remote Control
Product Overview

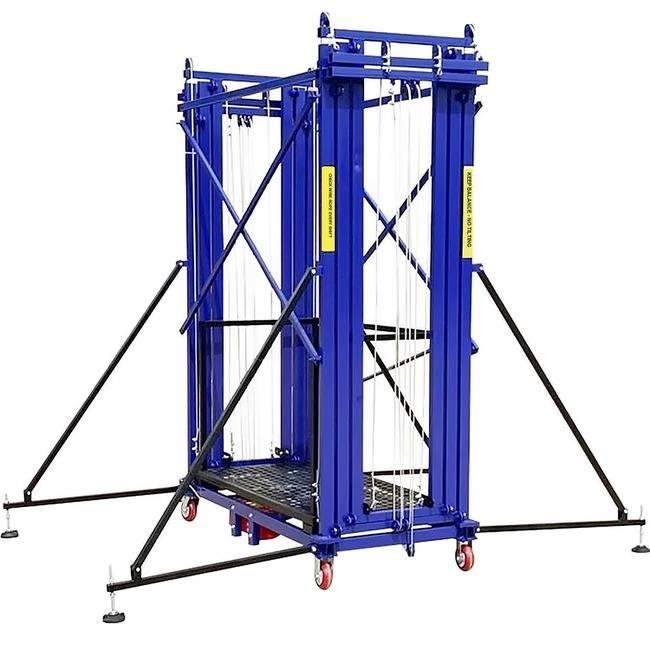

The electric lifting scaffolding is an advanced motorized aerial work platform engineered for high-altitude installation, maintenance, and interior construction. Built with industrial-grade national standard square steel tubing and powered by a high-torque pure copper motor, this electric scaffolding platform delivers smooth, steady vertical elevation. It replaces traditional manual frame scaffolding, significantly reducing labor intensity while maximizing operational safety and job site efficiency.

Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Core Features and Advantages

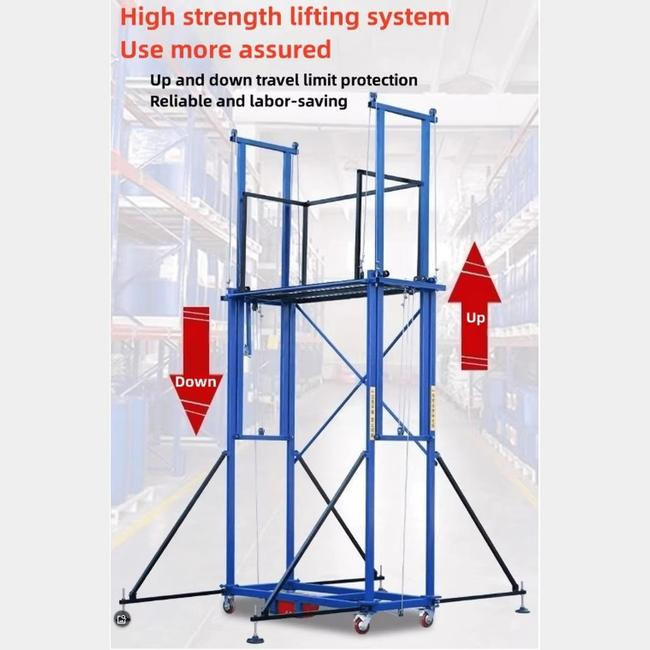

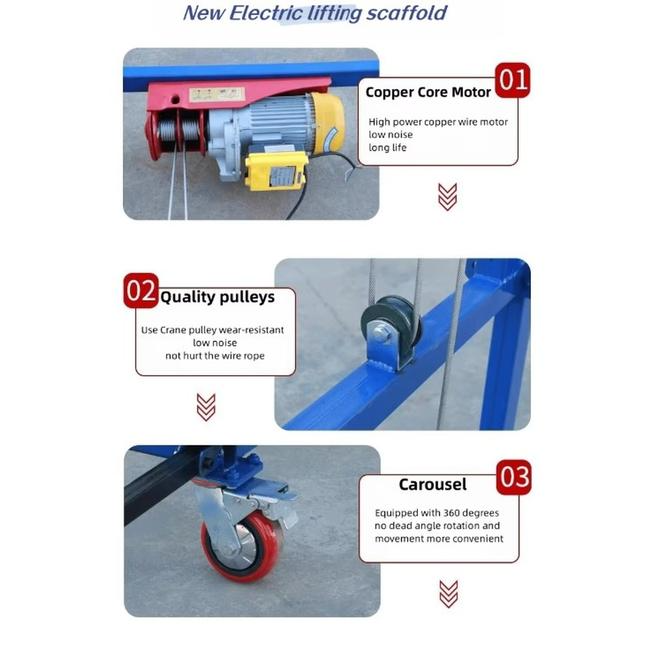

Equipped with a wire teleoperation remote controller, workers can effortlessly manage lifting and lowering movements with one hand. The integrated upper and lower travel limit switch system automatically cuts power at designated heights to prevent over-travel risks. High-strength wear-resistant steel pulleys coupled with multi-strand galvanized steel wire ropes guarantee balanced, tilt-free lifting performance under heavy loads.

Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Technical Specifications
Parameter Specification Details
Product Type Electric Lifting Scaffolding / Mobile Scaffolding Platform
Rated Load Capacity 500 kg (1100 lbs)
Lifting Height Customizable (Standard models up to 8 meters)
Motor Type & Power Pure Copper Wire Motor, 500W High Efficiency
Frame Material National Standard Thickened Square Steel Tube
Wire Rope Professional Galvanized High-Tension Steel Cable
Mobility & Wheels 360-Degree Swivel Universal Wheels with Locking Brakes
Safety Protection Dual Limit Switches + Outrigger Support Legs + Anti-tilt Guide
Control Mode Wired Handheld Remote Control (Teleoperation)
Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Versatile Applications

This motorized scaffolding lift is ideal for indoor and outdoor operations including ceiling decoration, commercial lighting installation, building facade maintenance, billboard setup, and warehouse inventory management. The compact frame easily passes through standard commercial doorways and elevators, while the 360-degree lockable swivel wheels allow flexible repositioning by a single operator.

Electric Lifting Scaffolding Mobile Platform with 500kg Load Capacity and Remote Control Galvanized Finish
Safety and Quality Assurance

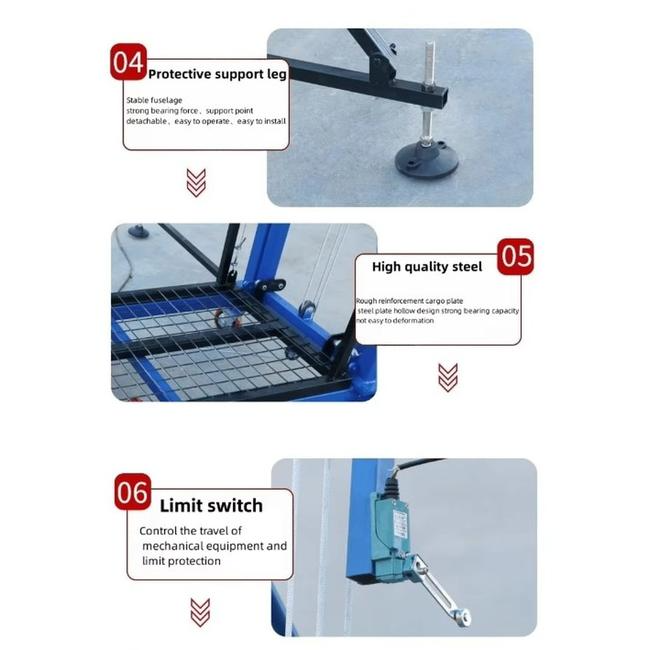

Four detachable diagonal outrigger support legs expand the chassis footprint, ensuring maximum stability on uneven ground. The reinforced hollow cargo deck prevents debris accumulation while supporting dual operators and heavy equipment securely. Every unit undergoes strict dynamic load and wire rope tension testing before dispatch to ensure dependable site performance.
